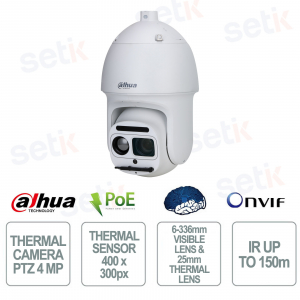

Dahua TPC-SD8441B-B25Z56 4MP AI Thermal PTZ Camera 56x Zoom IR 150m IP66 Two-Way Audio

Dahua TPC-SD8441B-B25Z56 4MP AI Thermal PTZ Camera 56x Zoom IR 150m IP66 Two-Way Audio

 
Optic calculation
-56%

TPC-SD8441B-B25Z56 - is a PTZ thermal camera from the Ultra series designed for advanced perimeter protection and critical infrastructure monitoring. It integrates a 400 × 300 VOx thermal sensor with 25 mm thermal lens and a 4 MP visible camera with 6-336 mm lens and powerful 56x optical zoom , ensuring detailed images and accurate long-distance detection. Advanced Artificial Intelligence functions include heat source detection, smoke , human/vehicle classification, boat detection , engineering truck detection and automatic tracking. Thanks to 360° PTZ , two-way audio , IR illumination up to 150 meters , automatic wiper with rain sensor and IP66 protection, it offers high performance even in the most difficult environments. Dahua

Technical Data Sheet

Artikel-Nr.: TPC-SD8441B-B25Z56

Marke: Dahua

EAN: 6923172504319

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TPC-SD8441B-B25Z56 | POE PTZ THERMAL IP CAMERA WITH 6-336mm VARIFOCAL LENS - 25mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - SMOKE AND HEAT DETECTION


Dahua

The Dahua TPC-SD8441B-B25Z56 is a PTZ thermal camera from the Ultra series designed for advanced perimeter protection and critical infrastructure monitoring. It combines a 400 × 300 VOx thermal sensor with a 25 mm thermal lens and a 4 MP visible camera with a 6-336 mm lens and powerful 56x optical zoom , ensuring high-precision images even at long distances. Advanced Artificial Intelligence functions include smoke detection, heat source detection, human/vehicle classification, boat detection , engineering truck detection and automatic target tracking. 360° PTZ , two-way audio , IR illumination up to 150 meters , automatic wiper with rain sensor and IP66 protection complete the features, ideal for professional applications in complex outdoor environments.

Main specifications:

- 400×300 VOx thermal sensor

- 4 MP CMOS optical sensor

- 25mm thermal optics

- Visible optics 6-336 mm

- 56x optical zoom

- AI with smoke and heat detection

- Man/vehicle classification

- Two-way audio

- PTZ 360°

- IR illumination 150 m

- IP66 protection

Further details

✅ Optics :
 The visible camera integrates a 6-336 mm motorized lens with a powerful 56x optical zoom , allowing monitoring of very large areas and precise identification of people, vehicles and critical details even at great distances.
✅ Thermal Optics :
 The TPC-SD8441B-B25Z56 model is equipped with a 25mm thermal optic , designed for perimeter security and advanced thermal detection applications, with the ability to detect heat sources up to 1,500 meters .
✅ Resolution:
The combination of a 400 × 300 pixel thermal sensor and a 4 MP (2688 × 1520) optical camera ensures detailed images and accurate thermographic analysis for professional surveillance.
✅ Thermal sensor:
The VOx Uncooled Focal Plane Detector with NETD sensitivity below 35 mK ensures detection of the smallest temperature changes, improving the identification of anomalies and potential threats.
✅ PTZ Camera:
The 360° PTZ system with tilt from -27° to +90° , up to 300 presets , automatic tours, custom patterns and 3D Positioning , offers complete coverage and precise control of the monitored area.
✅ Artificial Intelligence:
Advanced AI functions include Human & Vehicle Classification , Boat Detection , Engineering Truck Detection , smoke and heat source detection, reducing false alarms and increasing safety effectiveness.
✅ Functions:
Supports tripwire , intrusion detection , target tracking , target filtering , cold/hot spot trace , Panoramic PTZ , automatic wiper with rain sensor and intelligent monitoring for critical infrastructure

✅ Two-way audio:
The Two-Way Audio function enables real-time communications between the operator and the monitored site, improving event management and active deterrence activities.
✅ Network Camera:
Compatible with ONVIF , RTSP , HTTPS , IPv4/IPv6 , SNMP , QoS , FTP and other professional standards protocols, it ensures perfect integration with VMS and advanced video surveillance platforms.
✅ Doors:
It features RJ-45 10/100 Base-T port , 7 alarm inputs , 2 alarm outputs , 1 audio input , 1 audio output , RS-485 interface and BNC analog video output, offering maximum integration flexibility.
✅ PoE:
The device uses 24-57 VDC power and does not support standard PoE; it is designed for professional installations that require high power reliability and consistent performance even in critical environments.

Technical data sheet

TPC-SD8441B-B25Z56
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 400 (H) × 300 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) <35 mk="" f="" 1="" 0="" td="">
Focal Length 25 mm
Field of View H: 11.0°; V: 8.2°
Thermal Focus Control Fixed-focal
Digital Detail Enhancement (DDE) Yes
Digital Zoom 19 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/2.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL
Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR Yes
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control Car
Image Flip Yes
Exposure Compensation Yes
Visible Focus Control Auto/Semi-auto/Manual
Focal Length 6 mm–336 mm
Zoom Speed ＜8.8 s
Field of View H: 64.4°–1.28°
V: 38.37°–0.72°
Close Focus Distance 1 m–10 m (3.28 ft–32.81 ft)
Optical Zoom 56×
Openings F1.5–F5.3
Illuminator On/Off Control Auto; manual
Illumination Distance 150 m (492.13 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Structure
Product Dimensions 300 mm × 300 mm × 500 mm (11.81" × 11.81" × 19.69") (L × W × H)
Packaging Dimensions 435 mm × 435 mm × 666 mm (17.13" × 17.13" × 26.22") (L × W × H)
Net Weight ≤13 kg (28.66 lb)
Gross Weight ≤16 kg (35.27 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
