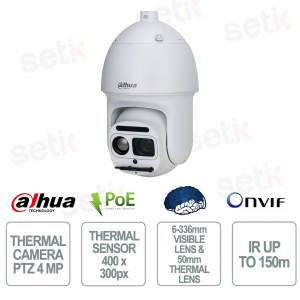

Dahua TPC-SD8441B-B50Z56 4MP AI Thermal PTZ Camera 56x Zoom IR 150m IP66 Two-Way Audio

Dahua TPC-SD8441B-B50Z56 4MP AI Thermal PTZ Camera 56x Zoom IR 150m IP66 Two-Way Audio

 
Optic calculation
-56%

TPC-SD8441B-B50Z56 - is a professional PTZ thermal camera from the Ultra series designed for ultra-long range perimeter protection and critical infrastructure monitoring. It combines a 400 × 300 VOx thermal sensor with a 50 mm thermal lens and a 4 MP visible camera with a 6-336 mm lens and a powerful 56x optical zoom , offering high performance in detection, recognition and target identification. Advanced Artificial Intelligence functions include smoke detection, heat source detection, human/vehicle classification, boat detection , engineering truck detection and automatic tracking. The 360° PTZ solution, two-way audio , IR illumination up to 150 meters , automatic wiper with rain sensor and IP66 protection complete the solution, ensuring maximum reliability even in the most challenging environments. Dahua

Technical Data Sheet

Artikel-Nr.: TPC-SD8441B-B50Z56

Marke: Dahua

EAN: 6923172504326

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TPC-SD8441B-B50Z56 | POE PTZ THERMAL IP CAMERA WITH 6-336mm VARIFOCAL LENS - 50mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - SMOKE AND HEAT DETECTION


Dahua

The Dahua TPC-SD8441B-B50Z56 is a PTZ thermal camera from the Ultra series designed for ultra-long-range perimeter protection and critical infrastructure monitoring. It integrates a 400 × 300 VOx thermal sensor with 50 mm thermal lens and a 4 MP visible camera with 6-336 mm lens and powerful 56x optical zoom , ensuring excellent target detection, recognition and identification performance. The advanced Artificial Intelligence functions include smoke detection, heat source detection, human/vehicle classification, boat detection , engineering truck detection and automatic tracking. Thanks to 360° PTZ , two-way audio , IR illumination up to 150 meters , automatic wiper with rain sensor and IP66 protection, it ensures maximum reliability even in the most difficult environmental conditions.

Main specifications:

- 400×300 VOx thermal sensor

- 4 MP CMOS optical sensor

- 50mm thermal optics

- Visible optics 6-336 mm

- 56x optical zoom

- AI with smoke and heat detection

- Man/vehicle classification

- Two-way audio

- PTZ 360°

- IR illumination 150 m

- IP66 protection

Further details

✅ Optics :
 The visible camera integrates a 6-336 mm motorized lens with a powerful 56x optical zoom , allowing monitoring of very large areas and precise identification of people, vehicles and critical details even at great distances.
✅ Thermal Optics :
 The TPC-SD8441B-B50Z56 model features a 50mm thermal optic , designed for long-range thermal detection, with the ability to detect heat sources up to 3,000 meters , ensuring high performance even in total darkness, fog or adverse weather conditions.
✅ Resolution:
The combination of a 400 × 300 pixel thermal sensor and a 4 MP (2688 × 1520) optical camera ensures detailed images and accurate thermographic analysis for professional surveillance.
✅ Thermal sensor:
The VOx Uncooled Focal Plane Detector with NETD sensitivity below 35 mK ensures detection of the smallest temperature changes, improving the identification of anomalies and potential threats.
✅ PTZ Camera:
The 360° PTZ system with tilt from -27° to +90° , up to 300 presets , automatic tours, custom patterns and 3D Positioning , offers complete coverage and precise control of the monitored area.
✅ Artificial Intelligence:
Advanced AI functions include Human & Vehicle Classification , Boat Detection , Engineering Truck Detection , smoke and heat source detection, reducing false alarms and increasing safety effectiveness.
✅ Functions:
Supports tripwire , intrusion detection , target tracking , target filtering , cold/hot spot trace , Panoramic PTZ , automatic wiper with rain sensor and intelligent monitoring for critical infrastructure

✅ Two-way audio:
The Two-Way Audio function enables real-time communications between the operator and the monitored site, improving event management and active deterrence activities.
✅ Network Camera:
Compatible with ONVIF , RTSP , HTTPS , IPv4/IPv6 , SNMP , QoS , FTP and other professional standards protocols, it ensures perfect integration with VMS and advanced video surveillance platforms.
✅ Doors:
It features RJ-45 10/100 Base-T port , 7 alarm inputs , 2 alarm outputs , 1 audio input , 1 audio output , RS-485 interface and BNC analog video output, offering maximum integration flexibility.
✅ PoE:
The camera uses professional 24-57 VDC power with a maximum power consumption of 50 W ; it does not support standard PoE and is designed for high-performance installations and mission-critical security applications.

Technical data sheet

TPC-SD8441B-B50Z56
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 400 (H) × 300 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) <35 mk="" f="" 1="" 0="" td="">
Focal Length 50 mm
Field of View H: 5.5°; V: 4.1°
Thermal Focus Control Fixed-focal
Close Focus Distance 1 m (3.28 ft)
Digital Detail Enhancement (DDE) Yes
Digital Zoom 19 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/2.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL
Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR Yes
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control Car
Image Flip Yes
Exposure Compensation Yes
Visible Focus Control Auto/Semi-auto/Manual
Focal Length 6 mm–336 mm
Zoom Speed ＜8.8 s
Field of View H: 64.4°–1.28°
V: 38.37°–0.72°
Close Focus Distance 1 m–10 m (3.28 ft–32.81 ft)
Optical Zoom 56×
Openings F1.5–F5.3
Illuminator On/Off Control Auto; manual
Illumination Distance 150 m (492.13 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression Thermal:
Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default)
Sub stream: 640 × 512; 320×256; 640 × 512 (default)
Visible:
Main stream:4MP (2688×1520); 4MP (2560×1440); 2MP (1920×1080); 720p (1280 × 720); D1 (704 × 576); 4MP (2560 × 1440) (default);
Sub stream: 2MP (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); CIF (352 × 288) (default)
Video Frame Rate Thermal (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Visible (50 Hz):
Main stream: 1 fps–50 fps, 50 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Thermal (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Visible (60 Hz):
Main stream: 1 fps–60 fps, 60 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Audio Compression G.711a; G.711mu; AAC
Image Encoding Format JPEG
PTZ
Pan/Tilt Range Pan: 0° to 360° endless
Tilt: –27° to +90°
Manual Speed Control Pan: 0.1°/s –200°/s
Tilt: 0.1°/s –120°/s
Preset Speed Pan: 240°/s
Tilt: 200°/s
Presets

300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 2
Power-off Memory Yes
Privacy Masking 4 by default
Idle Motion Presets; pattern; tours; Pan; scan
Timing Task Presets; pattern; tours; Pan; scan
Position Display On/Off
Wiper Auto rain sensing. Supports setting wiper running times, frequency, and period.
3D Positioning Yes
Function
Two-way Audio Yes
Network Protocol IPv4/IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ONVIF
Region of Interest (RoI) Yes (customizable)
Storage FTP; Micro SD card (optional)
Micro SD Card (Max.) 512 GB
Interoperability ONVIF; CGI; Dahua SDK
Browser IE: IE8 and later
Chrome: 42 and earlier
Firefox: 42 and earlier
User/Host Up to 20 (total bandwidth: 64 MB)
Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
User Management Up to 20 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
PIP Yes
Intelligence
Heat Detection Yes
Cold/Hot Spot Trace Yes
IVS (Perimeter Protection) Yes. Supports tripwire and intrusion
Target Distinction Human/Vehicle Classification
Target Tracking Yes
Target Filtering Yes
Smoke Detection Yes
Boat Tracking Yes
Engineering Truck Detection Yes
Panoramic PTZ Yes
Port
Analog Output 1.0V[pp]/75 Ω; PAL or NTSC; Portable BNC
Network Port 1 × RJ-45 (10/100 Base-T)
Alarm Input 7
Alarm Output 2
Audio Input 1
Audio Output 1
RS-485 1
Power
Power Supply 24–57 VDC
Power Consumption Basic: 30 W
Max: 50 W (illuminator)
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤95%
Storage Temperature –50 °C to +80 °C (–58 °F to +176 °F)
Physical Characteristics
Protection IP66
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Structure
Product Dimensions 300 mm × 300 mm × 500 mm (11.81" × 11.81" × 19.69") (L × W × H)
Packaging Dimensions 435 mm × 435 mm × 666 mm (17.13" × 17.13" × 26.22") (L × W × H)
Net Weight ≤13 kg (28.66 lb)
Gross Weight ≤16 kg (35.27 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
