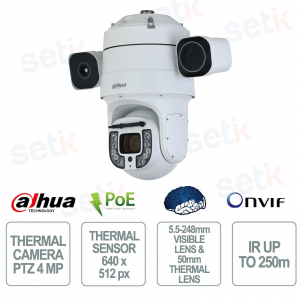

Dahua TPC-SDA8641-B25Z45 4MP Starlight AI PTZ Thermal Camera 45x Zoom IR 250m IP66 Two-Way Audio

Dahua TPC-SDA8641-B25Z45 4MP Starlight AI PTZ Thermal Camera 45x Zoom IR 250m IP66 Two-Way Audio

 
Optic calculation
-56%

TPC-SDA8641-B25Z45 - is an intelligent PTZ thermal camera designed for advanced perimeter protection and professional monitoring of large areas. It integrates a 640 × 512 VOx thermal sensor with 25 mm thermal lens and a 4 MP Starlight visible camera with 5.5-248 mm lens and 45x optical zoom , offering detailed images and precise detection in any condition. Thanks to intelligent tracking linked between thermal and visible channels , Artificial Intelligence functions for human/vehicle classification, tripwire , intrusion detection and boat detection , it guarantees effective and reliable surveillance. The equipment also includes two-way audio , light and sound alarm , IR illumination up to 250 meters , independent dual PTZ and IP66 protection, ideal for critical infrastructures and industrial sites. Dahua

Technical Data Sheet

Artikel-Nr.: TPC-SDA8641-B25Z45

Marke: Dahua

EAN: 6923172535269

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TPC-SDA8641-B25Z45 | POE PTZ THERMAL IP CAMERA WITH 5.5-248mm VARIFOCAL LENS - 25mm THERMAL LENS - 4 MP STARLIGHT - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - SMOKE AND HEAT DETECTION


Dahua

The Dahua TPC-SDA8641-B25Z45 is an intelligent PTZ thermal camera designed for advanced perimeter protection and critical infrastructure monitoring. It integrates a 640 × 512 VOx thermal sensor with 25 mm thermal lens and a 4 MP Starlight visible camera with 5.5-248 mm lens and powerful 45x optical zoom , offering detailed images and accurate detection even at long distances. Thanks to linked tracking between thermal and visible channels , Artificial Intelligence functions with human/vehicle classification, tripwire , intrusion detection and boat detection , it guarantees efficient and precise surveillance. The equipment also includes two-way audio , sound and light alarm , IR illumination up to 250 meters , independent dual PTZ and IP66 protection to operate in any environmental conditions.

Main specifications:

- VOx thermal sensor 640 × 512

- 4 MP Starlight Camera

- 25mm thermal optics

- Visible optics 5.5-248 mm

- 45x optical zoom

- AI with human/vehicle classification

- Tripwire and Intrusion Detection

- Boat Detection

- Thermal-visible tracking

- Two-way audio

- Sound and light alarm

- IR illumination 250 m

- IP66 protection

Further details

✅ Optics :
 The visible camera integrates a 5.5-248 mm motorized lens with a powerful 45x optical zoom , ideal for monitoring large areas and for the precise identification of people, vehicles and critical details even at long distances.
✅ Thermal Optics :
 The TPC-SDA8641-B25Z45 features a 25mm thermal optic with an optimized field of view for perimeter protection and thermal anomaly detection, enabling reliable monitoring in any light or weather conditions.
✅ Resolution:
The combination of a 640 × 512 pixel thermal sensor and a 4 MP (2560 × 1440) visible camera ensures extremely detailed images and high precision in thermographic and video analysis.
✅ Thermal sensor:
The VOx Uncooled Focal Plane Detector sensor with NETD sensitivity less than 35 mK detects minimal temperature changes, allowing the rapid identification of heat sources, intrusions and anomalous situations.
✅ PTZ Camera:
The solution integrates a dual independent PTZ system, with thermal movement up to 190° and visible camera with 360° rotation, supporting up to 300 presets , automatic tours and intelligent tracking for complete coverage.
✅ Artificial Intelligence:
Advanced AI features include Human & Vehicle Classification , Boat Detection , intelligent target filtering, and advanced video analytics to reduce false alarms and improve perimeter security.
✅ Functions:
It supports tripwire , intrusion detection , cold/hot spot trace , multi-scene target tracking , panoramic tracking and automatic linking between thermal and visible channels for highly efficient surveillance.

✅ Two-way audio:
The Two-Way Audio function enables real-time communication between the operator and the monitored area, improving event management and remote control activities.
✅ Sound alarm:
The system integrates an audible and visual alarm that allows for an immediate response to detected events, increasing the effectiveness of active deterrence and site security.
✅ Network Camera:
Compatible with HTTPS , RTSP , IPv4/IPv6 , SNMP , QoS , FTP , DDNS and other professional standard protocols, it ensures perfect integration with advanced VMS software and video surveillance systems.
✅ Doors:
It features 1 RJ-45 10/100 Base-T port , 7 alarm inputs , 2 alarm outputs , 1 audio input , 1 audio output and 1 RS-485 port , offering wide possibilities for integration with professional security systems.
✅ PoE:
The camera uses professional 36 VDC ±25% power with a maximum consumption of 58 W ; it does not support standard PoE and is designed for high-performance installations in critical environments.

Technical data sheet

TPC-SDA8641-B25Z45
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 400 (H) × 300 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) <35 mk="" f="" 1="" 0="" td="">
Focal Length 25 mm
Field of View H: 24.6°; V: 19.8°
Thermal Focus Control Fixed-focal
Close Focus Distance 1 m (3.28 ft)
Digital Detail Enhancement (DDE) Yes
Digital Zoom 19 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/1.8" CMOS
Max. Resolution 2560 (H) × 1440 (V)
Pixel 4 MP
Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL
Min. Illumination Color: 0.001 [email protected]
Black & white: 0.0001 [email protected]
0 lux (IR on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR Yes
HLC Yes 36 VDC/5A ± 25%
Power Consumption Basic: 30 W
Max: 58 W (illuminator)
Environment
Operating Temperature –40 °C to +65 °C (–40 °F to +149 °F)
Operating Humidity ≤95%
Physical Characteristics
Protection IP66
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Structure
Product Dimensions 484.8 mm × 267 mm × 476.5 mm (19.09" × 10.51" × 18.76") (L × W × H)
Packaging Dimensions 708 mm × 380 mm × 580 mm (27.87" × 14.96" × 22.83") (L × W × H)
Net Weight 15.9 kg (35.05 lb)
Gross Weight 21.5 kg (47.40 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
