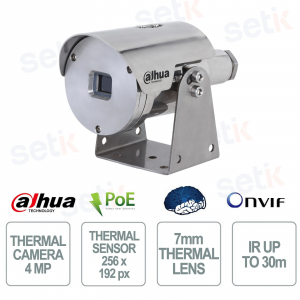

Dahua TPC-AEBF5201-TB7-DW-S4-G PoE IP68 ATEX IECEx 7mm AI Thermal Imaging Camera

Dahua TPC-AEBF5201-TB7-DW-S4-G PoE IP68 ATEX IECEx 7mm AI Thermal Imaging Camera

 
Optic calculation
-56%

TPC-AEBF5201-TB7-DW-S4-G - is an explosion-proof thermal camera designed for monitoring industrial plants, refineries and areas with explosive atmospheres. It integrates a 256 × 192 VOx thermal sensor with 7 mm thermal lens , offering thermal anomaly detection and temperature measurement up to 550°C with ±2°C accuracy. Thanks to the Heat Detection and Cold/Hot Spot Trace functions, it allows for the timely identification of overheating and potential risks. Equipped with PoE/ePoE support, ATEX/IECEx certifications, IP68 protection and advanced network protocols, it guarantees reliability, safety and business continuity in the most critical environments. Dahua

Technical Data Sheet

Artikel-Nr.: TPC-AEBF5201-TB7-DW-S4-G

Marke: Dahua

EAN: 6923172586155

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TPC-AEBF5201-TB7-DW-S4-G | BOXED POE THERMAL IP CAMERA WITH 7mm THERMAL LENS - 4 MP - ARTIFICIAL INTELLIGENCE - TEMPERATURE MEASUREMENT UP TO 550°C


Dahua

The Dahua TPC-AEBF5201-TB7-DW-S4-G is an explosion-proof thermal camera designed for monitoring petrochemical plants, refineries and industrial environments with risk of explosion. Equipped with a 256 × 192 VOx thermal sensor and 7 mm thermal lens , it offers precise thermal anomaly detection and temperature measurement up to 550°C with ±2°C accuracy. The Heat Detection and Cold/Hot Spot Trace functions allow for the timely identification of overheating and potential hazards, improving operational safety. Thanks to PoE/ePoE support, ATEX/IECEx certification, IP68 protection and compatibility with major network protocols, it represents a reliable solution for professional thermographic monitoring.

Main specifications:

- VOx thermal sensor 256 × 192

- 4 MP camera

- 7mm thermal optics

- Heat Detection

- Cold/Hot Spot Trace

- 18 color palettes

- PoE and ePoE

- RJ-45 10/100 Mbps port

- MicroSD up to 256 GB

- ATEX/IECEx certification

- IP68 protection

- ONVIF compatibility

Further details

✅ Thermal Optics :
 The 7mm thermal optic allows a detection distance of up to 894 metres for vehicles and 292 metres for people , proving particularly effective for preventive control and perimeter security in risky environments.
✅ Resolution:
The thermal sensor offers a resolution of 256 × 192 pixels , with streaming up to 1280 × 960 , ensuring detailed and easily interpretable thermal images for temperature analysis.
✅ Thermal sensor:
Equipped with a 12 μm Vanadium Oxide Uncooled Focal Plane Detector sensor and NETD sensitivity ≤40 mK , the camera detects even the smallest thermal changes and measures temperatures up to 550°C with ±2°C or ±2% accuracy.
✅ Artificial Intelligence:
Intelligent functions integrate Heat Detection and Cold/Hot Spot Trace , enabling the automatic detection of overheating, thermal anomalies and potential sources of risk before they result in failures or fires.
✅ Functions:
Supports point, line and area temperature measurement , up to 12 simultaneous rules , customizable Region of Interest (ROI) , 18 color palettes , 2D/3D NR noise reduction and DDE detail enhancement for advanced thermal visualization.
✅ Network Camera:
Compatible with IPv4/IPv6 , HTTP , HTTPS , RTSP , FTP , SMTP , SNMP , DDNS , NTP , ONVIF and CGI protocols, it guarantees perfect integration with VMS software and professional supervision systems.
✅ Doors:
It has 1 RJ-45 10/100 Base-T port , 2 alarm inputs and 1 alarm output , allowing integration with security, industrial automation and event reporting systems.
✅ PoE:
802.3af and ePoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation and reducing infrastructure costs even in complex industrial environments.

Technical data sheet

TPC-AEBF5201-TB7-DW-S4-G
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 256 (H) × 192 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) ≤35 mK (@f/1.0)
Focal Length 7 mm
Field of View H: 24°; V: 18°
Close Focus Distance F1.0
Detection Distance Vehicle: 789 m ((2,588.58 ft);
Human: 295 m (967.85 ft)
Recognition Distance Vehicle: 498 m (1,633.86 ft);
Human: 38 m (124.67 ft)
Identification Distance Vehicle: 197 m (646.33 ft);
Human: 76 m (249.34 ft)
Digital Detail Enhancement (DDE) Yes
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Temperature Measurement Range Low temperature mode: –20 °C (–4 °F) to +150 °C (+302 °F)
High temperature mode: +100 °C (+212 °F) to +550 °C (+1022 °F)
Auto mode
Temperature Measurement Accuracy Max. (±2 °C, ±2%)
Operating temperature: –20 °C (–4 °F) to +50 °C (+122°F)
Temperature Measurement Mode Spots: 12
Line: 12
Area: 12
Support 12 rules simultaneously
Audio and Video
Video Compression H.264 (High, Main); M-JPEG; H.265
Resolution Thermal:
Main stream: 1280 × 960 ; 1024×768; 640×480; 256×192; 1280 × 960 (default)
Sub stream: 640×480; 256×192; 256 × 192 (default)
Video Frame Rate Thermal:
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Image Encoding Format JPEG
Function
Network Protocol IPv4/IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE
Region of Interest (RoI) Yes (customizable)
Storage FTP; Micro SD card (256G, hot swapping)
Interoperability ONVIF; CGI
Browser IE: IE8 and the later, and explorer with IE core
Google: 42 and earlier
Firefox: 42 and earlier
User/Host Up to 6 (total bandwidth: 64 MB)
Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
User Management Up to 20 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Micro SD Card (Max.) 256 GB
Intelligence
Heat Detection Yes
Cold/Hot Spot Trace Yes
Port
Network Port 1 × RJ-45 (10/100 Base-T)
Alarm Input 2
Alarm Output 1
Power
Power Supply 12 VDC, PoE (802.3af)
Power Consumption <3 w="" td="">
ePoE Yes
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Physical Characteristics
Protection IP68
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Structure
Product Dimensions 176.1 mm × 114.7 mm × 96 mm (6.93" × 4.52" × 3.78") (L × W × H)
Packaging Dimensions 257 mm × 188 mm × 187 mm (10.12" × 7.4" × 7.36") (L × W × H)
Net Weight ≤2 kg (4.41 lb)
Gross Weight ≤2.5 kg (5.51 lb)
Certification
Certifications CE/FCC
Explosion-proof certification ATEX, IECEx:
II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
