PSDW83242M-A360-D845L-ATC-S3 - is a WizMind Panoramic PTZ camera designed for professional video surveillance of large areas, equipped with 8 4 MP panoramic sensors with 2.8 mm fixed lens that generate a 32 MP 360° view and a PTZ camera with 5.5-248 mm motorized lens , 45x optical zoom and laser illumination up to 500 meters . Thanks to the WizMind AI platform and Xinghan Large-Scale AI Models-Vision technology, it offers facial recognition, video metadata, crowd and vehicle density analysis, perimeter protection and smart tracking . The ATC (Anti-Corrosion) version integrates special anti-corrosion protection for installations in coastal, industrial and harsh environments. The package also includes GPS/BDS support, MicroSD storage up to 512 GB , professional alarm and audio interfaces, and IP66 protection for maximum operational reliability. Dahua
INSTALLATEUR FINDEN
PSDW83242M-A360-D845L-ATC-S3 | PTZ IP CAMERA WITH 2.8mm FIXED LENS AND 4MP RESOLUTION AND 5.5-248mm VARIFOCAL LENS AND 32MP RESOLUTION - ARTIFICIAL INTELLIGENCE - POE - ANTI-CORROSION

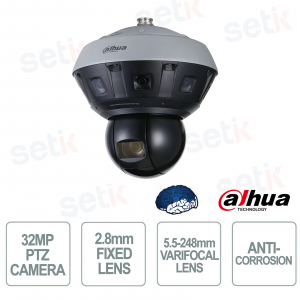

The Dahua PSDW83242M-A360-D845L-ATC-S3 is a high-performance WizMind Panoramic PTZ camera that combines 8 x 4 MP panoramic sensors with 2.8 mm fixed lens for a 32 MP 360° view and an 8 MP PTZ camera with 5.5-248 mm motorized lens , 45x optical zoom and laser illumination up to 500 meters . Thanks to the Xinghan Large-Scale AI Models-Vision artificial intelligence, it integrates facial recognition, video metadata, crowd and vehicle density analysis, perimeter protection and smart tracking . The ATC Anti-Corrosion version offers advanced protection against salt, humidity and aggressive atmospheric agents, making it ideal for installations in coastal areas and industrial environments. GPS/BDS support, MicroSD storage up to 512 GB , professional audio and alarm interfaces and IP66 protection for maximum operational reliability complete the solution.
Main specifications:
- 32MP 360° panoramic view
- 8 fixed 2.8 mm lenses
- 8 MP PTZ with 5.5-248 mm lens
- 45x optical zoom
- Laser illumination up to 500 m
- WizMind AI with Xinghan AI
- Facial recognition
- Advanced Video Metadata
- Crowd Density and Vehicle Density
- Automatic Smart Tracking
- Integrated GPS/BDS
- MicroSD up to 512 GB
- IP66 protection
- Anti-corrosion ATC version
Further details
✅ Optics :
The camera combines 8 fixed 2.8 mm lenses dedicated to panoramic vision with a powerful PTZ camera equipped with a 5.5-248 mm motorized lens . This configuration allows for continuous 360° coverage and, at the same time, extremely detailed zooms thanks to the 45x optical zoom .
✅ Resolution:
The panoramic system integrates 8 x 4 MP sensors that generate a total image of 32 MP (11520 × 2700) , while the PTZ module offers 8 MP Ultra HD resolution (3840 × 2160) , ensuring an overall view and details of the highest quality.
✅ Xinghan Large-Scale AI Models-Vision :
The advanced Xinghan AI platform uses deep learning algorithms and transformer architecture to improve object recognition, scene analysis, and simultaneous management of multiple intelligent tasks, increasing accuracy and reliability even in complex scenarios.
The advanced Xinghan AI platform uses deep learning algorithms and transformer architecture to improve object recognition, scene analysis, and simultaneous management of multiple intelligent tasks, increasing accuracy and reliability even in complex scenarios.
✅ PTZ Camera:
The PTZ module features 45x optical zoom , 16x digital zoom , illumination with 7 lasers and 2 IR LEDs and a range of up to 500 meters . It also supports Smart Tracking , three-dimensional positioning and 360° endless rotation, for automatic tracking of moving subjects.
The PTZ module features 45x optical zoom , 16x digital zoom , illumination with 7 lasers and 2 IR LEDs and a range of up to 500 meters . It also supports Smart Tracking , three-dimensional positioning and 360° endless rotation, for automatic tracking of moving subjects.
✅ Audio :
The camera supports 2 audio inputs and 2 audio outputs , allowing integration with external microphones and speakers for two-way communications and advanced security event management.✅ Alarm :
Equipped with 7 inputs and 3 alarm outputs , it manages intelligent events such as intrusion, line crossing, facial recognition, crowds, congested traffic, abandoned objects and anomaly detection , ensuring complete protection of the monitored areas.
Equipped with 7 inputs and 3 alarm outputs , it manages intelligent events such as intrusion, line crossing, facial recognition, crowds, congested traffic, abandoned objects and anomaly detection , ensuring complete protection of the monitored areas.
✅ Network Camera:
This professional IP camera supports advanced protocols such as IPv4, IPv6, HTTPS, RTSP, ONVIF Profile S/G/T and CGI , ensuring full compatibility with VMS software, NVR and enterprise video surveillance infrastructures .
✅ Functions:
It integrates advanced features such as Panoramic Splicing 360° , AR Panorama , Face Recognition , Video Metadata , Crowd Density , Vehicle Density , Perimeter Protection , Smart Search and Smart Tracking , offering intelligent and centralized security management .
✅ Doors :
The equipment includes RJ-45 Gigabit port , RS-485 , BNC , SFP for optical fiber , professional audio inputs and outputs, as well as numerous alarm interfaces for advanced integration with security and automation systems.
✅ PoE :
This model uses professional 36 VDC power and does not support PoE technology, a design choice that ensures the power needed to simultaneously power the panoramic system, the high-performance PTZ and the long-distance laser illuminators.
✅ Anti-corrosion :
The ATC (Anti-Corrosion) version integrates professional-grade corrosion protection, designed to resist salt air, high humidity, and acid rain . It is particularly suitable for installations in ports, coastal areas, industrial infrastructure, and environments subject to corrosive agents , ensuring reliability and a long operating life.
Technical data sheet
| MODEL | PSDW83242M-A360-D845L-ATC-S3 |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 11520 (H) × 2700 (V) |
| ROM | Channel 1 (Panoramic): 8 GB Channel 2 (PTZ): 8 GB |
| RAM | Channel 1 (Panoramic): 4 GB Channel 2 (PTZ): 4 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Channel 1 (Panoramic): Auto/Manual 1/3 s-1/100,000 s Channel 2 (PTZ): Auto/Manual 1/1s-1/300,000s |
| Min. Illumination | Channel 1 (Panoramic):0.001 lux @F1.0(Color, 30 IRE); 0.0001 [email protected] (B/W, 30 IRE) Channel 2 (PTZ):0.001 lux @F1.5(Color, 30 IRE); 0.0001 lux @F1.5(B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Channel 1 (Panoramic): NA Channel 2 (PTZ): Up to 500 m (1640.42 ft) (Laser) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | Channel 1 (Panoramic): NA Channel 2 (PTZ):7(LASER LED); 2(IR LED) |
| Lens | |
| Lens Type | Channel 1 (Panoramic): Fixed-focal Channel 2 (PTZ): Motorized vari-focal |
| Lens Mount | Channel 1 (Panoramic): M16 Channel 2 (PTZ): Module |
| Focal Length | Channel 1 (Panoramic): 2.8 mm Channel 2 (PTZ): 5.5 mm–248 mm |
| Max. Openings | Channel 1 (Panoramic): F1.0 Channel 2 (PTZ): F1.5–F5.3 |
| Field of View | Channel 1 (Panoramic): H: 360°; V: 105° Channel 2 (PTZ): H: 2.02°–64.4°; V: 1.14°–38.37°; D: 2.29° |
| Iris Control | Channel 1 (Panoramic): Fixed Channel 2 (PTZ): Auto |
| Close Focus Distance | Channel 1 (Panoramic):1.4 m (4.59 ft) Channel 2 (PTZ): 0.1 m–5 m (0.33 ft–16.4 ft) (T to W) |
| Intelligence | |
| Intelligence Description | Channel 1 (Panoramic): Perimeter protection, crowd distribution map (Large-Scale AI Models), vehicle density. Channel 2 (PTZ): Perimeter protection, video metadata, face recognition |
| IVS (Perimeter Protection) | Channel 1 (Panoramic): Tripwire; intrusion; parking detection Channel 2 (PTZ): Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 10,000 face pictures |
| Vehicle Density | Vehicle density; Parking upper limit; traffic congestion alarm |
| Crowd Distribution Map | Crowd map (Large-Scale AI Models), global crowd density; crowd density in area; people counting in area |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, helmet. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 + |
| Video Frame Rate | Channel 1 (Panoramic): Main stream: 11520 × 2700@(1-25/30fps) sub stream: 2048 × 680@(1-25/30fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Channel 2 (PTZ): Main stream: 3840 × 2160@(1-25/30fps) Sub stream: 704 × 576@(1-25/30fps) Third stream: 1920 × 1080@(1-25/30fps) |
| Streaming Capability | 3 stream |
| Resolution | Channel 1 (Panoramic): Main stream: 11520 × 2700; 8192 × 1800; 7680 × 1680; 5760 × 1264; 4096×900 Substream: 2048×452 Third Stream: 3840 × 832; 2560×560 Channel 2 (PTZ): Main stream: 3840 × 2160; 2560 × 1440; 1920×1080; 1280×960; 1280×720 Sub Stream: 704×576; 352×288 Third Stream: 1920×1080; 1280×960; 1280×720 |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | Channel 1 (Panoramic): H.264: 127 kbps–20736 kbps H.265: 50 kbps–12544 kbps Channel 2 (PTZ): H.264: 32 kbps–27740 kbps H.265: 12 kbps –16572 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | Channel 1 (Panoramic): DWDR Channel 2 (PTZ): 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Channel 1 (Panoramic): Yes (4 areas) Channel 2 (PTZ): Yes (8 areas) |
| Image Stabilization | Channel 1 (Panoramic): NA Channel 2 (PTZ): Optical Image Stabilization |
| Defog | Channel 1 (Panoramic): NA Channel 2 (PTZ): Optical defog |
| Image Rotation | 0°/180° (Channel 2 (PTZ) |
| Image Correction | Channel 1 (Panoramic): No Channel 2 (PTZ): No |
| Privacy Masking | Channel 1 (Panoramic): 4 areas Channel 2 (PTZ): 24 areas (8 for each preset) |
| Audio | |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | Channel 1 (Panoramic): External alarm; No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering; scene changing; audio detection; intensity change; tripwire; intrusion; parking detection; crowd density; traffic congestion; parking upper limit Channel 2 (PTZ): Tripwire; intrusion; parking detection; crossing virtual fence; fast moving; abandoned object; missingobject; crowd gathering; loitering detection; face recognition; video metadata |
| Network | |
| Network | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 (Total bandwidth: 400 M) |
| Storage | FTP; SFTP; NFS; SMB; Micro SD card (support max. 512GB) |
| Browser | IE: IE 9, IE 10 and IE11 Chrome: Chrome 42 and later Firefox: Firefox 52 and later |
| Management Software | DSS |
| Cyber Security | Configuration encryption;trusted execution;Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC:47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| PTZ Dome | |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –11° to 90°, auto flip 180° |
| Manual Speed Control | Pan PTZ speed: 240°/s, Pan preset speed: 240°/s Tilt PTZ speed: 100°/s, Tilt preset speed: 100°/s |
| Positioning Accuracy | Pan: 0.05° Tilt: 0.05° |
| Remote PTZ Reset | Yes |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset/Pattern/Tour/Scan |
| Time Task | Yes |
| Three-dimensional Positioning | Yes |
| PTZ Limit | Yes |
| Position Display | Yes |
| Information Display | Yes |
| Time Display | Yes |
| Port | |
| Optical Module Specification | SFP optical module, single mode, single fiber 20 KmTX-1310 nm/RX-1550 nm |
| Optical Fiber | FC |
| Optical Fiber Module Type | Gigabit SFP optical module, single mode, single fiber TX-1550 nm/RX-1310 nm |
| Audio Input | 2 channels (terminal) |
| Audio Output | 2 channels (terminal) |
| Alarm Input | 7 channels in: 5mA 3V–5V DC |
| Alarm Output | 3 channels out: 1,000mA 30V DC/500mA 50V AC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Power | |
| Power Supply | 36 VDC |
| Power Consumption | Basic: 51.48 W (36 VDC) Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation): 71.9 W (36 VDC) Heating: Channel 1 (Panoramic): 6 W (36 VDC); PTZ: 5.4W |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Strorage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Protection | IP66; Anti-Corrosion Protection |
| Anti-corrosion Level | Professional Protection |
| Structure | |
| Casing Material | Metal + Plastic |
| Product Dimensions | Φ383mm × 462mm (15.07" × Φ18.19") |
| Net Weight | 14.7 kg (32.41 lb) |
| Gross Weight | 19.8 kg (43.65 lb) |
