SDT3E410-8P-MB-A-PV1 - The Dahua X-Spans 8MP+4MP PTZ panoramic camera combines a 180° panoramic view with a PTZ camera equipped with 2.8 mm and 4-40 mm lenses and 10x optical zoom , offering complete and detailed coverage of large areas. Thanks to Starlight , TiOC , Smart Dual Light , Perimeter Protection , Auto Tracking Lite , Face Detection , SMD 4.0 and AcuPick technologies, it ensures intelligent detection and clear images even in low light conditions. IP66 protection, Smart H.265+ compression, PoE+ support and active deterrence with red/blue lights and siren make it an ideal professional solution for advanced outdoor video surveillance. Dahua

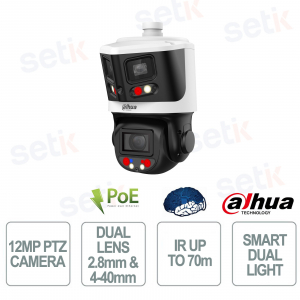

SDT3E410-8P-MB-A-PV1 | 12MP OUTDOOR POE PANORAMIC AND PTZ CAMERA WITH ARTIFICIAL INTELLIGENCE - STARLIGHT

The Dahua X-Spans 8MP+4MP PTZ panoramic camera combines a 180° panoramic view with a PTZ camera equipped with 2.8mm and 4-40mm lenses and 10x optical zoom , ensuring complete and detailed coverage of large areas. Starlight , TiOC , Smart Dual Light , Perimeter Protection , Auto Tracking Lite , Face Detection , SMD 4.0 and AcuPick technologies ensure clear images and intelligent detection of people and vehicles even in low light conditions. Thanks to IP66 protection, Smart H.265+ compression, PoE+ support and active deterrence with red/blue lights and siren, it represents a professional solution for advanced IP video surveillance systems.
Main specifications:
- Resolution: 8MP panoramic + 4MP PTZ
- Optics: 2.8mm panoramic + 4-40mm PTZ
- Optical zoom: 10x
- Panoramic view: 180°
- AI Technologies: AcuPick, Face Detection, SMD 4.0
- Tracking: Auto Tracking Lite and Smart Tracking
- Night Vision: Starlight and Smart Dual Light
- Protection: IP66 with TVS 6000 V
- Compression: Smart H.265+/H.264+
- Power supply: PoE+ and 12 VDC
- Active deterrence: Red/blue lights and built-in siren
Further details
✅ Xinghan Large-Scale AI Models-Vision:
Technical data sheet
| Model | SDT3E410-8P-MB-A-PV1 |
| Room | |
| Image Sensor | Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS |
| Pixel | Overview channel: 8 MP; Detail channel: 4 MP |
| Max. Resolution | Overview channel: 5376 (H) × 1520 (V); Detail channel: 2560 (H) × 1440 (V) |
| ROM | Overview channel: 4 GB; Detail channel: 4 GB |
| RAM | Overview channel: 2 GB; Detail channel: 1 GB |
| Electronic Shutter Speed | Overview channel: 1/3s-1/100000s; Detail channel: 1s-1/30000s |
| Scanning System | Progressive |
| Min. Illumination | Channel Overview: 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on) Detail channel: 0.1 s–1/30,000 s 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on) |
| Illumination Distance | Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (warm light) Detail channel: 70 m (229.66 ft); 50 m (164.04 ft) (warm light) |
| Illuminator On/Off Control | Overview channel: Auto; Manual; Off; Detail channel: Zoom Prio; Car; Manual; Off |
| Illuminator Number | Overview channel: 2 (IR); 2 (warm light); Detail channel: 2 (IR); 2 (dual light Fusion) |
| Lens | |
| Focal Length | Overview channel: 2.8 mm; Detail channel: 4 mm–40 mm |
| Max. Openings | Overview channel: F1.0; Detail channel: F1.6–F3.6 |
| Field of View | Overview channel: H: 180°; V: 47°; Detail channel: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8° |
|
Optical Zoom |
Channel Overview: NA |
|
Focus Control |
Auto; manual; semi-auto |
|
Close Focus Distance |
Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33 ft–1.64 ft) |
|
Iris Control |
Channel Overview: NA |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 345°; Tilt: -10° to +90° |
| Manual Speed Control | Channel Overview: NA; Detail channel: H: 0.1°–80°/s; V: 0.1°–50°/s |
| Preset Speed | H: 80°/s; V: 50°/s |
| Presets | 300 |
|
Tour |
8 (up to 32 presets per tour) |
| Power-off Memory | Yes |
|
Idle Motion |
Preset; Tour |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human/vehicle alarm classification; linkage tracking (only for people) |
| Face Detection | Detail channel: Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. |
| Auto Tracking | Auto Tracking Lite |
| Smart Tracking | WizTracking: Xinghan large-scale AI models-driven human tracking Relay tracking: X-SPANS series only. Tracking continues after target exits overview channel until target leaves scene. Linkage tracking: X-SPANS series only. Tracks only targets visible in overview channel. |
| Car Patrol | After an IVS alarm is triggered, it can link with up to 5 presets or scan to patrol the key areas. IVS can be enabled with SMD at the same time. |
| SMD | Yes |
| AcuPick | Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live |
| Active Deterrence | |
| Light Warning | Red-Blue light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarms and 10 custom sound alarms can be imported. Sound can be set from 0%–100%. Play times can be set from 1-10. |
| Video | |
| Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Streaming Capability | 3 Streams |
| Resolution |
Overview channel: 5376 × 1520; 26886 × 752; 1080p (1920 × 1080); 720p (1280 × 720); 1344 × 368; D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); |
| Video Frame Rate |
Channel Overview: |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | Overview channel: H264: 128kbps–16.384kbps H265: 51 kbps–13,312 kbps; Detail channel: H264: 96 kbps–16.384 kbps H265: 38 kbps–10,240 kbps |
| Day/Night | Overview channel: Auto; Color; B/W; Electronic Detail channel: Auto; Color; B/W; Electronic |
| BLC | Yes |
| WDR | Overview channel: DWDR Detail channel: 120 dB |
| HLC | Yes |
| White Balance | Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Panorama: Car; manual; gain first Detail: Car; manual; gain first |
| Noise Reduction | Panorama: 2D NR; 3D NR Detail: Auto: 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (ROI) | Yes |
| Image Stabilization | Channel Overview: NA Detail channel: Electronic Image Stabilization (EIS) |
| Defog | Overview channel: Electronic Detail channel: Electronic |
| Digital Zoom | Channel Overview: NA Detail channel: 16x |
| Image Rotation | Channel Overview: NA Detail channel: 180° |
| S/N Ratio |
Channel overview: ≥55 dB |
| Audio | |
| Audio Compression | Overview channel: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729; Detail channel: NA |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view Multiple colors and mosaic available |
| Network | |
| Network Port | RJ-45 (100 Base-T) |
| Network Protocol |
FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; QoS; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; RTSP; ARP |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P |
| Streaming Method | Unicast / Multicast |
| User/Host | 20 users (total bandwidth: 64M) |
| Storage | Micro SD card (512GB); FTP/SFTP; NAS |
| Browser | web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions |
| Management Software | DMSS; DSS Pro |
| Smartphone | Android, iOS |
| Certification | |
| Certifications | CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/EN62368-1/IEC62471 |
| Port | |
| Audio Input |
1 channel (LINE IN, bare wire,built-in mic (mutually exclusive)) |
| Audio Output |
1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive)) |
| Alarm Input |
1 (on-off value input: 0–5 VDC) |
| Alarm Output |
1 channel |
| Alarm Linkage |
Capture; recording; send email; presets; tours; pattern; alarm digital output; audio; warning light |
| Alarm Event |
Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply |
12 VDC, 3 A ± 10% |
| Power Consumption |
Basic: 12 W; |
|
Environment |
|
| Operating Conditions |
–30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity |
≤95% |
| Ingress Protection |
TVS 6000V lightning proof; IP66; surge protection; voltage transient protection |
|
Structure |
|
| Product Dimensions |
140.3 mm × 181.7 mm × 238.8 mm (5.52" × 7.15" × 9.40") (L × W × H) |
| Net Weight |
2.17 kg (4.78 lb) |
| Gross Weight |
3.1 kg (6.83 lb) |
