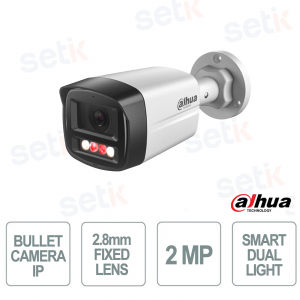

2MP 2.8 mm Smart Dual Light PoE SMD Plus IP67 Bullet IP Camera with Microphone - Dahua

2MP 2.8 mm Smart Dual Light PoE SMD Plus IP67 Bullet IP Camera with Microphone - Dahua
-56%

IPC-HFW1239TL1-A-IL-S6 - The 2 MP Bullet IP camera with 2.8 mm fixed lens offers high-quality Full HD images and a wide 99° viewing angle , ideal for video surveillance of homes, offices and commercial activities. Thanks to Smart Dual Light technology with IR up to 30 meters and warm light up to 20 meters , it ensures clear footage even in low light conditions. Smart H.265+/H.264+ compression, SMD Plus function, built-in microphone , PoE power supply and IP67 protection guarantee a reliable, efficient and easy to install security system. Dahua

Technical data sheet

Artikel-Nr.: IPC-HFW1239TL1-A-IL-S6

Marke: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


IPC-HFW1239TL1-A-IL-S6 | 2MP IP BULLET CAMERA WITH 2.8mm FIXED LENS - ARTIFICIAL INTELLIGENCE - MICROPHONE

Dahua

The 2 MP Bullet IP camera with 2.8 mm fixed lens offers clear Full HD images and a wide 99° viewing angle , making it ideal for video surveillance of homes, offices and commercial businesses. Smart Dual Light technology combines IR illumination up to 30 meters and warm light up to 20 meters , ensuring clear images in any lighting conditions. Equipped with SMD Plus , built-in microphone , Smart H.265+/H.264+ compression, PoE power supply and IP67 protection, it ensures reliable, efficient and easy-to-install monitoring.

Main specifications:

  • Resolution: 2 MP Full HD (1920×1080)
  • Optics: Fixed 2.8mm with 99° viewing angle
  • Lighting: Smart Dual Light with IR 30m and warm light 20m
  • Compression: Smart H.265+ / H.264+
  • Artificial Intelligence: SMD Plus
  • Audio: Built-in microphone
  • Power supply: PoE and 12V DC
  • Protection: IP67 for outdoor installations

Further details

✅ Optics :
The 2.8mm fixed lens with a 99° viewing angle ensures wide coverage of the monitored area, making it ideal for monitoring entrances, car parks, shops and outdoor spaces with detailed images and a complete view of the scene.
✅ Resolution:
The 2MP Full HD (1920×1080) resolution offers sharp and smooth images up to 30 fps , while the Smart H.265+/H.264+ compression reduces bandwidth consumption and storage space without compromising video quality.
✅ Smart Dual Light :
Smart Dual Light technology combines IR illumination up to 30 meters and warm light up to 20 meters , automatically adapting the lighting mode to obtain clear and detailed images even during night hours.
✅ Artificial Intelligence:
The SMD Plus function uses Artificial Intelligence algorithms to distinguish people and vehicles from other movements, significantly reducing false alarms and making the video surveillance system more accurate and efficient.
✅ Microphone:
The built-in microphone records ambient audio with dedicated codecs, providing complete surveillance thanks to the simultaneous recording of images and sounds, useful for improving the level of security.
✅ PoE :
Power over Ethernet (PoE) support allows the camera to be powered and data transmitted over a single network cable , simplifying installation, reducing wiring costs and increasing system reliability.
✅ Network:
The 10/100 Base-T RJ45 interface and support for major network protocols such as IPv4, IPv6, RTSP, HTTP, ONVIF Profile S/T and P2P ensure complete integration with NVR, management software and apps for iOS and Android devices, allowing quick and secure remote control.

Technical data sheet

IPC-HFW1239TL1-A-IL-S6
Technical features
Dahua Entry Series Smart Dual Light IP camera
2 MP 1/2.9" CMOS sensor with 1920 x 1080 maximum resolution
Minimum illumination of 0.005 lux in color at F1.6, 0.0005 lux in B/W at F1.6 and 0 lux with illuminator on
Signal-to-noise ratio greater than 56 dB
Integrated IR illumination with a range of up to 30 m (98 ft)
Warm illumination with a range of up to 20 m (65 ft)
2 IR LEDs and 2 warm illumination LEDs
Fixed lens 2.8 mm
M12 mount
F1.6 aperture
99° horizontal, 54° vertical and 118° diagonal field of view
Fixed iris control
Minimum focusing distance of 0.8 m
Video
H.265, H.264, H.264H, H.264B and MJPEG compression on substream
Smart Codec Smart H.265+ and Smart H.264+
2 simultaneous streams
Stream 1: 1080P (1920 x 1080) at 25/30 ips
Stream 2: D1 (704 x 576) at 25 fps / D1 (704 x 480) at 30 fps
Resolutions 1080P (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1, VGA and CIF
CBR and VBR bitrate control
H.264 bitrate from 32 kbps to 4096 kbps
Bitrate H.265 from 12 kbps to 4096 kbps
Day/Night Auto(ICR), color and B/W modes
Functionalities
BLC, HLC and digital WDR
Auto, natural, street lamp, outdoor, manual and custom regional white balance
Auto and manual gain control
3D NR noise reduction
Configurable motion detection in 4 rectangular areas
ROI in 4 areas
Smart Lighting
0°/90°/180°/270° image rotation
Mirror
Privacy masks in 4 areas
Rotation mode
Digital watermark
Intelligent functions
SMD Plus
Smart Search with intelligent NVR for refined search, extraction and merging of events
Audio
Built-in microphone
G.711a, G.711Mu, PCM and G.726 audio compression
Audio detection
Storage
FTP storage
Alarms
Alarm events for network disconnection, IP conflict, illegal access, motion detection, video tampering, audio detection, SMD and security exception
Network
RJ45 10/100 Base-T interface
Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP and P2P
ONVIF Profile S, ONVIF Profile T and CGI support
SDK and API
Up to 6 users
IE, Chrome and Firefox browsers
Smart PSS Lite, DSS and DMSS management software
Mobile app for iOS and Android
Security features Digest, WSSE, account locking, security logs, X.509 certificate generation and import, HTTPS, Trusted boot, Trusted execution and Trusted upgrade
Power supply
Power supply 12 V DC and PoE (802.3af)
Basic power consumption of 1.8 W at 12 V DC and 2.3 W via PoE
Maximum power consumption 6.3 W at 12 V DC and 7.8 W for PoE
Input voltage tolerance of ±30%.
Environmental
Operating temperature -40°C to +60°C (-40°F to +60°F)
Operating humidity up to 95%.
40 °C to +60 °C (-40 °C to +60 °C) storage temperature
Storage humidity up to 95%.
IP67 protection
Physical characteristics
Metal and plastic housing
Ceiling, wall and pole installation with optional accessory
Dimensions: 197.9 x 80.2 x 76.2 mm
Net weight: 0.31 kg
Gross weight: 0.45 kg
3AXIS: 0°~360° (PAN), 0°~90° (TILT), 0°~360° (Rotation)
Certifications
CE-LVD: EN 62368-1
CE-EMC: 2014/30/EU
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
