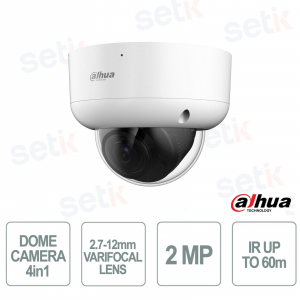

HAC-HDBW1231RA-ZA | 2MP HDCVI DOME CAMERA WITH 2.7-12mm VARIFOCAL LENS - SMART IR - STARLIGHT - MICROPHONE

Dahua

The Dahua Lite 2 MP Dome camera with 2.7-12 mm motorized lens and autofocus guarantees clear Full HD images and maximum flexibility in framing to adapt to any video surveillance need. Thanks to Starlight technology, Smart IR illumination up to 60 meters , Real WDR 130 dB and 3D NR , it ensures excellent performance even in low-light environments. The integrated microphone , 4-in-1 compatibility (HDCVI, HDTVI, AHD and CVBS) and double IP67 and IK10 protection make this camera a professional, reliable and resistant solution for indoor and outdoor installations.

Main specifications:

  • Resolution: 2 MP Full HD (1920×1080)
  • Lens: Motorized 2.7-12mm with autofocus
  • Night Vision: Smart IR up to 60m
  • Technology: Starlight, Real WDR 130 dB and 3D NR
  • Audio: Built-in microphone with coaxial audio
  • Compatibility: 4 in 1 (HDCVI / HDTVI / AHD / CVBS)
  • Protection: IP67 and IK10
  • Power supply: 12 V DC

Further details

✅ Optics :
The 2.7-12mm motorized varifocal lens with autofocus allows for precise zoom and framing adjustments, suitable for both large-area monitoring and specific surveillance. The variable viewing angle of up to 123° offers great flexibility in any installation.
✅ Resolution:
The 2 MP Full HD resolution (1920×1080) guarantees clear and detailed images up to 30 fps , while the Real WDR 130 dB and 3D NR technologies improve video quality by reducing backlight and digital noise even in the most complex scenes.
✅ Smart IR :
Smart IR technology with a range of up to 60 meters automatically adjusts the intensity of the infrared light based on the distance of the subject, avoiding overexposure and ensuring always clear and well-balanced night images.
✅ Starlight :
Starlight technology allows you to obtain bright, detailed images even in extremely low light , improving visibility at night and in poorly lit environments without compromising the quality of the footage.
✅ Microphone:
The built-in microphone with coaxial audio transmission allows you to record ambient audio along with images, providing more comprehensive surveillance and additional support when reviewing recordings.
✅ 4in1 technology:
4-in-1 compatibility (HDCVI, HDTVI, AHD and CVBS) with selectable video output makes the camera easily integrated with existing DVRs and systems, simplifying upgrades and new installations without the need to replace the infrastructure.

Technical data sheet

HAC-HDBW1231RA-ZA
Technical features
Dahua Lite 4-in-1 Dome
1/2.8" CMOS sensor
Maximum resolution 1080P (1920×1080)
Progressive scanning
PAL electronic shutter from 1/25 sec. to 1/100,000 sec.
NTSC electronic shutter from 1/30 sec. to 1/100,000 sec.
Minimum illumination of 0.002 lux at F1.5, 30 IRE
0 lux with IR on
Signal-to-noise ratio greater than 65 dB
IR range up to 60 m
Automatic illuminator control
3 IR LEDs
Motorized lens from 2.7 mm to 12 mm
Autofocus
φ14 mount
Maximum aperture F1.5
Diagonal angle of view from 38° to 123°.
Horizontal angle of view from 33° to 102° Horizontal angle of view from 33° to 102
Vertical angle of view from 19° to 53°.
Minimum focusing distance of 0.5 m
Video
Switchable CVI, TVI, AHD and CVBS output through BNC port
CVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
AHD: 1080P@25 ips in PAL and 1080P@30 ips in NTSC
TVI: 1080P@25 ips in PAL and 1080P@30 ips in NTSC
CVBS: 960H
1080P (1920×1080) and 960H resolutions
Auto Day/Night mode with ICR
Functionalities
BLC, WDR and HLC
130 dB real WDR
Auto and area white balance
Auto and manual gain control
3D NR noise reduction
Smart Lighting
Super Adapt
Mirror
Off/On privacy mask with 8 rectangular areas
Audio
Built-in 1-channel microphone
Coaxial audio transmission
Communication interface
1 BNC port for switchable CVI, TVI, AHD and CVBS video output
Power supply
12V DC ±30% power supply
Maximum power consumption 8 W with IR activated
Environmental
Operating temperature -30 °C to +60 °C (-22 °F to +140 °F)
Operating humidity less than 95% (non-condensing)
Storage temperature -30 °C to +60 °C (-22 °F to 140 °F)
Storage Humidity less than 95% (non-condensing)
IP67 protection
Vandal protection IK10
Physical characteristics
Metal housing
3AXIS with horizontal adjustment from 0° to 355°, vertical adjustment from 0° to 80° and rotation from 0° to 355°.
Dimensions: φ126mm × 100mm
Net weight: 0.63 kg
Gross weight: 0.81 kg
Certifications
CE: EN55032:2015, EN 61000-3-2-2:2014, EN 61000-3-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017
FCC: CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014
UL: UL60950-1 and CAN/CSA C22.2 No.60950-1
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
