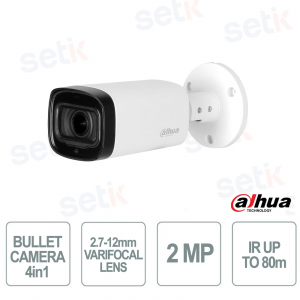

Dahua 2MP Starlight 2.7-12mm Motorized Smart IR 80m Audio IP67 Bullet Camera

Dahua 2MP Starlight 2.7-12mm Motorized Smart IR 80m Audio IP67 Bullet Camera

 
Optic calculation
-56%

HAC-HFW1231R-ZA - The 2 MP Bullet Lite camera with 2.7-12 mm motorized lens and autofocus offers high-quality Full HD images and maximum flexibility in framing to adapt to any video surveillance need. Thanks to Starlight technology, powerful Smart IR up to 80 meters , Real WDR 130 dB and 3D NR , it ensures clear footage even in extremely low light conditions. The integrated microphone with coaxial audio , 4-in-1 compatibility (HDCVI, HDTVI, AHD and CVBS) and IP67 protection make this camera a professional, reliable and resistant solution for outdoor and indoor installations. Dahua

Technical data sheet

Artikel-Nr.: HAC-HFW1231R-Z-A

Marke: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

HAC-HFW1231R-ZA | 4-in-1 Bullet Camera with 2.7-12mm Varifocal Lens, 2MP Resolution, Starlight

Dahua

The Dahua Lite 2 MP Bullet camera with 2.7-12 mm motorized lens and autofocus offers high-quality Full HD images and maximum flexibility in framing, adapting to any video surveillance need. Thanks to Starlight technology, powerful Smart IR up to 80 meters , Real WDR 130 dB and 3D NR , it guarantees clear footage even in extremely low light conditions. The built-in microphone with coaxial audio , 4-in-1 compatibility (HDCVI, HDTVI, AHD and CVBS) and IP67 protection ensure a professional, reliable and durable solution for indoor and outdoor installations.

Main specifications:

  • Resolution: 2 MP Full HD (1920×1080)
  • Lens: Motorized 2.7-12mm with autofocus
  • Night Vision: Smart IR up to 80m
  • Technology: Starlight, Real WDR 130 dB and 3D NR
  • Audio: Built-in microphone with coaxial audio
  • Compatibility: 4 in 1 (HDCVI / HDTVI / AHD / CVBS)
  • Protection: IP67
  • Power supply: 12 V DC

Further details

✅ Optics :
The 2.7-12mm motorized varifocal lens with autofocus allows for precise zoom and framing adjustments, suitable for both large area monitoring and specific point monitoring. The variable viewing angle from 123° to 38° offers maximum flexibility in any installation.
✅ Resolution:
The 2 MP Full HD resolution (1920×1080) guarantees sharp and detailed images up to 30 fps , while the Real WDR 130 dB and 3D NR technologies improve video quality by compensating for backlighting and reducing digital noise even in the most complex scenes.
✅ Starlight :
Starlight technology, thanks to a light sensitivity of 0.002 lux and an F1.5 lens, ensures bright, detailed images even in low-light environments. The Smart IR system up to 80 meters automatically adjusts the intensity of the infrared light, ensuring uniform night shots without overexposure.
✅ Microphone:
The built-in microphone with coaxial audio allows you to capture ambient audio along with the video stream using the same coaxial cable, offering more comprehensive surveillance without requiring additional cabling.
✅ 4-in-1 technology:
The 4-in-1 compatibility (HDCVI, HDTVI, AHD and CVBS) with selectable video output via BNC port makes the camera easily integrated with DVRs and existing systems, simplifying both upgrades and new installations and ensuring maximum versatility.

Technical data sheet

HAC-HFW1231R-ZA
Technical features
1/2.8" CMOS sensor
Maximum resolution 1080P (1920×1080)
Minimum illumination 0.002 lux at F1.5, 30 IRE, 0 lux with IR activated
Smart IR up to 80 m
Automatic illuminator control
4 IR illuminators
Motorized lens 2.7 mm to 12 mm autofocus IR illuminators
φ14 mount
Maximum aperture F1.5
Diagonal angle of view from 38° to 123°
Horizontal angle of view from 33° to 102°.
Vertical angle of view from 19° to 53°.
Minimum focusing distance of 0.5 m (0.5 ft)
Video
CVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
AHD: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
TVI: 1080P@25 ips in PAL and 1080P@30 ips in NTSC
CVBS: 960H
Resolutions 1080P (1920×1080) and 960H (960×576/960×480)
Switchable video output CVI, TVI, AHD and CVBS via BNC port
Auto day/night switching via ICR
Functionalities
BLC, HLC, 130 dB real WDR
Auto and area white balance
Automatic and manual gain control
3D NR noise reduction
Smart Lighting
Super Adapt
Mirror
Off/On Privacy Mask with 8 rectangular areas
Audio
Built-in 1-channel microphone
Coaxial audio
Communication interface
1 BNC port for CVI, TVI, AHD and CVBS video output
Power supply
12V DC ±30% power supply
Maximum power consumption 9.4 W with IR on
Environmental
Operating temperature -30 °C to +60 °C (-30 °C to +60 °C)
Storage temperature -30 °C to +60 °C (-30 °C to +60 °C)
Operating humidity below 95 % non-condensing
Storage humidity less than 95 % non-condensing
Degree of protection IP67
Physical characteristics
Full metal housing
209.6 mm × 90.4 mm × 90.4 mm dimensions
Net weight 0.55 kg
Gross weight 0.76 kg
Certifications
CE: EN55032:2015, EN 61000-3-2-2:2014, EN 61000-3-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017
FCC: CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014
UL: UL60950-1 and CAN/CSA C22.2 No.60950-1
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
