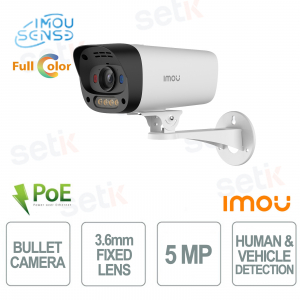

PS5E 5MP PoE Bullet Camera 3.6mm AI IP67 Night Vision and Active Deterrence - Imou

PS5E 5MP PoE Bullet Camera 3.6mm AI IP67 Night Vision and Active Deterrence - Imou

 
Optic calculation
Neu

IPC-PS5E-5V0-IMOU | PS5E 5MP is an outdoor PoE bullet camera with a 3.6mm F1.6 fixed lens , a 5MP (2880×1620) sensor and a field of view of up to 91° diagonal , ideal for clear and reliable video surveillance. It integrates Smart Color Night Vision with night vision up to 30 meters , red-blue warning lights and a 110 dB siren for more effective active deterrence. IMOU SENSE technology improves the detection of people and vehicles , while two-way audio enables real-time communication. It also supports PoE 802.3af or 12V DC , H.265/H.264 compression, IP67 protection and storage on MicroSD up to 512 GB , NVR or Cloud. Imou

Technical Data Sheet

Artikel-Nr.: IPC-PS5E-5V0-IMOU

Marke: IMOU

EAN: 6937479643763

Manufacturer Object ( [id] => 41 [name] => IMOU [description] =>

Imou verwendet intelligente und leicht zu bedienende Technologien, die für die Sicherheit von Haushalten sowie kleinen und mittleren Unternehmen geschaffen wurden. Alle Systeme sind mit Alexa und Google Home kompatibel. Bitten Sie das Gerät einfach, die Bilder zu zeigen, um immer unter Kontrolle zu haben, was uns am meisten am Herzen liegt.

[short_description] =>


Imou wurde mit dem Ziel gegründet, intelligente Lösungen anzubieten, die es jedem ermöglichen, ein komfortableres und sichereres Leben zu führen und den Alltag der Verbraucher zu vereinfachen, wie der offizielle Slogan "Enjoy Smart Life" verdeutlicht.

[id_address] => [date_add] => 2020-01-14 16:31:52 [date_upd] => 2026-02-19 17:36:36 [link_rewrite] => imou [meta_title] => Imou [meta_keywords] => imou [meta_description] => Imou wurde mit dem Ziel gegründet, intelligente Lösungen anzubieten, die es jedem ermöglichen, ein komfortableres und sichereres Leben zu führen und den Alltag der Verbraucher zu vereinfachen [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

IPC-PS5E-5V0-IMOU | IP PoE BULLET CAMERA 5MP 3K 3.6mm OPTIC



The IMOU PS5E 5MP is an outdoor PoE bullet camera with a 3.6mm F1.6 fixed lens , 5MP (2880×1620) sensor and a field of view of up to 91° diagonal , ideal for clear and reliable video surveillance. It integrates Smart Color Night Vision with night vision up to 30 meters , red-blue warning lights and a 110 dB siren for effective active deterrence. IMOU SENSE technology improves the detection of people and vehicles , while two-way audio enables real-time communication. It supports PoE 802.3af or 12V DC , H.265/H.264 compression, IP67 protection and storage on MicroSD up to 512 GB , NVR or Cloud.


Main specifications:

  • Lens: fixed 3.6mm F1.6
  • Resolution: 5MP
  • Night vision: up to 30m
  • AI: People and Vehicle Detection
  • Deterrence: siren + red-blue lights
  • Audio: two-way
  • Power supply: PoE / 12V DC
  • Protection: IP67
  • Storage: MicroSD up to 512 GB

Main features

✅ Optics:
The IMOU PS5E 5MP integrates a 3.6mm F1.6 fixed lens with a 1/3" Progressive CMOS sensor , offering a field of view of 76° horizontal, 41° vertical and 91° diagonal , suitable for detailed monitoring of entrances and external areas.

✅ Resolution:
It offers a maximum resolution of 5MP (2880 × 1620) with H.265/H.264 video compression , frame rate up to 20 fps and 8x digital zoom , combining high detail and efficient storage space management.

✅ Red-Blue Warning Lights :
It integrates red-blue warning lights that increase visual deterrence and, together with the 110 dB security siren , help discourage any unwanted presence in the video-monitored area.

✅ Human & Vehicle Detection:
The proprietary IMOU SENSE algorithm improves the accuracy of AI detection of people and vehicles , allowing you to quickly locate key subjects of interest in the scene.

✅ AOR Mode :
Always-On-Record (AOR) mode is designed to ensure continuous recording while optimizing storage space consumption , making it suitable for long-term video surveillance .

✅ Two-way Talk:
Thanks to the built-in microphone and speaker , the two-way audio function allows you to listen and communicate in real time with people near the camera.

✅ PoE/12V DC:
It supports power supply via IEEE 802.3af PoE or 12V DC 1A , offering installation flexibility; with PoE, power and data can pass through the Ethernet connection.

✅ Smart Color Night Vision:
It supports four night vision modes with Smart Color Night Vision technology and a range of up to 30 meters , designed to maintain useful images even in low light or darkness.

✅ Network:
It has 1 100 Mbps Ethernet port , supports the ONVIF standard for integration with compatible video surveillance systems and can be managed via the Imou App for iOS and Android .

Technical Data Sheet

Model IPC-PS5E-5V0-IMOU
Room
Image Sensor

1/3” Progressive CMOS
Max. Resolution

5MP(2880×1620)
Night Vision

30 m (98 ft) Distance
Focal Length

3.6mm Fixed Lens
Field of View

76°(H), 41°(V), 91°(D)
Video & Audio
Video Compression

H.265/H.264
Video Frame Rate

Up to 20fps Frame Rate
Focal Length

8×Digital Zoom
Sound & Light

Built-in Mic & Speaker
Red-Blue Warning Lights
Network
Ethernet Port

1 × 100Mbps Ethernet Port
Imou App

iOS, Android
Other

Onvif
Auxiliary Interface
Micro SD Card

Up to 512GB
Built-in Mic & Speaker

Yes
Reset Button

Yes
Notice Management
Smart Detection

Motion, Human, Vehicle
General
Power supply

PoE (802.3af)
DC 12V 1A Power Supply
Power Consumption

<12W
Material

Plastic+Metal (Mounting bracket)
Working Environment

-30℃ ~ +60℃;
Less Than 95%RH
Dimensions (L × W × H)

181.6× 90 × 83mm
(7.2 × 3.2 × 3.3inch)
Weight

403 g
Certification

THERE IS
What's in the box
Package Contents

Room ×1
Mounting bracket × 1
Screw Package ×1
Quick Start Guide ×1
Waterproof Connector ×1
Waterproof Plug ×1
Installation Position Map ×1
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
