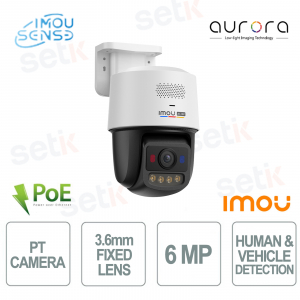

PU7L 6MP PoE Pan & Tilt Camera 3.6mm AI Full Color Smart Tracking - Imou

PU7L 6MP PoE Pan & Tilt Camera 3.6mm AI Full Color Smart Tracking - Imou

 
Optic calculation
Neu

IPC-PU7LP-6T0-IMOU | PU7L 6MP is an outdoor Pan & Tilt PoE camera with 3.6mm F1.0 fixed lens , 6MP sensor (3200×1800) and field of view up to 107 ° diagonal . It integrates Aurora Full-Color Night Vision with warm light up to 30 meters , 340° Pan and 0~90° Tilt movement, Smart Tracking and Auto Cruise for more complete coverage of the area. IMOU SENSE technology supports the detection of people and vehicles , along with Crossing Line Detection and Activity Zone. The equipment also includes two-way audio , red-blue warning lights , PoE or 12V DC power supply and MicroSD storage up to 512 GB , NVR or Cloud. Imou

Technical Data Sheet

Artikel-Nr.: IPC-PU7LP-6T0-IMOU

Marke: IMOU

EAN: 6937479645200

Manufacturer Object ( [id] => 41 [name] => IMOU [description] =>

Imou verwendet intelligente und leicht zu bedienende Technologien, die für die Sicherheit von Haushalten sowie kleinen und mittleren Unternehmen geschaffen wurden. Alle Systeme sind mit Alexa und Google Home kompatibel. Bitten Sie das Gerät einfach, die Bilder zu zeigen, um immer unter Kontrolle zu haben, was uns am meisten am Herzen liegt.

[short_description] =>


Imou wurde mit dem Ziel gegründet, intelligente Lösungen anzubieten, die es jedem ermöglichen, ein komfortableres und sichereres Leben zu führen und den Alltag der Verbraucher zu vereinfachen, wie der offizielle Slogan "Enjoy Smart Life" verdeutlicht.

[id_address] => [date_add] => 2020-01-14 16:31:52 [date_upd] => 2026-02-19 17:36:36 [link_rewrite] => imou [meta_title] => Imou [meta_keywords] => imou [meta_description] => Imou wurde mit dem Ziel gegründet, intelligente Lösungen anzubieten, die es jedem ermöglichen, ein komfortableres und sichereres Leben zu führen und den Alltag der Verbraucher zu vereinfachen [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

IPC-PU7LP-6T0-IMOU | 6MP PoE IP CAMERA 3.6mm LENS



The IMOU PU7L 6MP is an outdoor Pan & Tilt PoE camera with a 3.6mm F1.0 fixed lens , 6MP sensor (3200×1800) and a field of view of up to 107 ° diagonal . It offers Aurora Full-Color Night Vision with warm light up to 30 meters , 340° Pan and 0~90° Tilt movement, Smart Tracking and Auto Cruise for dynamic area coverage. IMOU SENSE technology supports the detection of people and vehicles , with Crossing Line Detection and Activity Zone. The equipment also includes two-way audio , red-blue warning lights , PoE or 12V DC power supply and storage on MicroSD up to 512 GB , NVR or Cloud.


Main specifications:

  • Lens: 3.6mm F1.0
  • Resolution: 6MP
  • Pan & Tilt: 340° / 90°
  • Night Vision: Full Color 30 m
  • AI: People and Vehicles
  • Tracking: Smart Tracking + Auto Cruise
  • Audio: two-way
  • Power supply: PoE / 12V DC
  • Storage: MicroSD up to 512 GB

Main features

✅ Optics:
The IMOU PU7L 6MP integrates a 3.6mm F1.0 fixed lens with 1/1.8" Progressive CMOS sensor , offering a field of view of 89° horizontal, 47° vertical and 107° diagonal , ideal for detailed video surveillance of outdoor environments.

✅ Resolution:
It offers a maximum resolution of 6 MP (3200 × 1800) with H.265/H.264 compression , frame rate up to 25/30 fps and 8x digital zoom , ensuring sharp images and efficient management of video streams.

✅ PT Camera :
The Pan & Tilt system allows for horizontal rotation up to 340° and vertical tilt from 0° to 90° , expanding area coverage and reducing unmonitored spots.

✅ Red-Blue Warning Lights :
It integrates red-blue warning lights designed to provide active visual deterrence , helping to deter any intruders or unwanted presences.

✅ Cross Line Detection :
The Crossing Line Detection function allows you to detect subjects crossing a virtual line , improving the control of entrances, borders and sensitive areas.

✅ Smart Tracking :
THE Smart Tracking technology allows the camera to automatically follow moving objects , using pan and tilt to keep them within the frame.

✅ Human & Vehicle Detection:
The AI Human & Vehicle Detection system allows you to quickly identify people and vehicles , making monitoring of relevant events in the video surveillance area more targeted.

✅ AOR Mode :
Always-On-Record (AOR) mode keeps recording active and is designed to optimize storage space , making extended video recording more efficient .

✅ Two-way Talk:
Thanks to the built-in microphone and speaker , the two-way audio function allows you to listen and communicate in real time with people in the camera area.

✅ PoE/12V DC:
It supports power supply via IEEE 802.3af PoE or 12V DC 1A , offering greater installation flexibility and allowing PoE to use the Ethernet connection for power and data.

✅ Aurora Full-Color Night Vision:
Aurora Full-Color Night Vision technology uses low-light imaging and a warm light with a range of up to 30 meters , delivering natural colors and clearer images even in low-light conditions.

✅ Network:
It has 1 100 Mbps Ethernet port , supports the ONVIF standard for integration with compatible video surveillance systems and can be managed via the Imou App for iOS and Android .

Technical Data Sheet

Model IPC-PU7LP-6T0-IMOU
Room
Image Sensor

1/1.8” Progressive CMOS
Max. Resolution

6MP(3200×1800)
Night Vision

Warm Light: 30m (98ft)
Focal Length

3.6mm F1.0 Fixed Lens
Field of View

89°(H), 47°(V), 107°(D)
Pan & Tilt

340°Pan & 0~90°Tilt
Video & Audio
Video Compression

H.265/H.264
Video Frame Rate

Up to 25/24fps Frame Rate
Focal Length

8×Digital Zoom
Sound & Light

Two-way Audio
Red-Blue Warning Lights
Network
Ethernet Port

1 × 100Mbps Ethernet Port
Imou App

iOS, Android
Other

Onvif
Auxiliary Interface
Micro SD Card

Up to 512GB
Reset Button

Yes
Reset Button

Yes
Notice Management
Smart Detection

Motion, Human, Vehicle, Activity Zone, Crossing Line
General
Power supply

PoE (IEEE 802.3af)
DC 12V 1A Power Supply
Power Consumption

<5.4W
Material

Plastic
Working Environment

-30℃ ~ +60℃;
Less Than 95%RH
Dimensions (L × W × H)

135.2×182.3×238.5mm
(5.32 × 7.18 × 9.39 inch)
Weight

759 g
Certification

THERE IS
What's in the box
Package Contents

Room ×1
Screw Package ×1
Quick Start Guide ×1
Waterproof Connector ×1
Waterproof Plug ×1
Installation Position Map ×1
Legal and Regulatory Information ×1
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
