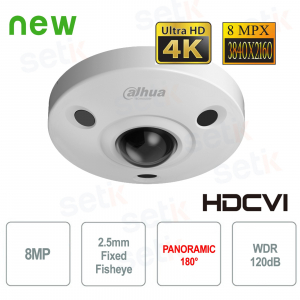

Dahua 8MP 4K HDCVI 360° Fisheye Camera with Night Vision, WDR, and IP67 Protection

Dahua 8MP 4K HDCVI 360° Fisheye Camera with Night Vision, WDR, and IP67 Protection
-58%

HAC-EBW3802 - 8MP with fisheye lens ensures 360° coverage in 4K , ideal for large environments such as shopping centers or offices. Thanks to intelligent dewarping, distortion correction directly on the device and IR night vision up to 15 m , it offers clear HDCVI images over coaxial cable, even in low light conditions. Compatible with ceiling, wall and floor installations, it ensures effective video analysis 24/7 with 120dB WDR and IP67/IK10 protection. Maximum reliability and plug & play simplicity even on existing analog infrastructures. Dahua

Technical Data Sheet

Artikel-Nr.: HAC-EBW3802

Marke: Dahua

EAN: 6939554920905

Disponibilità: 1

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HAC-EBW3802 | HDCVI 4K ULTRA-HD CAMERA UP TO 8 MEGAPIXEL FISHEYE


Dahua

The Dahua HAC-EBW3802 8MP panoramic camera is designed to offer 360° surveillance in 4K resolution with infrared night vision up to 15 meters. Equipped with a fisheye lens, HDCVI technology and built-in distortion correction, it ensures clear and detailed images in real time, both day and night. Ideal for large spaces such as shops, airports and offices, it supports up to 10 dewarping modes and stable video transmission up to 700 m, all with simple installation on existing coaxial infrastructure .

Main specifications:

- 4K resolution (3840x2160) with 1/2" 8MP CMOS sensor

- Panoramic fisheye lens with viewing angle H:180°, V:100°

- Built-in distortion correction and dewarping with up to 10 modes

- IR night vision up to 15m

- 120dB True WDR, 2D/3D NR, Embedded Audio

- IP67 and IK10 vandal-proof certifications, 12V DC power supply

Further details

Resolution:
Equipped with a 1/2" 8 Megapixel CMOS sensor, this camera supports a maximum resolution of 3840×2160 (4K) at 15fps, ensuring extremely detailed and clear images, ideal for video surveillance in critical or high-traffic areas .
Optics :
Equipped with a 2.5mm fixed lens with F2.0 aperture and a panoramic viewing angle of 180° horizontal and 100° vertical , it is designed to cover large spaces with a single unit, reducing the number of cameras required for installation.
Fisheye Panoramic View :
Thanks to the fisheye lens, the camera offers a 360° panoramic view , with up to 95% sensor utilization , allowing it to recognize a human face up to 10 meters away. It supports ceiling, wall, or floor installation and allows complete coverage even in very large environments such as airports, shops, or warehouses.
4 signals on a single coaxial cable :
Innovative HDCVI technology allows for the simultaneous transmission of video, audio, data, and power over a single coaxial cable. This significantly simplifies installation, reduces costs, and also enables two-way communication for remote control or alarm activation.
Multiple outputs :
The camera simultaneously supports HDCVI and CVBS video signals via dual BNC connectors, making it compatible with both existing analog systems and new installations. This dual output also facilitates testing and maintenance in the field .
Long distance transmission :
Thanks to the reliability of HDCVI technology, the camera can transmit high definition video up to 700 meters via RG59 coaxial cable and up to 300 meters via UTP cable , maintaining image quality without signal loss .
Wide Dynamic Range (WDR) :
True 120dB WDR ensures balanced images even in high-contrast lighting conditions (brightly lit areas and shadowed areas), automatically adapting exposure to optimize the visibility of dark and bright areas in a single scene.
Protection :
The rugged, IK10- certified vandal-proof design, combined with IP67 protection against dust and water, makes the camera suitable for harsh environments, both indoors and outdoors. It withstands temperatures from -30°C to +60°C and has a power supply tolerance of ±25%, with lightning protection up to 4KV.
HDCVI Dome Fisheye 8MP Camera - Dahua

Technical data sheet

Model HAC-EBW3802
Room
Image Sensor 1/2" 8MP CMOS
Effective Pixel 3840(H)×2160(V)
Scanning System Progressive
Electronic Shutter Speed

PAL:1/4s~1/100,000s

NTSC:1/3s~1/100,000s

Min. Illumination 0.01Lux/F2.0 (Color), 30IRE,0lux IR on
S/N Ratio More than 65dB
IR Distance 15m
IR On/Off Control Auto (ICR)/Color/B/W
IR LEDs 3
Audio Built-in microphone
Lens
Focal Length 2.5mm
Max Openings F2.0
Focus Control N/A
Angle Of View H: 180° ,V:100°
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Video
Resolution

8MP (3840×2160)/4M(2560x1440)

Frame Rate

PAL:3840×2160@12.5fps,2560x1440@25fps;

NTSC:3840×2160@15fps,2560x1440@30fps;

Video Output

1-channel HDCVI 4K video output & 1-channel CVBS video output

Day/Night Auto (Electronic) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR 120dB
Gain Control AGC
Noise reduction 2D/3D
White balance Auto / Manual
Smart IR Auto / Manual
Interface
Alarm I/O 2/1
Electrical
Power Supply DC12V ±25%
Power Consumption 7.4W (IR ON)
Environmental
Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance IP67&IK10
Casing Aluminum
Dimensions Φ149.8mm x 47.7mm(Φ5.9"x 1.88")
Net Weight 0.56kg (1.23lb)
Gross Weight 0.92kg (2.02lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
