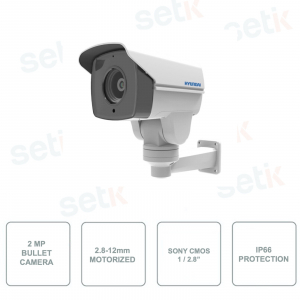

HYU-113N is a 2 Megapixel motorized 4-in-1 Bullet camera , equipped with a 1/2.8" Sony CMOS sensor with Full HD 1080p resolution (1920×1080) for clear and detailed images. It integrates a 2.8-12 mm motorized varifocal lens with autofocus and IR infrared illumination up to 80 meters , ensuring effective video surveillance even in the dark. It supports AHD, HDCVI, HDTVI and CVBS technologies, with Real WDR, BLC and ROI to optimize image quality. The motorized positioner offers a horizontal rotation of 250° and a vertical rotation from -10° to +55° , with 255 programmable presets . Thanks to IP66 protection , surge protection and video transmission up to 300 meters on coaxial cable, it is ideal for professional video surveillance systems in indoor and outdoor environments.
HYU-113N | 4-IN-1 2-MEGAPIXEL CAMERA - 2.8MM - 12MM MOTORIZED LENS - IR 50M
The Hyundai HYU-113N is a 2 Megapixel motorized 4-in-1 Bullet camera , equipped with a 1/2.8" Sony CMOS sensor with Full HD 1080p (1920×1080) resolution for sharp and detailed images. It integrates a 2.8-12 mm varifocal lens with autofocus, IR night vision up to 80 meters and Real WDR, BLC and ROI technologies to optimize video quality. It supports AHD, HDCVI, HDTVI and CVBS formats, ensuring versatility in analog video surveillance systems. The motorized positioner offers horizontal movement up to 250° , vertical from -10° to +55° and 255 programmable presets. Thanks to IP66 protection , surge protection and video transmission up to 300 meters on coaxial cable, it is ideal for professional video surveillance of indoor and outdoor environments.
Main specifications:
- Type: 4-in-1 Motorized Bullet Camera
- Resolution: 2 MP Full HD 1080p
- Sensor: 1/2.8" Sony CMOS
- Lens: Varifocal 2.8-12mm with autofocus
- Night vision: IR up to 80 meters
- Video technology: AHD, HDCVI, HDTVI, CVBS
- Image functions: Real WDR, BLC, ROI
- Movement: Horizontal 250°, vertical -10°/+55°
- Preset: 255 programmable positions
- Transmission: Up to 300 meters on coaxial cable
- Protection: IP66 and surge protection
- Power supply: 12V DC
Further details
The Hyundai HYU-113N camera is equipped with a 2.8-12mm motorized varifocal lens with autofocus , which allows you to adjust the zoom and obtain automatic focus, adapting the framing to different video surveillance needs and ensuring clear images both on large areas and on specific details.
The Hyundai HYU-113N Bullet camera supports 4-in-1 video technology , with compatibility for the four analog standards AHD, HDCVI, HDTVI and CVBS , offering versatility in integration with different video surveillance systems. It features a BNC video output, OSD menu and support for the Pelco protocol for managing control functions, while the OSD menu and lens control are not compatible with NETXGEN ZVR video recorders.
Technical data sheet
| Model | HYU-113N |
| Room | |
| Image Sensor |
1/2.8” Sony CMOS, 2MP @ 1080P |
| Digital Resolution | 1080P (1920x1080) |
| Frames per second | 25 fps @1080P |
| Min. Illumination | 0.005 lux F1.2 (color, AGC On) / 0 lux IR On |
| IR Illumination | Smart IR: EXIR 2.0 technology - 50 meters |
| TVI Output | RS485 (Pelco-D): 4in1 : HDCVI / HDTVI / AHD / 960H |
| Lens |
2.8~12 mm motorized lens |
| Day/Night | Dual ICR, removable mechanical Filter |
| Smart IR | 4 LED arrays, 50m |
| OSD Menu | Via coaxial (300m range) |
| Backlight Compensation | BLC, Real WDR, ROI zones |
| Power Supply | 12V DC (not included) |
| Smart IR | 4 LED Arrays, 50m |
| Working Temperature | -40°C~+60°C |
| Protocol | Pelco |
| Speed | 0.5°~15°/sec. (H), 0.5°~10°/sec. (V) |
| Positioner | 0°~250° (H), -10°~55° (V) |
| Setup |
255 presets, 8 rounds, 4 patterns (by RS485) |
| Protection | IP66, Lightning Proof |
| Dimensions | 153x93x130 mm |
