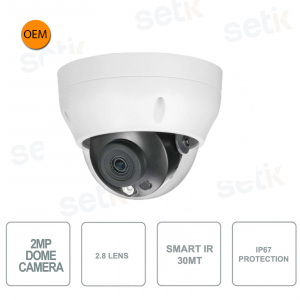

DAHUA IPC-D2FG2 Outdoor Dome IP Camera - 2MP - Smart IR 30m - 2.8mm Lens

DAHUA IPC-D2FG2 Outdoor Dome IP Camera - 2MP - Smart IR 30m - 2.8mm Lens
BEST PRICE -59%

Dahua OEM Series | equivalent of IPC-HDPW1230R1-S5, Dahua IPC-D2FG2 ONVIF PoE outdoor IP camera, 2MP 2 Megapixel 1080P, 2.8mm lens, 1/2.7" H.265 CMOS sensor. IR LED 30MT, Digital WDR , IP67.

Artikel-Nr.: IPC-D2FG2

Marke: Dahua

EAN: 2123456791433

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DAHUA: UNTER DEM EINSTANDSPREIS×


 UNGLAUBLICHE RABATTE
auf eine Auswahl von DAHUA-Produkten
 Entdecken Sie die Promo jetzt >>

TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Prodotto OEM


DAHUA OEM SERIES:

Equivalent to the Dahua IPC-HDPW1230R1-S5 model (aesthetics, firmware). Does not have Dahua logos.

ONVIF® POE IP CAMERA - 2 MEGAPIXEL 2.8MM - SMART IR 30MT - IP67

Made by Dahua
ONVIF® PoE Outdoor IP Camera - Dahua

2Megapixel Resolution - 1/2.7" CMOS Sensor - 2.8mm Fixed Lens - H.265 Compression.
AWB, AGC, BLC, HLC, digital WDR, 3D-DNR, 4 ROI, mirror, privacy mask. ONVIF® & PoE , CGI, P2P. IP67
Dahua OEM Series: Without Dahua logos - 12V DC power supply (not included) - 24-month warranty

Product details

  • ONVIF® PoE Outdoor IP Camera - Dahua
  • Dahua OEM Series : Equivalent to the Dahua IPC-HDPW1230R1-S5 model (appearance, firmware). Does not have Dahua logos.
  • Resolution: 2 Megapixels 2MP
  • 1/2.7 " Progressive Scan CMOS image sensor
  • Optics: 2.8mm
  • H.265 Video Compression
  • DWDR, day/night with ICR filter, 3D-DNR, AWB, AGC, BLC, HLC, mirror protection, privacy mask
  • Smart IR illuminator 1 LED 30MT
  • IP67 Protection (Dust/Immersion)
  • 12V DC Power Supply (Not Included)
  • Dimensions: 122mm × Φ98.1mm
  • 24 Month Warranty

Technical data sheet

IPC-D2FG2
Room
2 Megapixel 1/2.7" CMOS Sensor
Compression formats: H.265 / H.264 / MJPEG
Digital resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
Dual Stream
Stream 1: 1080P (1~25fps)
Stream 2: D1 (1 ~ 25 fps)
Day / night mode with removable mechanical filter
Smart IR: 1 LED, 30 meters
0.01 lux F2.0
2.8mm fixed lens
Viewing angle: 105° (H), 57° (V), 125° (D)
White Balance: Auto, Natural, Lamppost, Outdoor, Manual, Regional Settings
Automatic and manual gain control
Backlight compensation: BLC, HLC
Digital WDR
3D-DNR digital noise reduction
4 ROI zones
Video sensor with 4 rectangular zones
Privacy mask with 4 rectangular zones
Mirror mode
Network interface: RJ45 (10/100 Base-T)
Network protocols: IPv4, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast
Compatible with ONVIF® (Profile S), CGI, P2P, Genetec
Up to 20 users
Remote viewing through IE, Chrome and Firefox browsers
Compatible with IOS and Android mobile devices
Power: 12V DC
Max consumption: <4.3W
Supports PoE (802.3af)
Storage temperature of -40°C ~ +60°C
-40°C ~ +60°C operating temperature
Relative humidity: <95%
Protection degree IP67
Plastic shell
Dimensions: Ø122 x 98.1 mm
Weight: 340g
Does not include power supply

Further details

ONVIF®

All Onvif cameras are the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a stand-alone camera that can never be used in conjunction with recording systems.

This camera supports Onvif version

PoE power supply The advantage of a PoE camera is clear, it allows it to be powered with the same cable with which it communicates without running additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

D-WDR (Digital Wide Dynamic Range) is the software solution of the more powerful WDR integrated in the DSP, exactly as happens with digital zoom compared to optical zoom, it is a software simulation of emulation of WDR technology, however extremely useful in circumstances of strong contrast.

Risoluzione Full-HD 1920x1080

This camera features a resolution of 2 Megapixel 1080P FULL HD!

2.8mm fixed optics

Illuminatore IR 20 MT

Infrared illuminator with REAL range up to 30MT for night vision.

SMART IR 1 LED technology.
The light emitted by the LEDs is adapted depending on the object being framed.

Funzione Day/Night. Permette di adatta la lente alla visione notte

It allows you to adapt the lens to Night/Day vision and the consequent automatic management of the IR illuminator.
Immagine che evidenzia la funzione Day/Night

ICR The IR CUT FILTER is a mechanical filter that allows for correct image display in daytime conditions. It filters out typical infrared frequencies, thus improving image quality. At night, the filter is removed as it is necessary to capture typical IR frequencies.
AGC

The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and requires no specific settings.

BLC

BLC (BACK LIGHT COMPENSATION) is one of three solutions for managing contrasty images. The BLC function allows for a reasonable adjustment to all those situations where shooting is difficult (parking lot entrances or exits, license plate shots, presence of particular lights, etc.).

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

12VDC_Power

12V DC power supply NOT included!

Materiale con cui è stato creato il dispositivo This camera features a metal and plastic body.
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Brochure: not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
