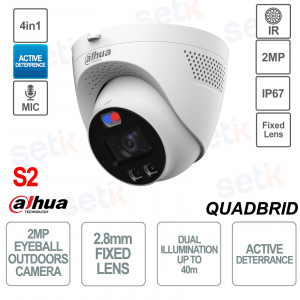

Eyeball Camera - 4in1 - 2.8mm Lens - Active Deterrence - S2 Version

Eyeball Camera - 4in1 - 2.8mm Lens - Active Deterrence - S2 Version
IN DER FÖRDERUNG -58%

Dahua Eyeball Camera - Outdoor - HAC-ME1239TQ-A-PV-S2 - S2 Version - 4in1 CVI CVBS AHD TVI switchable - 2.8mm fixed lens - 2MP 1080p resolution - Active deterrence with siren and light alarm - Dual illumination Smart IR 40m and warm light 40m - WDR 130dB - BLC - HLC - AWB - Mirror Mode - Privacy Masking - Microphone - IP67 outdoor protection - Made of plastic and metal.

Artikel-Nr.: HAC-ME1239TQ-A-PV-S2

Marke: Dahua

EAN: 6923172539410

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DAHUA OUTDOOR CAMERA - 4IN1 - 2MP - 2.8MM - SMART IR 40MT - WARM LIGHT 40M - MICROPHONE - DAHUA - HAC-ME1239TQ-A-PV-S2

Made by Dahua
Dahua Eyeball 4-in-1 Active Deterrence Outdoor Camera with Dual Illumination - HAC-ME1239TQ-A-PV-S2
S2 Version - 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable on BNC port
2MP 1080p Full HD Resolution - 2.8mm fixed lens and 2MP CMOS sensor - 1 BNC 4in1 CVI/TVI/AHD/CVBS Video Output
Smart IR LED 40MT, warm light 40m (double lighting) - 3D NDR, BLC, HLC, WDR 130dB - On-board microphone - IP67 protection for outdoor use - Made of plastic and metal - Active deterrence : siren and blue and red light signals.

Product details

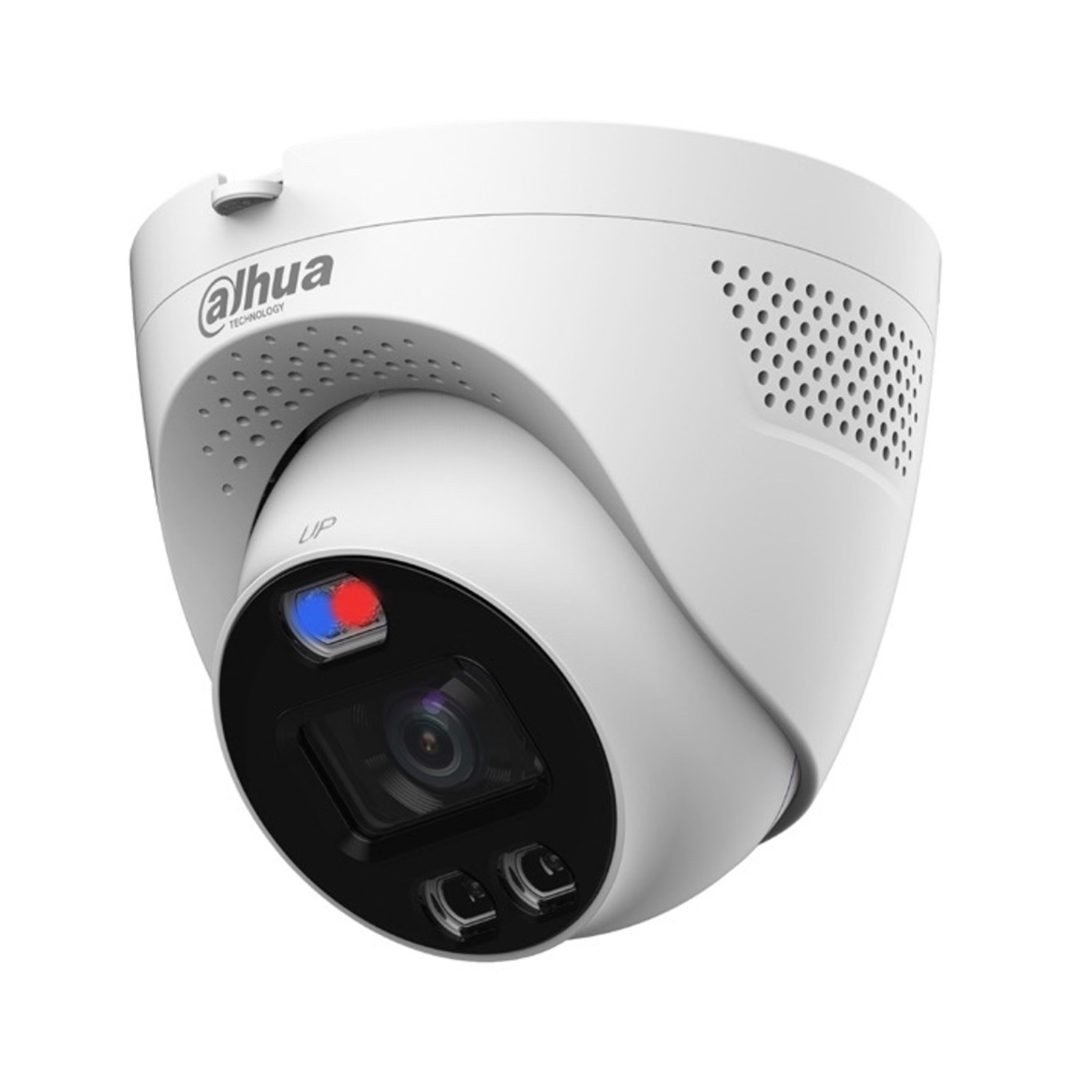

Telecamera Dome con 4 tecnologie in 1, risoluzione 5MP e ottica fissa 3.6mm. IR LED 30MT
  • 4in1 Eyeball outdoor camera - Dahua - HAC-ME1239TQ-A-PV-S2
  • Version S2
  • 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG
  • Resolution: 2MP Full HD 1080p
  • Active deterrence: siren and blue/red lights
  • Built-in microphone
  • 2MP progressive scan CMOS image sensor
  • 2.8mm fixed optics
  • Functions: BLC, HLC, WDR 130dB, 3D NDR, AGC, AWB, Mirror Mode, Privacy Masking
  • Double lighting
  • Smart IR LED 40MT illuminator
  • 40m warm light illuminator
  • 1 BNC 4in1 CVI/TVI/AHD/CVB Video Output
  • Built-in microphone
  • 12V DC power supply not included
  • Suitable for outdoor and indoor environments
  • IP67 protection (dust / immersion)
  • Material: metal and plastic
  • Dimensions: Φ109.9 mm × 100.9 mm
  • Operating temperature: –40 °C to +60 °C
  • Product net weight: 0.32Kg
  • 24 month warranty

Technical data sheet

0.32 kg (0.71 lb)
HAC-ME1239TQ-A-PV-S2

Room

Pixel

2 MP

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.001 lux@F1.6 (Color, 30 IRE)
0.0001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR light)

2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Gross Weight

0.50 kg (1.10 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

Further details

This camera has a FULL HD resolution of 1920x1080

2MP 1080p 1920x1080p Full HD progressive scanning resolution.

2MP CMOS image sensor.

Tecnologia Quadribrida This camera is a QUAD HYBRID (4 integrated technologies)
These cameras are at the same time, Analog , Ahd , Hdcvi and Hdtvi .

2.8mm fixed optics

Illuminatore IR fino a 30mt

Infrared illuminator with approximate maximum range of 40m

It also includes a warm light illuminator up to 40m.

This camera also features SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted depending on the object being framed. Tecnologia Smart IR

ULTRA_WDR_TLC.jpg ULTRA WDR up to 130dB
WDR (Wide Dynamic Range): This is the professional solution when working in high-contrast light/shadow conditions. It's essential when shooting from inside to outside, license plates, shadowed areas, or any situation where there's uneven lighting.
The higher the dB value, the greater the camera's ability to handle the strong contrast of the backlight. Common WDRs typically reach 80 dB, while the human eye can detect a difference of up to 100 dB. This model reaches up to 120 dB, managing very high contrast levels.
Immagine esempio funzione WDR 120db
Active deterrence

Active deterrence :

This camera integrates Active Deterrence functions.
Warns of intruders with built-in white light and audible alarm (built-in speaker)

Promptly reports intruders and takes action even before the break-in occurs
Dahua cameras with IoT Active Deterrence functions

This camera emits alarm signals with a siren and red and blue lights.

Telecamere Dahua con funzioni IoT Active Deterrence

ICR The IR CUT FILTER is a mechanical filter that allows for correct image display in daytime conditions. It filters out typical infrared frequencies, thus improving image quality. At night, the filter is removed as it is necessary to capture typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) the light compensation is one of the most complex operations possible, the BLC function allows a discrete adaptation to these situations


Click to Enlarge

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

Microfono integrato This camera features built-in microphone
12VDC_Power 12VDC power supply not included
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
