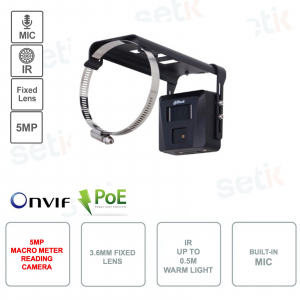

Dahua IPC-HUM8531M-V-LED 5MP camera with 3.6 mm lens and 120 dB WDR

Dahua IPC-HUM8531M-V-LED 5MP camera with 3.6 mm lens and 120 dB WDR
-56%

IPC-HUM8531M-V-LED - is a 5MP camera designed for macro reading and precision video surveillance, thanks to the 1/2.7" CMOS sensor and resolution up to 2560×1920@30fps. The 3.6 mm fixed lens with a wide viewing angle (79.6°) ensures clear images even at close range (recommended installation between 5 and 50 cm). It supports H.265 codec for bandwidth saving, 120 dB WDR to manage strong light contrasts and integrated warm light for realistic colors. Equipped with intelligent functions such as motion detection, abnormal alarms and integrated microphone, it offers IP67 protection and resistance to external agents. A compact and reliable network camera, ideal for professional applications and covert monitoring scenarios. Dahua

Technical Data Sheet

Artikel-Nr.: IPC-HUM8531M-V-LED

Marke: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HUM8531M-V-LED | DAHUA 5MP ONVIF® POE MINI IP CAMERA - MACROMETRIC READER - 3.6MM LENS - MICROPHONE


Dahua

The Dahua IPC-HUM8531M-V-LED 5MP network camera is designed for covert and precision video surveillance applications, ideal for environments such as banks and advertising displays. Thanks to the 1/2.7" CMOS sensor and resolution of up to 2560x1920@30fps, it ensures clear and detailed images even in low light conditions. The 3.6 mm fixed lens with a wide viewing angle (79.6°) offers clear close-up footage, while the 120 dB WDR and integrated warm light ensure realistic and balanced colors. IP67 protection, a built-in microphone and intelligent anomaly detection functions make this network camera compact, durable and reliable.

Main specifications:

- 5MP 1/2.7" CMOS sensor

- Maximum resolution 2560×1920@30fps

- H.265/H.264 codec for bandwidth saving

- 3.6mm fixed lens with 79.6° viewing angle

- WDR 120 dB and integrated warm light illumination

- Intelligent functions: motion detection, alarms and built-in microphone

- IP67 protection for dust and water resistance

Further details

Optics :
The Dahua IPC-HUM8531M-V-LED is equipped with a 3.6mm fixed lens with F2.0 aperture, capable of offering a wide field of view (up to 93.4° diagonally). This allows for precise monitoring of close-up areas, making it ideal for applications in confined spaces. .
Resolution:
Thanks to the 1/2.7" CMOS sensor and a maximum resolution of 5MP (2560 × 1920) at 30 fps, the camera guarantees clear, detailed and smooth images, even in low light conditions .
Motion Detection :
By integrating motion detection technology, the camera triggers alarms or recordings whenever it detects moving objects in the frame, increasing the level of security and responsiveness of the system .
WDR (Wide Dynamic Range) :
With true 120dB WDR , the camera handles scenes with high contrast between light and dark areas, ensuring optimal visibility even in strong backlighting or shadows.
Microphone:
It is equipped with a built-in microphone that allows you to record audio along with the video, offering more complete and detailed monitoring, useful in professional or advanced security contexts.
Network Camera:
As an IP camera, it supports standard ONVIF protocols, multiple streaming, and microSD storage up to 256 GB or NAS. It can be managed remotely via DSS software or DMSS mobile app, making it versatile and easily integrated into existing surveillance networks .
IPC-HUM8531M-V-LED dimensions

Technical data sheet

IPC-HUM8531M-V-LED

Room

Image Sensor

1/2.7" CMOS

Max. Resolution

2560 (H) × 1920 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.02 lux@F2.0 (Color, 30 IRE)
0.0002 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

0.5 m (1.64 ft)

Cyber Security

Configuration encryption; trusted execution; digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2.2W (12VDC); 2.5W (PoE)
Max. (H.265+ warm light + WDR + motor driving+ glass heating): 5 W (12 VDC); 5.8W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

66 mm × 65 mm × 31.6 mm (2.60" × 2.56" × 1.24") (L × W × H)

Net Weight

166 g (0.37 lb)

Gross Weight

398 g (0.88 lb)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
