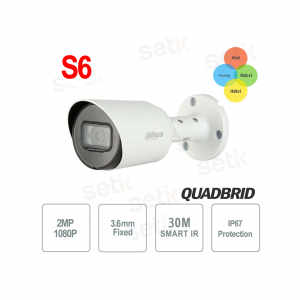

HAC-HFW1200T-S6 | 4IN1 BULLET CAMERA FIXED LENS 3.6mm - 2MP

The Dahua HAC-HFW1200T-S6 is a 2MP HDCVI bullet camera with 3.6mm fixed lens and built-in microphone, ideal for outdoor environments thanks to IP67 protection. It offers Full HD 1080p resolution at 30 fps, IR illumination up to 30 meters, Smart IR technology and 3DNR noise reduction. With the Super Adapt function and 4-in-1 transmission on coaxial cable (video, audio, data and power) up to 700 meters, it ensures clear images even in difficult conditions.
Main specifications:
- 2MP Full HD 1080p at 30fps
- 3.6mm fixed optics
- Built-in microphone for audio transmission via coaxial
- IR Smart up to 30 meters with automatic adjustment
- Super Adapt for intelligent image adjustment
- 4-in-1 transmission (video, audio, data, power)
- IP67 protection and power supply tolerance ±30%
- Compatible with CVI/TVI/AHD/CVBS
Further details

Technical data sheet
Model | HAC-HFW1200T-S6 | ||||||||||||
Room | |||||||||||||
Image Sensor | 2MP CMOS | ||||||||||||
Effective Pixel | 1920(H)×1080(V), 2MP | ||||||||||||
Scanning System | Progressive | ||||||||||||
Electronic Shutter Speed |
PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
||||||||||||
Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
||||||||||||
Y/N Ratio | >65dB | ||||||||||||
IR Distance | Up to 30m (98feet) | ||||||||||||
IR On/Off control | Auto / Manual | ||||||||||||
IR LEDs | 1 | ||||||||||||
Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
||||||||||||
Lens | |||||||||||||
Lens Type | Fixed focal | ||||||||||||
Mount Type | M12 | ||||||||||||
Focal Length | 3.6mm | ||||||||||||
Max Openings | F2.0 | ||||||||||||
Field of View | H: 102°; V: 60°; D: 129° | ||||||||||||
Iris Control | Fixed | ||||||||||||
Close focus distance | 0.7 m (2.30 ft) | ||||||||||||
Pan/Tilt Range |
|
||||||||||||
Video | |||||||||||||
Resolution |
1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
||||||||||||
Video Frame Rate |
CVI: |
||||||||||||
Day/Night | Auto (ICR) / /Color/B/W | ||||||||||||
BLC Mode | BLC / HLC / DWDR | ||||||||||||
WDR | DWDR | ||||||||||||
Gain control | Car | ||||||||||||
Noise reduction | 3D NR | ||||||||||||
White Balance | Auto / Manual | ||||||||||||
Illumination Mode | Smart IR | ||||||||||||
Mirror | Yes | ||||||||||||
Privacy Masking | Off/On (8 areas, rectangle) | ||||||||||||
Certifications | |||||||||||||
Certifications |
CE-LVD: EN 62368-1; |
||||||||||||
Port | |||||||||||||
Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||||||||||
Power | |||||||||||||
Power Supply | 12V DC ±30% | ||||||||||||
Power Consumption | Max 3.2W (12VDC, IR on) | ||||||||||||
Environmental | |||||||||||||
Operating Consumption |
-40°C ~ +60°C (-40°F ~ +140°F) /<95% (RH), non-condensing |
||||||||||||
Storage conditions | -40°C ~ +60°C (-40°F ~ +140°F) /<95% (RH), non-condensing | ||||||||||||
Ingress Protection & Vandal Resistance | IP67 | ||||||||||||
Construction | |||||||||||||
Casing | Metal | ||||||||||||
Dimensions | 174.5 mm × 70.6 mm × 72.3 mm (6.87" × 2.78" × 2.85") | ||||||||||||
Net Weight | 0.34 kg (0.75 lb) | ||||||||||||
Gross Weight | 0.46kg (1.01lb) | ||||||||||||
Installation | Wall mount; ceiling mount; vertical pole mount |
