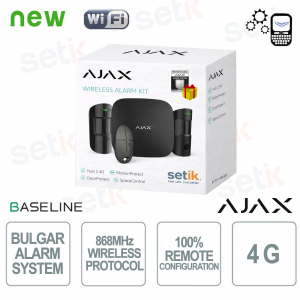

AJAX StarterKit 4G Wireless GPRS / Ethernet - 4G - Black

AJAX StarterKit 4G Wireless GPRS / Ethernet - 4G - Black


51173.134.BL1 Ajax StarterKit 4G Black professional wireless home alarm system with two-way wireless communication , Black version
4G Starter Kit 51173.134.BL1 #51173

♦ Panel with battery backup | 38240.108.BL1
♦ PIR Motion Detector | 38194.09.BL1
♦ Magnetic door/window contact 38098.03.BL1
♦ Remote Control | 38167.04.BL1


>> FREE TWO AJAX SIGNS (1 ADHESIVE AND 1 ALUMINUM)


Artikel-Nr.: 51173.134.BL1

Marke: Ajax Systems

EAN: 4823114027819

Disponibilità: 7

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


KOSTENLOSES TVCC-SCHILD!×


Mit allen >> AJAX KITS

TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Premi Ajax Awards

51173.134.BL1 | AJAX COMPLETE STARTERKIT FOR TWO-WAY WIRELESS BURGLAR ALARM - 4G - BLACK

FREE AJAX SIGNS (1 STICKER AND 1 ALUMINUM)


Prodotto Ajax

THE NEW GENERATION OF WIRELESS SECURITY SYSTEMS!

The Ajax Kit has everything you need to protect your premises. Sensitive detectors monitor every movement inside, while a powerful 4G hub connects them to the outside world. A wide range of security devices can be integrated to increase the system's protection. 3-year warranty! 51173.134.BL1 #51173

WHAT DOES THIS KIT INCLUDE?
-
1x Alarm HUB 38240.108.BL1
- 1x Wireless PIR Detector 38194.09.BL1
- 1x Magnetic door contact 38098.03.BL1
- 1x Radio control 38167.04.BL1
>> 1x Ajax Sticker | Gift! <<
>> 1x Ajax Aluminum Sign | Gift! <<


Product details

cartelloajax.png cartelloajax.png

SUPER GIFT | 1x AJAX PROTECTED AREA STICKER SIGN & 1X AJAX ALUMINUM PROTECTED AREA SIGN

AJAX Custom Intrusion Detection System Protected Area Sticker Sign
Durable and with customizable text. Dimensions: A5 21 x 14.8 cm.
&
Aluminum Sign Protected Area by Intrusion Detection System, Customized AJAX Alarm System
Durable and with customizable text. Dimensions: A5 21 x 14.8 cm.


Hub Ajax - AJ-HUB-B

Ajax Hub - The Brain of the Security System | 38240.108.BL1

Device capable of controlling all devices, collecting their data, using communication via Ethernet and/or GPRS

- Analyze threats

- Filters false alarms by only informing you of a real threat.

- Tamper-proof, with activations and connectors inside the device

- Jeweller technology that allows the detectors to be placed up to 2,000 meters away

- Connection via GSM (GSM also as a backup connection in case of internet interruption)

- Management of up to 100 devices

- Up to 50 users supported

- SIM Card Support: 2 SIM 4G

- MotionCam support: Ajax sensors with built-in camera and pet immunity

- Alert in case of power failure

- Internal battery with up to 16 hours of battery life (without power supply)

- The new devices can be connected with a simple switch and with the help of QR codes

- Check detectors every 12-300 seconds (adjustable time)

- Radio interference detection, encrypted channels in case of sabotage

- Jeweller 868MHz communication protocol

- Power supply: 110-240V AC

- Quick installation

- Color: Black

- Dimensions: 163 x 163 x 36 mm

Rivelatore di movimento PIR con pet immunity

Ajax MotionProtect - PIR Detector with Pet Immunity | 38194.09.BL1

Device capable of detecting any intruder through movement, ignoring the movement of pets.

- Wireless PIR detector

- Analyzes movement with 12m coverage

- Pet Immunity : Ignores the movement of small pets (up to 20kg / height 50cm)

- Ignore drafts and air conditioners

- Sensitivity adjustable on 3 levels

- Works up to 2,000 meters from the HUB

- Alarm signal LED

- Tamper-evident protection

- Jeweller 868MHz communication protocol

- Connects to the Ajax Hub with a simple switch and with the help of QR codes

- Can work with a third-party security system via Ajax integration modules (uartBridge and ocBridge/ocBridge Plus)

- Power supply: CR123A battery

- Supply voltage 3V

- 7-year battery life

- Quick installation

- Color: Black

- Dimensions: 110 x 65 x 50 mm

Rivelatore universale di apertura porte e finestre

Ajax DoorProtect - Magnetic Door/Window Contact | 38098.03.BL1

Device capable of detecting the opening of doors and windows

- Universal Detector

- Recognizes the opening of doors and windows, even on different floors

- Miniaturized dimensions for greater compatibility with window frames

- Works up to 2,000 meters from the HUB

- Possibility of connecting an external detector via wired input

- Jeweller 868MHz communication protocol

- Connects to the Ajax Hub with a simple switch and with the help of QR codes

- Can work with a third-party security system via the uartBridge and ocBridge/ocBridge Plus modules

- Equipped with anti-tampering device

- Radio interference recognition

- Encrypted communication

- The magnet has a power that allows installation up to 20 mm from the main unit

- Power supply: CR123A battery

- Supply voltage 3V

- 7-year battery life

- Color: Black

- Dimensions: 20 x 90 mm

Telecomando controllo remoto

Ajax SpaceControl - The remote control for your security system | 38167.04.BL1

Remote control with a truly space-age design!

- Remote control

- Operation up to 1,000 meters from the HUB, in open space

- Variable code to prevent signal copying

- Possibility of partial insertion of the system

- Anti-aggression button

- Jeweller 868MHz communication protocol

- Remote control authentication to prevent sabotage

- Encrypted messages

- 4 Keys

- Radio interference recognition

- Encrypted communication

- The magnet has a power that allows installation up to 20 mm from the main unit

- Power supply: CR2032 battery

- Supply voltage 3V

- Battery life 5 years

- Color: Black

- Dimensions: 65 x 37 x 10 mm

Ajax - perché scegliere gli allarmi Ajax

WHY CHOOSE AJAX ALARMS?

Ajax is synonymous with quality and ease of use.
All Ajax products use the latest generation wireless technology and can be programmed directly from your smartphone or PC.

Thanks to the User and Pro applications , it is possible to have complete virtual control of the entire alarm system, 24 hours a day.

Here's the real difference compared to other competitors!

With just a few simple taps , you can:

♦ Arm / Disarm the alarm

♦ Get instant notifications

♦ Get detailed information about the device status

♦ Perform remote testing and configurations

♦ Automatic updates

Gestione dell'impianto d'allarme da remoto con APP USER E PRO di AjaxAjax Security System Applicazione Mobile

Technical data sheet

Model: Alarm 51173.134.BL1
Complete set Intelligent control panel
Wireless motion detector
Wireless opening detector
Wireless key fob
Maximum number of connected devices 100
Maximum number of users

50

Mobile applications iOS 9.1 and later
Android 4.1 and later
Alarm signal delivery time

0.15 s

Battery life

Up to 7 years

Jeweler radio technology Communication range with central unit — up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies — 868.0—868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12−300 s
Communication channels Ethernet, GSM (850/900/1800/1900 MHz)
SIM card support Micro SIM 2G
Power supply Mains supply: 110−250 V
Up to 15 hours of offline operation when Ethernet is switched off
Video surveillance IP video cameras with RTSP
Model
38240.108.BL1
Classification Security system control panel
Color White, black
Installation method Indoors
communication channels 2 SIM cards
2G (GSM900/DCS1800 (B3/B8))
3G (WCDMA 850/900/2100 (B1/B5/B8))
LTE (FDD B1/B3/B5/B7/B8/B20/B28)
Ethernet
Communication protocols Encrypted two-way radio protocols:
Jeweler — for transmitting events and alarms.
Wings — for transmitting photos.
Radio communication range Up to 2000 m without obstacles
Radio frequency band 866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5MHz
921.0 – 922.0 MHz
(depending on the sales region)
Radio signal modulation GFSK
Maximum effective radiated power (ERP) ≤ 25 mW
Polling interval 12–300 s
(set by administrator in the app)
Time for alarm delivery from detector to hub 0.15 s
Time for photo delivery from detector to hub up to 9 s at default settings
Number of connected devices up to 100 including range extenders and sirens
Number of connected ReX up to 5
Number of connected sirens up to 10
Number of security groups up to 9
Number of users up to 50
Video surveillance up to 25 cameras or DVRs
Number of rooms up to 50
Number of scenarios up to 32
Central Monitoring Station communication protocols SurGard (Contact ID)
SIA (DC-09)
Other proprietary protocols
Power supply 110–240 V with a pre-installed power supply unit
12 V with an alternative power supply unit 12V PSU
6 V with an alternative power supply unit 6V PSU
Backup battery Li-Ion 2 Ah
(up to 16 h of battery life with Ethernet disabled)
Energy consumption from the grid 10 W
Tamper +
Radio frequency hopping +
Fraud protection +
Operating temperature range From -10°C to +40°C
Operating humidity Up to 75%
Dimensions 163 × 163 × 36 mm
Weight 362 g
Service Life 10 Years

Further details


MUCH MORE THAN AN ALARM KIT

An Ajax system is not a closed alarm system.
Its unique feature is that it can be expanded with entry, fire, and flood detectors, as well as relays for remote control of household appliances. Devices can be purchased and added individually. Detectors can be connected with just a few taps from the mobile app.


DO AJAX SYSTEMS SUPPORT VIDEO SURVEILLANCE?

Third-party cameras can be connected to Ajax using the application.

You can choose any camera that supports RTSP video streaming

WHEN DISTANCE IS NO LONGER A PROBLEM

An Ajax system is not challenged by great distances.
Tests have found that the maximum distance between the HUB and the detectors, in open space, really does reach 2,000 meters.

This figure may vary in the presence of walls, ceilings and other barriers as these elements reduce the distance.

Before installing the detectors, you can perform a radio test directly from the Ajax Security Systems application to determine the signal strength.

INSTALLATION

The devices can be installed in a maximum of 30 minutes. The detectors are connected and configured via the mobile application and then mounted on the SmartBracket provided with the kit.

Download

Brochure (Currently Unavailable)


WHO IS AJAX?

Ajax Systems

Founded in 2011, Ajax creates wireless alarm and fire systems with JEWELER wireless technology, allowing you to securely monitor all connected network devices. Ajax offers solutions for the home, office, or commercial business, managed via an app that's always up-to-date and compatible with iOS and Android systems. Ajax devices are easy to install—it takes just 15 seconds to connect the control panel to the sensors. They can also be integrated with surveillance cameras, have a virtually zero error rate, and, in the event of danger, send a notification (text message, push notification, or call) in less than 150 milliseconds.

Ajax alarm systems use cutting-edge wireless technology, making all products reliable and always connected. In addition to excellent performance, Ajax systems stand out for their modern and elegant design.

I sistemi ajax sono muniti di batterie?

ARE BATTERIES INCLUDED?

All alarm products in the Ajax range are already equipped with batteries!
Out of the box they are ready to use!
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
