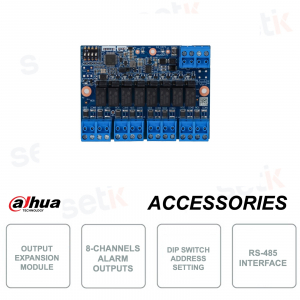

ARM708-RS | 8 OUTPUT EXPANSION FOR ALARM

The Dahua ARM708‑RS is a compact module that extends the functionality of the ARC control panel, adding 8 alarm outputs via RS‑485 , perfect for controlling sirens, lights and external devices. Thanks to the selector jumper , each output can be set to Normally Open (NO) or Normally Closed (NC) for full compatibility with sensors and actuators. The DIP switch addressing (0–15 for ARC9/ARC2 or 1–8 for ARC3008) makes integration easy, while remote firmware upgrade allows maintenance without field intervention. The module operates with 12 V DC power supply, consumes only 1.8 W and operates between –10 °C and +55 °C, ensuring versatility and efficiency even in narrow spaces thanks to its small size.
Further details

Technical data sheet
MODEL |
ARM708-RS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AlarmOutput |
8 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1, connected to a maximum of 300 m (984.25 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Device Address |
0–15 (ARC9 series, ARC2 series) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output Mode |
Switch between NO and NC with jumper |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Capacity |
30VDC/500mA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Update |
Remote update by client software |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
1.8W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +55 °C (+ 14 °F to + 131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
90.0 mm × 62.0 mm × 12.6 mm (3.54" × 2.44" × 0.5") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
≤ 1kg (2.20lb) |
