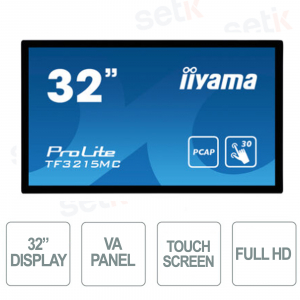

IIYAMA ProLite 32'' VA Panel touchscreen monitor

IIYAMA ProLite 32'' VA Panel touchscreen monitor

BEST PRICE

The iiyama ProLite TF3215MC-B2 32” Full HD monitor with 12-point capacitive touch technology is perfect for interactive kiosks, digital signage and industrial applications. The IPS panel offers accurate colours and wide viewing angles, while the edge-to-edge glass with anti-scratch coating ensures durability and easy cleaning. Compatible with VESA mounting and landscape/portrait orientation, it is ideal for intensive use. It includes HDMI, VGA and USB touch interfaces for maximum flexibility.

Technical Data Sheet

Artikel-Nr.: TF3215MC-B2

Marke: IIYAMA

EAN: 4948570123667

Disponibilità: 1

Manufacturer Object ( [id] => 23 [name] => IIYAMA [description] =>

Sie können online den Monitor für die Videoüberwachung auswählen und kaufen, der Ihren Bedürfnissen angesichts der großen Auswahl an Monitoren und der hohen Qualität am besten entspricht. Es handelt sich um eine multinationale Marke, die zu den ersten gehört, die im Bereich der Videoüberwachungsmonitore von Bedeutung ist, und jetzt können Sie sie bei Setik bequem in Italien direkt online kaufen.

Warum einen Iiyama-Monitor einführen?

Iiyama bietet eine breite Palette von Monitoren für die Videoüberwachung an, ideal für Besprechungsräume und interaktive Erfahrungen sowohl unter Kollegen als auch zwischen Unternehmen und Kunden.

[short_description] =>

Monitoren IIYAMA

IIYAMA-ÜBERWACHER
Setik ist Vertriebspartner für Italien der Marke IIYAMA, Hersteller von Monitoren höchster Qualität und ideal für den Videoüberwachungssektor.

[id_address] => [date_add] => 2016-06-10 09:07:26 [date_upd] => 2022-04-07 12:19:37 [link_rewrite] => iiyama [meta_title] => Monitor IIYAMA [meta_keywords] => IIYAMA, Monitoren, Monitoren iiyama [meta_description] => Auf Setik.biz steht eine breite Palette von Iiyama-Monitoren zur Verfügung, Monitore für die Videoüberwachung in höchster Qualität. Entdecken Sie die Iiyama-Monitore auf Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

TF3215MC-B2 – 32" Full HD Touch Monitor with edge-to-edge glass and 12-point capacitive technology

Made by IIYAMA

The ProLite TF3215MC-B2 is a 32" Full HD monitor designed for interactive retail, industrial, kiosk and digital signage applications. Featuring 12-point capacitive touch technology, it offers a smooth and precise user experience. The IPS panel ensures accurate colors and wide viewing angles, while the scratch-resistant edge-to-edge glass ensures durability and a modern aesthetic. VESA compatibility and landscape, portrait or face-up installation make it extremely versatile.

Main features:

- 32" Full HD (1920x1080) display with IPS panel

- 12-point capacitive touch technology , smooth and responsive

- Edge-to-edge glass with anti-scratch treatment

- Viewing angles 178°/178° , brightness 250 cd/m²

- Flexible orientation : horizontal, vertical and face-up

- Connectivity : HDMI, VGA, USB touch, audio jack

- VESA 200x400 mm mounting, sturdy and reliable structure


Further details

The ProLite TF3215MC-B2 is a 32" Full HD monitor designed for interactive applications in retail, industrial and information environments. Thanks to 12-point PCAP (Projected Capacitive Touch) technology , it enables a smooth and precise experience, even with protective glass overlay. The robust construction and continuous 24/7 operation make it ideal for kiosks, totems and custom integrations.

PCAP Touch Technology :
12-point projected capacitive touch, ideal for quick, multi-user interactions.
Foam gasket:
Integrated along the edges for perfect fit and protection in built-in installations.
Ball Drop Test Passed:
Shock resistance and robustness guaranteed for public and industrial applications.
Touch through glass:
It supports interaction even with protective glass up to 6 mm thick, perfect for self-service environments.
24/7 Operation:
Designed for continuous and intensive use, without performance drops.

TF3215MC-B2 dimensions

Technical data sheet

Model TF3215MC-B2
DISPLAY CHARACTERISTICS
design Open Frame
Diagonal 31.5", 80cm
Panel GO
Native resolution 1920 x 1080 (2.1 megapixel FULL HD)
Aspect ratio 16:9
Brightness 500 cd/m²
Brightness 460 cd/m² with touch
Static contrast 3000:1 typical
Light transmittance 92%
Response time 8ms
Viewing areas horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln 8bit
Horizontal Sync 30 - 68kHz
Viewable area W x H 698.4 x 392.8mm, 27.5 x 15.5"
Pixel pitch 0.3637mm
Colour black
Recommended usage retail
TOUCH
Touch technology projective capacitive
Touchpoints 30 (HID, only with supported OS)
Touch accuracy +- 2mm
Touch method finger, glove (latex), capacitive stylus
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through Glass 6mm
INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1
Digital signal input

HDMI x1
DisplayPort x1

HDCP Yes
FEATURES
Extra Touch Through Glass
Kiosk mode yes
Max. non-stop operating time 24/7
Glass thickness 3mm
Glass hardness 7H
60950 Ball drop test yes
Impact testing IK-7
Water and dust protection IP65 (front)
Housing (bezel) metal
Water tight seal yes
OSD key lock yes
GENERAL
OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B
MECHANICAL
Orientation landscape, portrait, face up
Fanless design yes
VESA mounting 200 x 200mm
Cable management system yes
Operating temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50000 hours
ACCESSORIES INCLUDED
Cables Power, USB, HDMI
Guides quick start guide, safety guide
Cable cover yes
POWER MANAGEMENT
Power Supply Unit external
Power Supply AC 100 - 240V, 50/60Hz
Power Usage 32W typical, 1.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) F
REACH SVHC above 0.1%: Lead
DIMENSIONS & WEIGHT
Product dimensions W x H x D 739.5 x 434 x 61mm
Box dimensions W x H x D 890 x 630 x 155mm
Weight (without box) 10kg
Weight (with box) 13.3kg

Further details

Risoluzione 2.0 Megapixel Full-HD 1920x1080

FULL HD resolution (1920 x 1080)

FULL HD

With a resolution of 1920 x 1080p the monitor displays images in high definition. This means that it can fit more information on the screen; for example, it captures 60% more information than a 1280 x 1024 monitor.

Risoluzione FULL HD 1920x1080 Monitor E2280HS-B1

touchscreen capacitivo

Touch Technology - Capacitive

This technology uses a grid of micro-wire sensors embedded in the glass covering the screen. Touch is detected because the electrical characteristics of the sensor grid change when the human finger is placed on the glass. Thanks to the glass covering, this technology is highly durable and the touch function remains unchanged even if the glass is scratched. It offers perfect image performance and works with the human finger (even with latex gloves) and the stylus pen.

Touchscreen capacitivo proiettivo

guarnizione in materiale espanso.jpg

FOAM MATERIAL SEAL

The foam finish (8 mm) around the monitor ensures perfect integration and excellent protection from dust.

 foam gasket bunner.jpg

ball drop test.jpg

BALL DROP TEST

The ball drop test uses a 1.5-pound steel ball to be dropped onto the touchscreen from a height of 1.3 meters. If the touchscreen surface remains untouched, the monitor passes the ball drop test and is proven to have high impact resistance and durability.

 ball drop test bunner.jpg

tocco attraverso vetro.jpg

TOUCH THROUGH GLASS

The back-window or through-glass function makes glass surfaces an interactive display. For back-window use, real estate agencies, POS, and restaurants.

 touch through glass bunner.jpg


24/7

24/7 displays are designed for continuous operation.

 24-7 bunner.jpg

Questo DVR presenta 1 porta HDMIUscita VGA

Porta Display port

This product features 1x HDMI port, 1x VGA port and 1x DISPLAY PORT

Attacco vesa

VESA mount

VESA mount compatibility means you can easily mount the LFD to any VESA-compatible mount.

Attacco VESA

Garanzia diretta fornitore 3 anni

This product is covered by a 3 YEAR DIRECT manufacturer's warranty .
