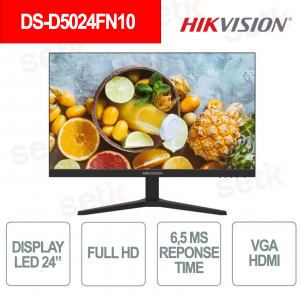

24 INCH LED MONITOR - FULL HD - 6.5MS - 75HZ - SPEAKER - VGA - HDMI - HIKVISION - DS-D5024FN10

DESCRIPTION:
DS-D5024FN10 is a 24-inch Full HD (1920x1080) LED display monitor , designed to offer high performance in video surveillance and security systems . Thanks to the anti-glare technology and the wide viewing angle , it ensures clear and detailed images even in environments with variable lighting. It is equipped with HDMI, VGA and BNC inputs , offering wide compatibility with DVR, NVR and other equipment. The slim and modern design, combined with low power consumption and continuous 24/7 operation , makes it ideal for professional installations.
Quality product.
Product Details:
|
Technical data sheet
| DS-D5024FN10 | |
| Display | |
| Screen Size | 23.8 inches |
| Active Display Area | 527.04mm (H) × 296.46mm (V) |
| Resolution | 1920 × 1080 |
| Backlight | E-LED |
| PixelPitch | 0.2745 (H) mm × 0.2745 (V) mm |
| Brightness | 250 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 8 bit |
| Contrast Ratio | 4000 : 1 |
| Response Time | 6.5 ms (typ)(G to G)OD 5ms |
| Refresh Rate | Max. 75Hz , Typ. 60 Hz |
| Haze | Anti-Glare, 3H(Without Haze) |
| Reliability | 7 × 24 H |
| Color Gamut | 72% NTSC |
| Interface | |
| Video & Audio Input | VGA × 1,HDMI 1.4 × 1 |
| Video & Audio Output | It is not |
| Data Transmission Interface | It is not |
| Control Interface | It is not |
| Power | |
| Power Supply | DC 12V, 2.5A |
| Power Consumption | ≤ 30W |
| Standby Consumption | ≤ 0.5W |
| Working Environment | |
| Working Temperature | 0℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidity | 20% to 80% RH (Non-Condensing) |
| Storage Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) |
| Storage Humidity | 20% to 80% RH (Non-Condensing) |
| General | |
| Casing Material | Plastic |
| VESA | 100mm × 100mm (4-M4 × 10mm) |
| Bezel Width | 1.8 mm (top/left/right), 21.4 mm (bottom) |
| Product Dimensions (W × H × D) | 538.40 (W) mm × 326.35 (H) mm × 37.50 (D) mm(without stand) 538.40 (W) mm × 407.10 (H) mm × 186.37 (D) mm(with stand) |
| Package Dimensions (W × H × D) | 600 (W) mm × 408 (H) mm × 94 (D) mm |
| Net Weight | 2.634 ± 0.5 kg |
| Gross Weight | 3.340 ± 0.5 kg |
| Packing List | Monitor × 1, Component base × 1, Power adapter (12 V, 2.5 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 |
| Remarks | The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information |
Further details
![]() |
24" 1920 × 1080 (FullHD) LED display |
![]() |
VESA mount VESA mount compatibility means you can easily mount the LCD to any VESA compatible stand. This model has VESA dimensions of 100x100mm.
|
|
|
This product features 1x HDMI port and 1x VGA port |
![]() |
This product features a response time of 6.5ms. |
| This product is covered by a 24 month warranty. |
