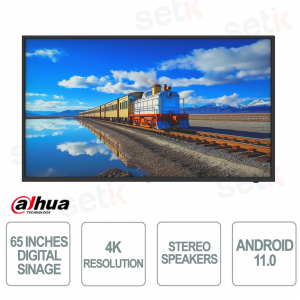

LDH65-LAI400L - 24/7 Digital Signage Industrial Panel - LCD - 65 inches - Resolution 3840 × 2160 4K - Response time 8ms - Android 11.0 - Contrast 1,200:1 - 10 bit color - 2x10W Stereo Speakers - RJ45 ×1, USB ×2, TF Slot ×1, HDMI ×1, TF card Slot 1 x 3.5 mm jack Mic - Ideal for advertising billboards - VESA 400 mm × 245 mm - For vertical and horizontal use - Includes power supply, HDMI cable, remote control. Dahua
TOTALER AUSVERKAUF ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
Description Product Details Technical Sheet Further Details Download
DIGITAL SIGNAGE - INDUSTRIAL BILLBOARD 24/7 - LCD - 65 INCH - 4K - VERTICAL/HORIZONTAL - ANDROID 11.0 - DAHUA - LDH65-LAI400L
MAIN FEATURES:
- Digital industrial signboard - Dahua - LDH65-LAI400L
- LCD Backlight
- 24/7
- 65-inch integrated display
- 4K Resolution 3840×2160
- 10-bit color (8-bit + FRC), 1.07B Million colors
- Contrast 1,200:1
- Brightness: 500nits
- Response time: 8ms
- Suitable for vertical / horizontal use
- Viewing angle: 178/178°
- RAM 4GB
- ROM 32GB
- Android 11.0 operating system
- Integrated 2x10W Stereo Speakers
- Inputs: RJ45 ×1, USB ×2, TF card Slot ×1, HDMI ×1, 3.5mm Audio In×1
- Power cord, HDMI cable and remote control included
- Power supply: AC100-240V, 50/60Hz
- Power supply unit: internal
- Operating temperature: 0 °C to +40 °C
- Relative humidity: 10%~85%
- Dimensions: 1471.7mm × 857.4mm × 85.5mm
- Net weight: 15.6 Kg
- VESA for posting: 400 mm × 245 mm
Technical data sheet
Model | LDH65-LAI400L |
LCD Panel | |
Panel Dimensions | 65 inches |
Backlight | LED |
LCD Technology | IPS/VA |
Aspect Ratio | 16:9 |
Brightness | 500 cd/m² (typ.) |
Contrast | IPS 1200:1(typ.) / VA 4000:1(typ.) |
Display Colors | 10 bit (8 bit + FRC), 1.07B colors |
Resolution | 3840 (H) × 2160 (V) |
Viewing Angle | 178° (H); 178° (V) |
Response Time | 8 ms (typ.) |
Surface Treatment | Haze 25% |
Built-in System | |
Operating System | Android 11.0 |
CPU | 4 cores A55, 1.92 GHZ |
RAM | 4 GB |
ROM | 32 GB |
Video Decoding | 1-ch H.265 HEVC MP-10@L5.1 up to 2160p@60 fps 1-ch H.264 AVC HP@L5.1 up to 2160p@30 fps; 1-ch VP9 Profile 2 up to 2160p@60 fps 4-ch MVC up to 1080p@30fps 4-ch MPEG-4 ASP@L5 up to 1080p@30 fps 4-ch WMV/VC-1 SP/MP/AP up to 1080p@30 fps |
Function | |
Audio Compression | MPEG-3, WMA, WAV |
Video Compression | MPEG-4, H.264 AVC/MVC, H.265 HEVC |
Video Format | mp4, avi, mov, mkv, wmv |
DevicePorts | |
Network Port | 1 × RJ–45 10/100/1000 Mbps self-adaptive Ethernet port |
Wi-Fi | Optional (External Wi-Fi module) |
Bluetooth | No |
Data Transmission Ports | 1 × USB 2.0 ports (type A) 1 × USB 3.0 ports (type A) 1 × TF card slot, up to 128GB |
Video Input | 1 × HDMI 2.1 (4K @60Hz) |
Video Output | No |
Audio Port | 1 × 3.5mm Mic jack |
IR Receiver | Yes |
Speaker | |
Built-in Speaker | 2 × 10W |
General | |
Power Supply | 100–240 VAC, 50/60 Hz |
Power Consumption | 65W (typ); 100W (max) |
Standby Power Consumption | ≤0.5W |
Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight) |
Storage Temperature | –20 °C to +60 °C (-4 °F to +140 °F) |
Operating Humidity | 10%–85% (RH), non-condensing |
Storage Humidity | 10%-90% (RH), non-condensing |
Product Material | Plastic casing |
Casing Color (Frame/Rear) | Black |
Product Dimensions | 1471.7 mm × 857.4 mm × 85.5 mm (57.94" × 33.76” × 3.37") (without bracket) (without wall mount bracket) |
Packaging Dimensions | 1547 mm × 162 mm × 960 mm (60.91" × 6.38” × 37.80”) |
Net Weight | 15.6 kg (34.39 lb) |
Gross Weight | 23.3 kg (51.37 lb) |
Installation | Horizontal/Vertical mount |
Display Mode | Landscape/Portrait |
VESA Wall Mount | 400mm × 245mm |
Accessories | Bracket, user's manual, power cord, legal and regulatory information, remote control |
Certification | |
Certification | EC, ERP |
