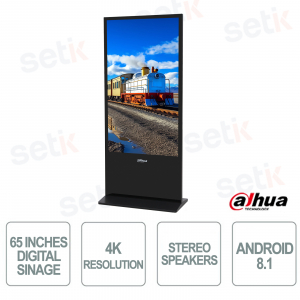

LDV65-SAI400K - 65 inch vertical 9:16 Digital Signage Panel - LCD - 2160 × 3840 4K resolution - 8ms response time - Android 8.1 - 1,200:1 contrast - 10 bit color - 2x5W stereo speakers - RJ45 ×1, USB ×2, TF Slot ×1, HDMI ×1, TF card Slot 1 x 3.5 mm jack Mic - Ideal for advertising billboards - For vertical use - Includes power supply, HDMI cable, remote control. Dahua
DAHUA: UNTER DEM EINSTANDSPREIS×
UNGLAUBLICHE RABATTE
auf eine Auswahl von DAHUA-Produkten
Entdecken Sie die Promo jetzt >>
TOTALER AUSVERKAUF ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
Description Product Details Technical Sheet Further Details Download
DIGITAL SIGNAGE - INDUSTRIAL BILLBOARD 16/7 - LCD - 65 INCHES - 4K - VERTICAL - ANDROID 8.1 - DAHUA - LDV65-SAI400K

MAIN FEATURES:
- Digital Industrial Billboard - Dahua - LDV65-SAI400K
- LCD Backlight
- 16/7
- 65-inch integrated display
- 4K Resolution 2160 x 3840
- Format 9:16
- 10-bit color (8-bit + FRC), 1.07B Million colors
- Contrast 1,200:1
- Brightness: 320 cd/m²
- Response time: 8ms
- Suitable for vertical use
- Viewing angle: 178/178°
- RAM 2GB
- ROM 16GB
- Android 8.1 operating system
- Integrated 2x5W Stereo Speakers
- Inputs: RJ45 ×1, USB ×2, TF card Slot ×1, HDMI ×1, 3.5mm Audio In×1
- Power cord, HDMI cable and remote control included
- Power supply: AC100-240V, 50/60Hz
- Power supply unit: internal
- Operating temperature: 0 °C to +40 °C
- Relative humidity: 10%~85%
- Dimensions: 2000mm × 882mm × 471.5mm
- Net weight: 65Kg
Technical data sheet
| Model | LDV65-SAI400K |
| LCD Panel | |
| Panel Dimensions | 65 inches |
| Backlight | LED |
| LCD Technology | IPS/VA |
| Aspect Ratio | 9:16 |
| Brightness | 320 cd/m² (typ.) |
| Contrast | IPS 1200:1(typ.) / VA 4000:1(typ.) |
| Display Colors | 10 bit (8 bit + FRC), 1.07B colors |
| Resolution | 2160 (H) × 3840 (V) |
| Viewing Angle | 178° (H); 178° (V) |
| Response Time | 8 ms (typ.) |
| Surface Treatment | Haze 1% |
| Built-in System | |
| Operating System | Android 8.1 |
| CPU | 4 cores A17, 1.6 GHz |
| RAM | 2 GB |
| ROM | 16 GB |
| Video Decoding | 2-ch H.264 1080p@25fps; 4-ch H.265 1080p@25fps; 4-ch H.265 1080p@30fps; 2-ch H.264 1080p@25fps; 2-ch H.265 1080p@30fps; 2-ch H.264 4K@25 fps; 2-ch H.265 4K@30fps; 1-ch H.265 4K@60fps; The decoding capacity statistics are based on tests with a single video file. |
| Function | |
| Audio Compression | MPEG-3, WMA, WAV |
| Video Compression | MPEG-4, H.264 AVC/MVC, H.265 HEVC |
| Video Format | mp4, avi, mov, mkv, wmv |
| DevicePorts | |
| Network Port | 1 × RJ–45 10/100/1000 Mbps self-adaptive Ethernet port |
| Wi-Fi | Optional (External Wi-Fi module) |
| Bluetooth | No |
| Data Transmission Ports | 2 × USB 2.0 ports (type A) 1 × TF card slot, up to 128 GB (the back cover needs to be open) |
| Video Input | 1 × HDMI 1.4 (1080P @60Hz) (the back cover needs to be open) |
| Video Output | No |
| Audio Port | 1 × 3.5mm Mic jack |
| IR Receiver | Yes |
| Speaker | |
| Built-in Speaker | 2 × 5W |
| General | |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | ≤170W |
| Standby Power Consumption | ≤0.5W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight) |
| Storage Temperature | –20 °C to +60 °C (-4 °F to +140 °F) |
| Operating Humidity | 10%–85% (RH), non-condensing |
| Storage Humidity | 10%-90% (RH), non-condensing |
| Product Material | Metal casing |
| Casing Color (Frame/Rear) | Black |
| Product Dimensions | 2000 mm × 882 mm × 471.5 mm (78.74" × 34.72" × 18.56") |
| Packaging Dimensions | 2125 mm × 200 mm ×1050 mm (83.66" × 7.87" × 41.34”) |
| Net Weight | 65 kg (143.30 lb) |
| Gross Weight | 78 kg (171.96 lb) |
| Installation | Vertical mount |
| Display Mode | Portrait |
| Accessories | Base, user's manual, power cord, legal and regulatory information, remote control |
| Certification | |
| Certification | EC; ERP |
