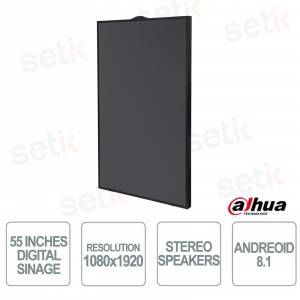

LDH55-WAI200K - 55 inch Vertical 9:16 24/7 Digital Signage Panel - LCD - 1080 × 1920 Resolution - 14ms Response Time - Android 8.1 - 1,200:1 Contrast - 8 bit Color - 2x5W Stereo Speakers - RJ45 ×1, USB ×2, TF Slot ×1, HDMI ×1, TF card Slot 1 x 3.5 mm jack Mic - Ideal for advertising - For vertical use - Includes mounting bracket, power cable and remote control. Dahua
TOTALER AUSVERKAUF ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
Description Product Details Technical Sheet Further Details Download
DIGITAL SIGNAGE - INDUSTRIAL BILLBOARD 24/7 - LCD - 55 INCH - VERTICAL - ANDROID 8.1 - DAHUA - LDH55-WAI200K
MAIN FEATURES:
- Digital Industrial Billboard - Dahua - LDH55-WAI200K
- LCD Backlight
- 24/7
- 55-inch integrated display
- Resolution 1080 × 1920
- Format 9:16
- 8-bit color, 16.7 million colors
- Contrast 1,200:1
- Brightness: 3000 cd/m²
- Response time: 14ms
- Suitable for vertical use
- Viewing angle: 178/178°
- RAM 2GB
- ROM 16GB
- Android 8.1 operating system
- Integrated 2x5W Stereo Speakers
- Inputs: RJ45 ×1, USB ×2, TF card Slot ×1, HDMI ×1, 3.5mm Audio In×1
- Mounting bracket, power cable and remote control
- Power supply: AC100-240V, 50/60Hz
- Power supply unit: internal
- Operating temperature: 0 °C to +40 °C
- Relative humidity: 10%~85%
- Dimensions: 721mm × 1,250mm × 100mm
- Net weight: 43Kg
- Vesa: 400mm × 400mm
Technical data sheet
Model | LDH55-WAI200K |
LCD Panel | |
Panel Dimensions | 55 inches |
Backlight | LED |
LCD Technology | IPS |
Aspect Ratio | 9:16 |
Brightness | 3000 cd/m² (typ.) |
Contrast | 1200:1(typ.) |
Display Colors | 8 bit, 16.7M colors |
Resolution | 1080 (H) × 1920 (V) |
Viewing Angle | 178° (H); 178° (V) |
Response Time | 14 ms (typ.) |
Surface Treatment | Haze 25% |
Built-in System | |
Operating System | Android 8.1 |
CPU | 4 cores A17, 1.6 GHz |
RAM | 2 GB |
ROM | 16 GB |
Video Decoding | 2-ch H.264 1080p@25fps; 4-ch H.265 1080p@25fps; 4-ch H.265 1080p@30fps; 2-ch H.264 1080p@25fps; 2-ch H.265 1080p@30fps; The decoding capacity statistics are based on tests with a single video file. |
Function | |
Audio Compression | MPEG-3, WMA, WAV |
Video Compression | MPEG-4, H.264 AVC/MVC, H.265 HEVC |
Video Format | mp4, avi, mov, mkv, wmv |
DevicePorts | |
Network Port | 1 × RJ–45 10/100/1000 Mbps self-adaptive Ethernet port |
Wi-Fi | Optional (External Wi-Fi module) |
Bluetooth | No |
Data Transmission Ports | 2 × USB 2.0 ports (type A) 1 × TF card slot, up to 128GB |
Video Input | 1 × HDMI 1.4 (1080P @60Hz) |
Video Output | No |
Audio Port | 1 × 3.5mm Mic jack |
IR Receiver | Yes |
Speaker | |
Built-in Speaker | 2 × 5W |
General | |
Power Supply | 100–240 VAC, 50/60 Hz |
Power Consumption | ≤360W |
Standby Power Consumption | ≤0.5W |
Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
Storage Temperature | –20 °C to +60 °C (-4 °F to +140 °F) |
Operating Humidity | 10%–85% (RH), non-condensing |
Storage Humidity | 10%-90% (RH) |
Product Material | Metal casing |
Casing Color (Frame/Rear) | Black |
Product Dimensions | 721 mm × 1,250 mm × 100 mm (28.39" × 49.21" × 3.94”) (without wall mount bracket) (without wall mount bracket) |
Packaging Dimensions | 1400 mm × 955 mm × 310 mm (55.12" × 37.60" × 12.20") |
Net Weight | 43kg (94.80lb) |
Gross Weight | 48 kg (105.82 lb) |
Installation | Ceiling mount/Wall mount |
Display Mode | Portrait |
Wall Mounting Hole Position | 400mm × 400mm |
Accessories | Ceiling mount bracket, power cord, legal and regulatory information, remote control, screw |
Certification | |
Certification | EC, ERP |
