TE6515A-B1AG – 65" 4K Android 14 Interactive Monitor for Professional and Educational Environments

Made by IIYAMA

The TE6515A-B1AG is a 65" 4K UHD touchscreen monitor designed for educational and professional environments. Equipped with Android 14 operating system, Google EDLA certification, iiWare 21E, intelligent sensors and DeepContrast-IR+ technology, it guarantees high performance, fluid interactivity and maximum compatibility with Google Workspace. The elegant design adapts to any space and the complete connectivity makes it an all-in-one solution, ideal for meeting rooms, classrooms and corporate installations.

Main features:

- 65" 4K UHD (3840x2160) anti-glare display

- Android 14 with iiWare 21E interface

- Google EDLA Certified with access to the Play Store

- DeepContrast-IR+ for precise touch and sharp images

- PIR Motion Sensor for automatic activation

- Pen Pick-Up Sensor for intelligent pen detection

- Quick-Radial-Menu for quick access to functions

- iiControl for remote device management

- USB-C, HDMI, LAN, Wi-Fi, OPS, SDM for advanced connectivity

- Compatible with wall mounting (VESA)


Further details

Aesthetics which Elevate Any Environment:
Sleek, modern design with thin bezels, perfect for high-end corporate environments, meeting rooms and educational settings.

Google EDLA Certified:
Google EDLA certification that allows access to the Play Store , Google Workspace and cloud services for seamless professional integration.
iiWare 21E (Android 14 OS):
iiWare platform updated to version 21E, with Android 14 , for fast, secure and intuitive management of content, apps and presentations.

Quick Radial Menu:
Smart, customizable circular menu that allows instant access to the most used functions, improving productivity and usability.
iiControl – Device Management System:
Advanced remote device management system , useful for IT managers and network administrators, with monitoring and control functions from a centralized dashboard.
DeepContrast-IR+:
High contrast infrared touch technology, which improves image quality and touch accuracy even in bright environments.
PIR Motion Sensor:
PIR motion sensor that activates the display when presence is detected, optimizing energy efficiency.
Pen Pick-Up Sensor:
The monitor automatically detects when the pen is lifted, activating smart tools and functions without the need for manual touch.
Standalone Solution & Connectivity:
It works in standalone mode without the need for external PCs, with wide connectivity (USB-C, HDMI, LAN, Wi-Fi, OPS, SDM slot) for every type of need.
Wall Mount:
Compatible with VESA mounts for stable and secure wall mounting, suitable for any professional environment.

Other Technical Features:
  • 65" 4K UHD ( 3840 x 2160 ) display with anti-reflective glass
  • Android 14 with iiWare 21E interface and access to the Play Store
  • IR+ (DeepContrast) technology with 40 simultaneous touches
  • Google EDLA Certification
  • iiControl for remote IT management
  • PIR Motion Sensor and Pen Pick-Up Sensor
  • Quick Radial Menu for quick access to functions
  • Full connectivity : USB-C, HDMI, Wi-Fi, LAN, OPS, SDM slot
  • 24/7 Operation and VESA Mounting

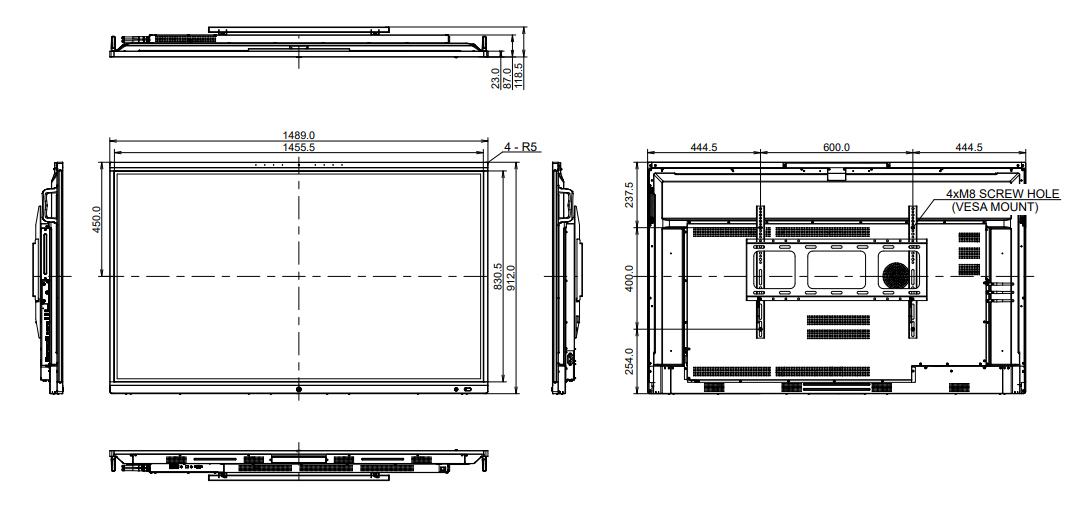

TE6515A-B1AG dimensions

Technical data sheet

Model TE6515A-B1AG
DISPLAY CHARACTERISTICS
Design Thin bezel
Diagonal 64.5", 163.9cm
Panel GO, DLED
Touch Glass Anti-Glare Glass with Anti-Gloss treatment, Smooth writing, Zero Gap - Air Bonded, DeepContrast PCAP
Native resolution 3840 x 2160 (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 550 cd/m²
Light transmittance 88%
Static contrast 1200:1
Response time (GTG) 8ms
Viewing areas horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07G (8 Bits+FRC) (NTSC 72%)
Viewable area W x H 1428.5 x 803.5mm, 56.2 x 31.6"
Pixel pitch 0.372mm
Bezel color and finish black, matte
TOUCH
Touch technology DeepContrast-IR+
Touchpoints 40, 32pt writing (HID, only with supported OS, 32pt Touch with Android)
Touch accuracy +- 1mm
Touch method stylus, finger, glove (Passive pen, Opaque objects)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes
INTERFACES/CONNECTORS/CONTROLS
Digital signal input HDMI x2 (2.0, max. 3840x2160 @60Hz, YUV444, ARC on HDMI #1)
DisplayPort x1 (1.2, max. 3840x2160 @60Hz)
USB-C x1 (3.2, Gen 1, 5Gbit), 3840x2160 @60Hz (YUV444/ RGB444), DP 1.2 Alt mode, PD 100W, Data, Touch)
Audio input Mini jack x1 (Microphone)
Monitor control input RS-232c x1 (DSUB 9pin)
Digital signal output HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444)
USB-C x1 (3.2, Gen 1, 5Gbit), 3840x2160 @60Hz (YUV444/ RGB444), DP 1.2 Alt mode)
Audio output S/PDIF (Optical) x1
Mini jack x1 (Headphone)
Speakers 2 x 20W (Front facing + 20W Subwoofer on backside)
Monitor control output OPS Slot x1 (Intel OPS 80pin)
HDCP 2.2
USB ports x5 (media playback / peripherals / storage – side: 2x 3.2 (Gen 1, 5Gbit), 1x 2.0 (Android only), 1x USB-C IN 3.2 (Gen 1, 5Gbit, 100W PD), 1x USB-C OUT 3.2)
RJ45 (LAN) x2 (IN / OUT, Auto switch for PC & Android, 1000MB)
Microphone 8-Array (8m voice pickup)
FEATURES
Integrated software iiWare 21E (Android 14 OS) featuring Google EDLA, iiControl (DMS), Whiteboard, iiBrowser, file manager, cloud drives and iiShare, plus EShare for wireless connection with Windows/iOS/Android devices
WiFi yes (Built-in WiFi-6, Bluetooth 5.0)
Hardware CPU: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 MC3, RAM: 16GB, ROM: 128GB
Extra Sensors: Ambient light, NFC Reader, PIR Motion, Pen Pick-up; Slot for optional OPS PC, Micro SD card slot, 4x Touch pen (anti-bacterial coating)
PiP yes
Media playback yes
Glass thickness 3.2mm
Glass hardness 7H
Housing (bezel) metal
OSD key lock yes
GENERAL
OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB
Control buttons Power
User controls personalization (theme, wallpaper, auto loop), display (backlight, image mode, brightness, contrast, saturation, Hue, sharpness, color temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, power on source, rename input setting), system (power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI Mode, wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device)
Blue light reducer yes
Flicker-free yes
Plug&Play DDC2B
Warranty 5 years (for details and eligible countries please check the Warranty section of our website)
MECHANICAL
Orientation landscape
Fanless design yes
VESA mounting 600 x 400mm
Operating temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50,000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables power (EU 3m, UK 3m), USB (3m), HDMI (3m)
Touch pen x4 (Dual function tips, anti-bacterial coating)
Guides quick start guide, safety guide
Other Wall Mounting Bracket (VESA 600x400), Webcam Mounting Bracket, Cable ties (6pcs)
Remote control yes (batteries included)
POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 195W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS)
Energy efficiency class (Regulation (EU) 2017/1369) G
EPEAT EPEAT is a comprehensive environmental rating that helps identify greener computers and other electronic equipment. The Bronze certification means the monitor meets all required criteria. EPEAT Bronze is valid in countries where iiyama registers the product. Please visit www.epeat.net for the registration status in your country.
REACH SVHC above 0.1%: Lead
DIMENSION/WEIGHT
Product dimensions W x H x D 1489.1 x 911.8 x 87.1mm
Box dimensions W x H x D 1640 x 1010 x 185mm
Weight (without box) 43.5kg
Weight (with box) 47.4kg
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
