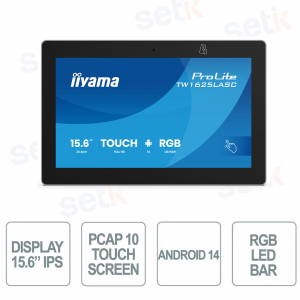

TW1625LASC-B3PNR – 15.6" IIYAMA PROLITE TOUCHSCREEN WITH CAPACITIVE DISPLAY - BUILT-IN SPEAKERS AND MICROPHONE
The 15.6" iiyama ProLite TW1625LASC-B3PNR touch PC is an all-in-one solution designed for high-traffic environments such as meeting rooms, reception areas, information points, and hospitality. Featuring 10-touch PCAP technology with Optical Bonding, it offers smooth and precise interaction, reducing reflections and protecting the screen from moisture. With Android 14, it integrates powerful hardware, NFC/RFID for contactless interactions, an RGB LED bar to indicate room status, and PoE for power and data over a single cable. The 5MP camera, microphone, and speakers complete an ideal system for smart communication and management.
Main features:
- 15.6" Full HD IPS touch screen with Optical Bonding
- Android 14 operating system with installable apps
- Integrated NFC/RFID reader for contactless interactions
- RGB LED bar to indicate availability and status
- Power over Ethernet for power and data over one cable
- 5MP camera, built-in microphone and speakers
Further details
The 15.6" iiyama ProLite TW1625LASC-B3PNR touch PC is designed for smart, high-traffic environments such as meeting rooms, reception areas, and information points. Featuring 10-touch PCAP technology with Optical Bonding , it offers smooth interaction, reduces reflections, and protects the screen from humidity and condensation.
The RGB LED bar integrated into the frame clearly and immediately indicates the availability status of a room, with a customizable range of colors to adapt to different scenarios and visual needs.
The NFC/RFID reader enables secure and fast contactless interactions with compatible devices or tags, ideal for self-check-in, staff authentication, or triggering predefined functions such as starting a presentation.
The RJ45 connection with Power over Ethernet (PoE) support provides power and data transmission over a single cable, simplifying installation and reducing cable clutter in complex or aesthetically constrained spaces.
The 5MP camera with built-in microphone and speakers ensures crisp video conferencing and clear communications, making the device perfect for hybrid and collaborative work environments.
Technical data sheet
| Model | TW1625LASC-B3PNR |
| DISPLAY CHARACTERISTICS | |
| Design | Edge to edge glass |
| Diagonal | 15.6", 39.5cm |
| Panel | IPS Panel Technology, LED |
| Native resolution | 1920 x 1080 (2 megapixel HD) |
| Aspect ratio | 16:9 |
| Brightness | 450 cd/m² |
| Brightness | 390 cd/m² with touch |
| Static contrast | 1000:1 with touch |
| Light transmittance | 86% |
| Response time | 20ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Color support | 16.7 million 8-bit |
| Viewable area W x H | 344.16 x 193.5mm, 13.5 x 7.6" |
| Pixel pitch | 0.1792mm |
| Color | black, matte |
| TOUCH | |
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| INTERFACES / CONNECTORS / CONTROLS | |
| Audio output |
Mini jack x1 |
| USB Ports | x3 (1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 1x 2.0 (DC5V, 500mA), 1 x USB-C (DC5V, 900mA)) |
| RJ45 (LAN) | x1 (PoE - IEEE802.3at/30W) |
| Microphone | 1 |
| FEATURES | |
| Integrated software | Android 14 |
| CPU | Rockchip RK3576 Octo-core A53*4 + A72*4 up to 2.2GHz |
| Storage | 32GB eMMC |
| Memory | 4GB DDR4 |
| WiFi | IEEE802.11ax/ac/a/b/g/n |
| Bluetooth | 5.3 |
| Hardware | NFC (NXP PN7160), RFID (125kHZ,ISO/IEC 11784/11785,EM4100, TK4100/GK4100) |
| Extra | Auto-rotation, webcam (5 megapixel), SD card slot, anti-fingerprint coating, anti-glare coating, PoE, NFC/RFID reader, RGB Led lightbar, wall mount |
| Kiosk mode | yes |
| Max. non-stop operating time | 24/7 |
| Glass thickness | 2.05mm |
| Glass hardness | 6H |
| GENERAL | |
| Control buttons | Power switch |
| Applications | Applications: lock application, manage restart time, manage power on/off time, calculator, calendar, camera, Chrome alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, led light bar, play audio files, Play store, system peferences, sound recorder, play video |
| MECHANICAL | |
| Orientation | landscape, portrait, face-up |
| VESA mounting | 75 x 75mm |
| Cable management system | yes |
| ACCESSORIES INCLUDED | |
| Guides | quick start guide, safety guide |
| Other | AC adapter, interchangeable plugs (EU/UK) |
| Cable Cover | yes |
| POWER MANAGEMENT | |
| Power Supply Unit | external |
| Power Supply | DC 12 V |
| Power Usage | 11W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| REACH SVHC | above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |

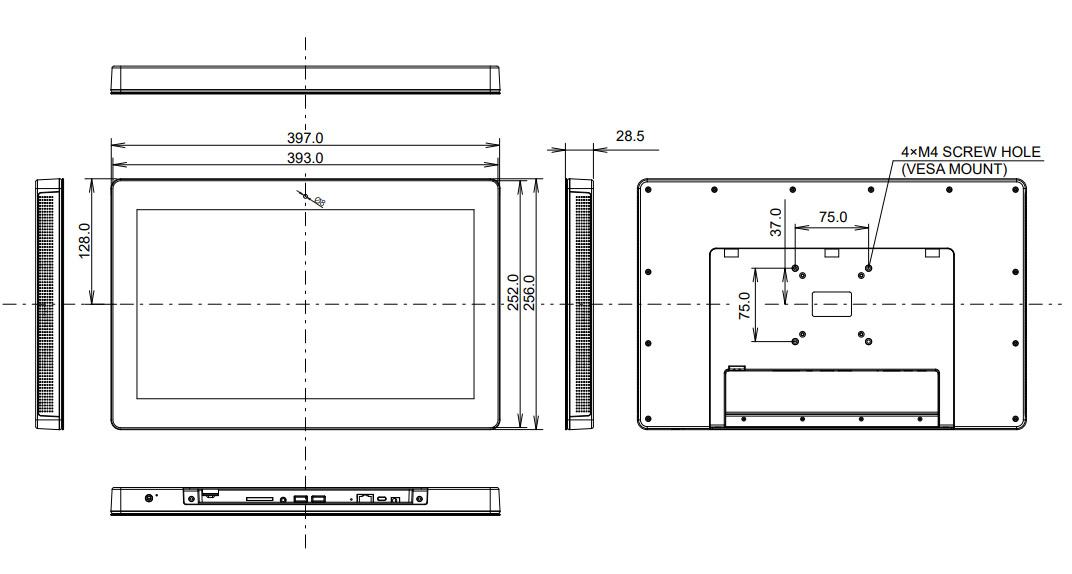

| Product dimensions W x H x D | 397 x 256 x 28.5mm |
| Box dimensions W x H x D | 495 x 305 x 75mm |
| Weight (without box) | 2kg |
| Weight (with box) | 3kg |
