The iiyama G-Master G2766HSU-B1 Red Eagle 27" curved gaming monitor is designed to offer an immersive and responsive gaming experience, ideal for gamers looking for fluidity and visual quality. The 1500R curved VA panel with Full HD 1920x1080 resolution guarantees immersive images, high 3000:1 contrast and wide viewing angles. Thanks to the 165Hz refresh rate and 1ms MPRT response time , the monitor ensures extremely smooth movements and reduces ghosting and motion blur in the most dynamic scenes. AMD FreeSync™ Premium technology synchronizes the refresh rate with the GPU eliminating tearing and stuttering. Features such as Black Tuner, Flicker Free and Blue Light Reducer improve visibility and eye comfort during long gaming sessions. Full connectivity with HDMI, DisplayPort and integrated USB hub , together with integrated speakers , makes this display a versatile solution for gaming and entertainment.

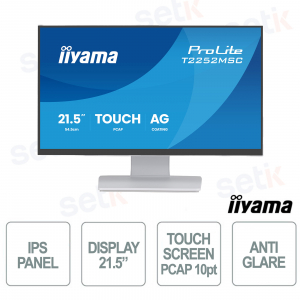

T2252MSC-W2AG – IPS MONITOR 21.5" FULL HD IIYAMA PROLITE - TOUCSCREEN PCAP+ 10PT - ANTI-GLARE
The iiyama ProLite T2252MSC-W2AG 21.5" Full HD touch monitor is designed for professional, retail and interactive applications that require precision, reliability and ease of use. The IPS panel with 1920x1080 resolution ensures sharp images, accurate colors and wide viewing angles , ideal for continuous use in information kiosks and POS systems. Projected Capacitive Touch (PCAP) technology with 10 simultaneous points of view ensures precise and responsive multitouch control. The edge-to-edge glass with anti-glare treatment improves visibility by reducing reflections and fingerprints. The robust design with IP65-certified front protection protects against dust and splashes. Full connectivity with HDMI, DisplayPort, USB and an integrated USB hub allows for seamless integration into professional and commercial environments.
Main features:
- 21.5" screen with Full HD 1920×1080 resolution
- IPS panel with wide viewing angles and accurate colors
- 10-point Projected Capacitive (PCAP) touch technology
- Edge-to-Edge glass with anti-glare treatment
- IP65 certified front protection against dust and splashes
- HDMI, DisplayPort connectivity and integrated USB hub
Further details
Technical data sheet
| Model | T2252MSC-W2AG |
| DISPLAY CHARACTERISTICS | |
| Design | Edge to edge glass |
| Diagonal | 21.5", 54.6cm |
| Panel | IPS |
| Native resolution | 1920 x 1080 @100Hz (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 250 cd/m² |
| Brightness | 215 cd/m² with touch |
| Light transmittance | 90% |
| Static contrast | 1000:1 with touch |
| Response time (MPRT) | 5ms |
| Viewing zone | horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0° |
| Color support | 16.7 million 8-bit |
| Horizontal Sync | 30 - 86kHz |
| Viewable area W x H | 478.6 x 260mm, 18.8 x 10.2" |
| Pixel pitch | 0.249mm |
| Color | white, matte |
| TOUCH | |
| Touch technology | DeepContrast-PCAP+ |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection | Yes |
| INTERFACES / CONNECTORS / CONTROLS | |
| Signal input |
HDMI x1 |
| Audio output |
Mini jack x1 |
| USB HUB | x2 (USB 3.2 Gen 1 (5Gbps, 5V, 900mA)) |
| HDCP | Yes |
| FEATURES | |
| Extra | DeepContrast PCAP+ (optical Bonding PCAP), anti-fingerprint, anti-glare coating, touch support with gloved hand (thickness +2mm) |
| Glass hardness | 7H |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages |
EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons |
Joystick: right/menu/enter, left/input/exit, up/eco, down, power |
| User controls | picture adjust (brightness, contrast, i-Style, adv. contrast, ECO, OD, |
| Convenience | Kensington-lock™ prepared |
| Blue light reducer |
Yes |
| Flicker free | Yes |
| Plug & Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, face-up |
| Tilt angle | 90° up; 5° down |
| VESA mounting | 100 x 100mm |
| Cable management system | Yes |
| ACCESSORIES INCLUDED | |
| Cables | power (1.8m), USB (1.5m), HDMI (1.5m) |
| Other | quick start guide, safety guide |
| Other | Screwdriver |
| Cable cover | Yes |
| POWER MANAGEMENT | |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 249V, 50/60Hz |
| Power Usage | 13W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Energy efficiency class (Regulation (EU) 2017/1369) | D |
| REACH SVHC | above 0.1%: Lead, Lead monoxide (lead oxide) |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 493.5 x 361.5 x 239.5mm |
| Box dimensions W x H x D | 560 x 350 x 150mm |
| Weight (without box) | 4.5kg |
| Weight (with box) | 6kg |
