The iiyama ProLite T2752MSC-W1AG 27" Full HD touch monitor is designed for professional, retail and interactive environments that require precision and reliability. The IPS panel with 1920x1080 resolution ensures vivid colors, sharp images and wide viewing angles , ideal for continuous use in digital kiosks and POS systems. Thanks to the 10-point Projected Capacitive Touch (PCAP) technology , it offers smooth and highly responsive multitouch interaction. The edge-to-edge front glass with anti-glare treatment improves visibility by reducing reflections and fingerprints. The IP65 certified front protection ensures resistance to dust and splashes for intensive use. Full connectivity with HDMI, DisplayPort and an integrated USB hub allows for easy integration into professional and commercial environments.

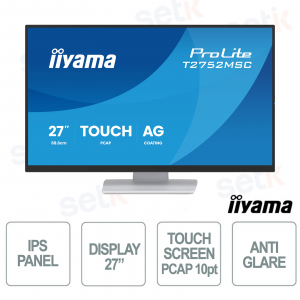

T2752MSC-W1AG – 27" FULL HD IIYAMA PROLITE IPS MONITOR - PCAP+ 10PT TOUCHSCREEN - ANTI-GLARE
The iiyama ProLite T2752MSC-W1AG 27" Full HD touch monitor is designed for professional, retail and interactive environments that require precision, reliability and ease of use. The IPS panel with 1920x1080 resolution guarantees vivid colors, sharp images and wide viewing angles , making it ideal for digital kiosks, POS systems and information stations. Projected Capacitive (PCAP) touch technology with 10 simultaneous touches ensures smooth and highly responsive multitouch interaction. The edge-to-edge front glass with anti-glare treatment reduces reflections and improves visibility even in bright environments. Thanks to the IP65 certified front protection , the display is resistant to dust and splashes for intensive use. Connectivity with HDMI, DisplayPort and an integrated USB hub , together with integrated speakers , offers great versatility in professional installations.
Main features:
- 27" screen with Full HD 1920×1080 resolution
- IPS panel with wide viewing angles and accurate colors
- 10-point Projected Capacitive (PCAP) touch technology
- Edge-to-Edge glass with anti-glare treatment
- IP65 certified front protection against dust and splashes
- HDMI, DisplayPort connectivity and integrated USB hub
Further details
Technical data sheet
| Model | T2752MSC-W1AG |
| DISPLAY CHARACTERISTICS | |
| Design | Edge to edge glass |
| Diagonal | 27", 68.6cm |
| Panel | IPS |
| Native resolution | 1920 x 1080 @100Hz (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 400 cd/m² |
| Brightness | 345 cd/m² with touch |
| Light transmittance | 88% |
| Static contrast | 1000:1 with touch |
| Response time (MPRT) | 5ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Color support | 16.7 million 8-bit |
| Horizontal Sync | 30 - 86kHz |
| Viewable area W x H | 598 x 336mm, 23.5 x 13.2" |
| Pixel pitch | 0.311mm |
| Color | white, matte |
| TOUCH | |
| Touch technology | DeepContrast-PCAP+ |
| Touch points | 10 (HID, only with supported OS) |
| Touch accuracy | +- 2mm |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection | Yes |
| INTERFACES / CONNECTORS / CONTROLS | |
| Signal input |
HDMI x1 |
| Audio output |
Mini jack x1 |
| USB HUB | x2 (v.3.2 (Gen 1, 5Gbit)) |
| HDCP | Yes |
| FEATURES | |
| Extra | DeepContrast PCAP+ (optical Bonding PCAP), anti-fingerprint, anti-glare coating, touch support with gloved hand (thickness +2mm) |
| Glass hardness | 7H |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages |
EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons |
Menu, scroll up / ECO, scroll down / volume, select / input, power |
| User controls | Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, switches) |
| Convenience | Kensington-lock™ prepared |
| Blue light reducer |
Yes |
| Flicker free | Yes |
| Plug & Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, face-up |
| Tilt angle | 90° up; 5° down |
| VESA mounting | 100 x 100mm |
| Cable management system | Yes |
| MTBF | 50000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (1.8m), USB (1.5m), HDMI (1.5m) |
| Other | quick start guide, safety guide |
| Other | Screwdriver |
| Cable cover | Yes |
| POWER MANAGEMENT | |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power Usage | 21W typical, 1.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Energy efficiency class (Regulation (EU) 2017/1369) | AND |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 614 x 403 x 239.5mm |
| Box dimensions W x H x D | 710 x 465 x 160mm |
| Weight (without box) | 6.7kg |
| Weight (with box) | 8.4kg |
