T2754MSC-B2AG 27" Full HD IPS PCAP 10 Touch IP65 HDMI DisplayPort USB Speakers Edge-to-Edge - iiyama

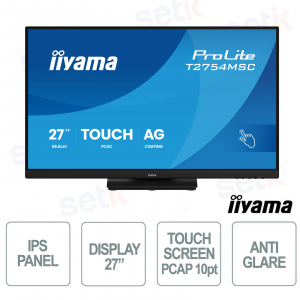

The iiyama ProLite T2754MSC-B2AG 27" Full HD touch monitor is designed for professional, retail and interactive environments that require reliability and precision. The IPS panel with 1920x1080 resolution guarantees vivid colors, sharp images and wide viewing angles , making it ideal for digital kiosks, POS systems and information stations. Thanks to the 10-point Projected Capacitive (PCAP) touch technology , it offers smooth and highly responsive multitouch interaction. The edge-to-edge front glass with anti-glare treatment improves visibility by reducing reflections and fingerprints. The robust construction with IP65 certified front protection ensures resistance to dust and splashes for intensive use. Full connectivity with HDMI, DisplayPort and integrated USB hub , along with integrated speakers , makes this monitor versatile for any professional installation.
T2754MSC-B2AG – IIYAMA PROLITE 27" FULL HD IPS MONITOR - PCAP+ 10PT TOUCHSCREEN - VERSATILE USE
The iiyama ProLite T2754MSC-B2AG 27" Full HD touch monitor is designed for professional, retail and interactive environments that require precision, reliability and ease of use. The IPS panel with 1920x1080 resolution guarantees vivid colors, sharp images and wide viewing angles , ideal for digital kiosks, POS systems and information stations. Thanks to the 10-point Projected Capacitive (PCAP) touch technology , the display offers smooth and highly responsive multitouch interaction. The edge-to-edge front glass with anti-glare treatment reduces reflections and improves visibility even in bright environments. The IP65 certified front protection ensures resistance to dust and splashes for intensive use. Full connectivity with HDMI, DisplayPort, integrated USB hub and integrated speakers makes this monitor versatile for various professional installations.
Main features:
- 27" screen with Full HD 1920×1080 resolution
- IPS panel with wide viewing angles and accurate colors
- 10-point Projected Capacitive (PCAP) touch technology
- Edge-to-Edge glass with anti-glare treatment
- IP65 certified front protection against dust and splashes
- HDMI, DisplayPort, USB hub and built-in speakers connectivity
Further details
Technical data sheet
| Model | T2754MSC-B2AG |
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 27", 68.6cm |
| Panel | IPS |
| Native resolution | 1920 x 1080 @100Hz (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 300 cd/m² |
| Static contrast | 1000:1 with touch |
| Response time (MPRT) | 4ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Color support | 16.7 million 8-bit |
| Horizontal Sync | 30 - 86kHz |
| Viewable area W x H | 597.89 x 336.31mm, 23.5 x 13.2" |
| Pixel pitch | 0.311mm |
| Color | black, matte |
| TOUCH | |
| Touch technology | InCell PCAP |
| Touch points | 10 (HID, only with supported OS) |
| Touch accuracy | +- 2mm |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection | Yes |
| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input |
VGA x1 |
| Digital signal input |
HDMI x1 |
| Audio output |
Mini jack x1 |
| USB HUB | x2 (v.3.2 (Gen 1, 5Gbit)) |
| HDCP | Yes |
| FEATURES | |
| Extra | Incell PCAP, anti-glare coating, TCO10 & EPEAT bronze certification |
| Kiosk mode | Yes |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages |
EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons |
Power, menu, + / volume, - echo, auto / exit / signal select |
| User controls | luminance (contrast, brightness, i-Style Color, adv. contrast, eco, auto off), Image settings (pixel clock, phase, horizontal position, vertical position, aspect ratio), Color settings (gamma, 6- axis, color temp), OSD (OSD horizontal position, OSD vertical position, OSD time, language), Extra (reset, DDC/CI, signal select, OverDrive, opening logo, information) |
| Blue light reducer |
Yes |
| Flicker free | Yes |
| Plug & Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, face-up |
| Height adjustment | 138mm |
| Tilt angle | 90° up; 5° down |
| VESA mounting | 100 x 100mm |
| Cable management system | Yes |
| MTBF | 50000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (1.8m), USB (1.8m), HDMI (1.8m) |
| Other | quick start guide, safety guide |
| Other | Screwdriver |
| Cable cover | Yes |
| POWER MANAGEMENT | |
| Power Supply Unit | external |
| Power Supply | DC 19 V |
| Power Usage | 27W typical, 1.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | AND |
| REACH SVHC | above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 612 x 387 x 241mm |
| Box dimensions W x H x D | 688 x 477 x 148mm |
| Weight (without box) | 6.6kg |
| Weight (with box) | 9.2kg |
