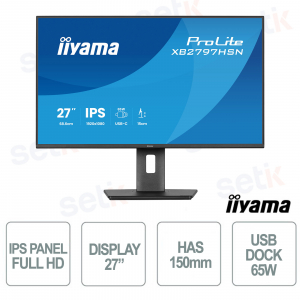

iiyama ProLite XB2797HSN-B1 27" Full HD IPS USB-C Dock 65W Monitor with RJ45 LAN and Adjustable Ergonomic Stand
The 24-inch iiyama ProLite XB2495WSU-B1 monitor is designed for professionals who need more workspace and visual precision thanks to the WUXGA 1920x1200 IPS panel with 16:10 aspect ratio , ideal for CAD, data analysis and business applications. The 100Hz refresh rate , 99% sRGB coverage and 1500:1 native contrast ensure smooth images and accurate colours. The ergonomic stand with height adjustment up to 150mm , with Pivot, Swivel and Tilt functions, ensures maximum comfort during prolonged use, while the 4-sided borderless design , integrated USB hub and built-in speakers complete a modern and versatile professional solution.
INSTALLATEUR FINDEN
XB2797HSN-B1 – IIYAMA PROLITE FULL HD 27" IPS MONITOR - INTEGRATED SPAEKERS
The 27-inch iiyama ProLite XB2797HSN-B1 monitor is a professional solution designed to improve productivity and connectivity thanks to the Full HD 1920x1080 IPS panel , the USB-C dock with Power Delivery up to 65W and the integrated RJ45 LAN port , which allow you to manage video, data and power through a single cable. The 100Hz refresh rate , 1 ms MPRT response time and Adaptive Sync support ensure smooth and detailed images, while the ergonomic stand adjustable up to 150 mm in height , with Pivot, Swivel and Tilt functions, ensures maximum operating comfort. TÜV Rheinland Eye Comfort , Flicker Free technologies and integrated speakers complete a monitor ideal for modern offices and advanced professional workstations.
Main features:
- 27" WUXGA (1920x1200) IPS display
- 100Hz refresh rate for smoother viewing
- Response time 1 ms MPRT
- Integrated USB-C dock with Power Delivery up to 65W
- Built-in RJ45 LAN port
- Built-in 4-port USB hub
- DisplayPort MST output for multi-monitor setups
- Adaptive Sync technology
- Ergonomic support adjustable up to 150 mm in height
- Pivot, Swivel and Tilt functions
- Built-in 2 x 2W speakers
- Flicker Free technology and Eye Comfort certification
- Flicker Free technology to reduce eye strain
- 4-sided borderless design
- Brightness 350 cd/m²
- Native contrast 1500:1
- VESA mounting 100x100 mm
- 5-year warranty for greater reliability over time
Further details
The integrated USB-C dock with Power Delivery up to 65W allows you to simultaneously manage power, data transfer, audio, and video through a single cable. This solution dramatically reduces cable clutter on your desk, simplifies notebook connection, and makes working in the office, shared spaces, and remote workspaces more efficient.
The built-in 2W speakers deliver clear, instantly available audio for video conferences, online courses, multimedia, and everyday tasks. Eliminating the need for external speakers allows for a cleaner, more organized, and more professional desk.
Thanks to the presence of USB-C , HDMI , DisplayPort , a built-in 4-port USB hub and an RJ45 LAN port , the monitor becomes a true connection center for notebooks, peripherals and professional accessories. The possibility of also using the DisplayPort MST output for multi-monitor setups further increases productivity and efficient workspace management.
Technical data sheet
| Model | XB2797HSN-B1 |
| DISPLAY CHARACTERISTICS | |
| Design | 4-side slim bezel |
| Diagonal | 27", 68.6cm |
| Panel | IPS panel technology LED, matte finish |
| Native resolution | 1920 x 1080 @100Hz (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Brightness | 350 cd/m² |
| Static contrast | 1500:1 |
| Advanced contrast | 80M:1 |
| Response time (MPRT) | 1ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Color support | 16.7 million |
| Horizontal Sync | 30 - 115kHz |
| Viewable area W x H | 597.9 x 336.3mm, 23.5 x 13.2" |
| Pixel pitch | 0.311mm |
| Color | matte, black |
| INTERFACES / CONNECTORS / CONTROLS | |
| Signal input |
HDMI x1 (v.1.4) |
| USB HUB |
x4 (2x Type-A v.3.2 Gen 1 (5Gbps, 4.5W) 2x Type-C (5Gbps, 7.5W)) |
| USB-C DOCK |
x1 (Power delivery 65W, LAN, DP out, USB v.3.2 (Gen 1, 5Gbit)) |
| HDCP | Yes |
| Headphone connector | Yes |
| RJ45 (LAN) | x1 |
| FEATURES | |
| Flicker free | Yes |
| Extra | i-Style color, Eye Comfort |
| OSD languages | EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL, UA |
| Control buttons | Joystick: (Centre) Power/Menu, Up/Signal Select, Down, Left/Shortcut, Right/Volume |
| User controls | picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), color settings (i-Style colour, RGB range, color temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed, MST DP-out), extra 2 (shortcut key, Mac address, FW version), input select, audio settings (volume, mute), reset (reset all?) |
| Speakers | 2 x 2W |
| Convenience | Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX |
| MECHANICAL | |
| Display position adjustments | height, swivel, tilt, pivot (rotation both sides) |
| Height adjustment | 150mm |
| Rotation (PIVOT function) | 90° |
| Swivel stand | 120° left; 60° right |
| Tilt angle | 23rd up; 5th down |
| VESA mounting | 100 x 100mm |
| ACCESSORIES INCLUDED | |
| Cables | power (1.5m), HDMI (1.5m), USB-C (1.0m) |
| Other | quick start guide, safety guide |
| POWER MANAGEMENT | |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power Usage | 17W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | D |
| REACH SVHC | above 0.1%: Lead, Lead monoxide, Diboron trioxide |
| Warranty | 5 years (for details and eligible countries please check the Warranty section of our website) |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 611.5 x 403.5 (547.5) x 209.5mm |
| Box dimensions W x H x D | 691 x 447 x 142mm |
| Weight (without box) | 5.4kg |
| Weight (with box) | 8.0kg |
