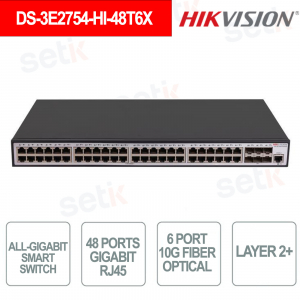

NETWORK SWITCH - 48 GIGABIT RJ45 PORTS 6 10G FIBER OPTIC PORTS - HIKVISION - DS-3E2754-HI-48T6X

48 Gigabit RJ45 ports and 6 10G fiber optic ports - Total switching capacity 216Gbps - Packet Forwarding Rate: 160.71Mbps - IEEE 802.3ad and static port aggregation - Dimensions: 440×260×43.60 mm - Net weight less than 3.6Kg.
Product details
- Network Switch - HIKVISION - DS-3E2754-HI-48T6X
 - Manageable
 - Layer 2+
 - 48 × Gigabit RJ45 ports
 - 6 × 10G fiber optic ports
 - Switching capacity: 216Gbps
 - Forwarding rate 160.71 Mbps
 - Power supply: AC:100V~240V AC,50/60Hz
 - Dimensions: 440×260×43.6
 - Net weight of the item: 3.60 kg
 - Operating temperature: -5ºC to 45ºC

Technical data sheet
| DS-3E2754-HI-48T6X | |
| General | |
| Shell | Metal |
| Net Weight | 3.60 kg (7.93 lb) |
| Gross Weight | 4.95 kg (10.91 lb) |
| Dimensions (W × H × D) | 440.00 mm × 260.00 mm × 43.60 mm (17.32'' × 10.23'' × 1.71'') |
| Operating Temperature | -5 °C to 45 °C (23 °F to 113 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 10% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | AC:100V~240V AC,50/60Hz |
| Installation Mode | Rack (equipped with mounting ears) |
| Max. Power Consumption | 53 W |
| Power Consumption at Idle | 19 W |
| Surge Protection | 6kV |
| Network Parameters | |
| Ports | 48×Gigabit RJ45 port,6×10G fiber optical port |
| MAC Address Table | 32K |
| Internal Cache | 2.0 Mbits |
| Switching Capacity | Whole-Device Performance: 216Gbps Port Performance: 216 Gbps  |
| Packet Forwarding Rate | Whole-Device Performance: 160.71 Mpps Port Performance: 160.71 Mpps  |
| Software Function | |
| Ethernet | LLDP Static MAC configuration Limit of number of MAC addresses to be learned (up to 32K) Port mirroring and traffic mirroring Port aggregation (up to 24 groups and 8 ports for each group) Port isolation STP/RSTP/MSTP IEEE 802.3ad (dynamic link aggregation) and static port aggregation RRPP/ERPS (Ethernet Ring Protection Switching) VRRP  |
| VLAN | 802.1Q (up to 4K VLAN) Protocol-based VLAN MAC-based VLAN GUEST VLAN VLAN mapping MVRP |
| IP Routing | Static routing RIPv1/v2 and RIPng OSPFv1/v2 and OSPFv3 IS-IS Hardware-based IPv4/IPv6 routing Inter VLAN routing  |
| DHCP | DHCP Client DHCP Snooping DHCP Snooping option82 DHCP Relay DHCP Server  |
| Multicast | IGMP V1/V2/V3 snooping PIM Snooping Multicast VLAN IPv6 multicast settings  |
| QoS | SP/WRR/SP+WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit |
| ACL | ACL on Layer 2, Layer 3 and Layer 4 IPv4 and IPv6 ACLs VLAN ACL Ingress:1280.Egress:512 |
| Security | Hierarchical user management and password protection SSH for a secure encrypted channel for user login Specific IP address based FTP logging and password mechanism Prevent attacks from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packet MAC address limit IP+MAC+PORT binding IEEE 802.1x Radius and AAA SNMPv3 Broadcast suppression  |
| System Management | Command line configuration via console/AUX Modem/Telnet/SSH Uploading and downloading of FTP, TFTP, and Xmodem, and SFTP files SNMP V1/V2c/V3 sFlow NQA NTP clock System operating logs  |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.  |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)  |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014 (Second Edition) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
