The TP-Link Omada EAP650 D120-Outdoor is a dual-band Wi-Fi 6 access point designed for indoor and outdoor environments, ideal for warehouses and outdoor spaces. It offers speeds of up to 3 Gbps (2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz), ensuring fast and reliable connections. Equipped with built-in high-gain directional antennas, it ensures extensive and precise coverage.
 The rugged IP68-certified enclosure makes it dust and water resistant, suitable for operating temperatures from -30°C to +70°C. Centralized management via Omada SDN allows for unified and remote control of the network.
TOTALER AUSVERKAUF ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

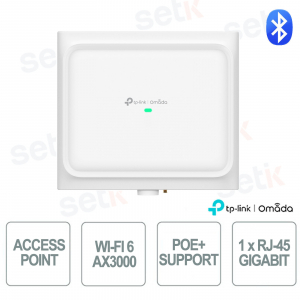

EAP650 D120-Outdoor ACCESS POINT FOR WALL OR POLISHED DUAL-BAND Wi-Fi 6 AX3000 - TPLINK OMADA
The TP-Link Omada EAP650 D120-Outdoor is a dual-band Wi-Fi 6 access point designed to provide high-speed connections and extended coverage, perfect for warehouses, industrial environments and outdoor spaces. Thanks to Wi-Fi 6 technology, it guarantees speeds of up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, optimizing performance for a large number of simultaneously connected devices.
 Equipped with 4 high-gain directional antennas, it provides targeted and ultra-wide coverage, ensuring stable connections even over long distances. Fast roaming support allows devices to automatically switch between access points without interruption, ensuring a smooth connection experience throughout the area.
 The 2.5G PoE+ port unlocks the full potential of Wi-Fi 6, making it easy to install and power with a single Ethernet cable. Designed to withstand the harshest environments, the device is enclosed in an IP68-certified casing, protecting it from dust, water and extreme temperatures from -40°C to +70°C, making it ideal for industrial and outdoor applications.
 With Omada SDN centralized management, Omada Mesh support and Bluetooth connectivity, the EAP650 D120-Outdoor provides a powerful, scalable and easily remotely manageable network.

Main features:
- High-performance Dual-Band Wi-Fi 6 : Speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz and greater capacity and stability for more connected devices
 - Ultra-extensive and targeted coverage : 4 built-in high-gain directional antennas and more focused signal for optimal coverage even over long distances
 - Smooth connection and fast roaming : Fast Roaming to automatically switch between access points without interruption and ideal for large areas with frequent device movements
 - Maximum transmission speed : 2.5G PoE+ port to unlock the full potential of Wi-Fi 6 and power and data transmission with a single Ethernet cable
 - Rugged and designed for harsh environments : IP68 certification, dust and water resistant and operating temperature range: -40°C to +70°C, ideal for warehouses, industrial and outdoor environments
 - Advanced management and remote control : Omada SDN for centralized cloud management, Omada Mesh support for network expansion without additional cabling, and Bluetooth connectivity for quick and easy setup

Technical data sheet
| Model | EAP650 D120-Outdoor |
| HARDWARE FEATURES | |
| Interface | 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) |
| Key | Reset |
| Diet | 802.3at PoE 48V Passive PoE (PoE Adapter Included)  |
| Energy consumption | EU: 12.5W (802.3at PoE or Passive PoE) US: 14.7W (802.3at PoE or Passive PoE)  |
| Dimensions (L x W x H) | 4.2 × 2.2 × 11.1 in (106.5 × 57 × 281 mm) (without antenna & mounting kit)  |
| Antenna type | 2.4GHz: 2×4dBi 5GHz: 2×5dBi  |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP67 |
| Mounting type | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 2.4GHz: 200+m* 5GHz: 500m+*  |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4GHz, 5GHz |
| Signal rate | • 802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160) • 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps  |
| Transmission power | CE: <20 dbm="" 2="" 4="" ghz="" eirp="" 30="" 5="" br=""> FCC: <25 dbm="" 2="" 4="" ghz="" 25="" 5="" td=""> |
| Wireless functionality | 1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) MU-MIMO Omada Mesh Seamless Roaming(802.11k/v/r)§ Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client  |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise  |
| MANAGEMENT | |
| Omada App | Yes |
| Restore & Backup | Yes |
| NTP | Yes |
| Centralized Management | Yes, through Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller  |
| Cloud Access | Yes, through Omada Cloud-Based Controller OC300 OC200 Omada Software Controller  |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c |
| Local and remote system logs | Yes |
| SSH | Yes |
| Web-based management | Yes |
| L3 Management | Yes |
| Multisite Management | Yes |
| VLAN Management | Yes |
| Zero Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Contents | Access Point EAP650-Outdoor Passive PoE Adapter Power Cord Mounting Kits Installation Guide  |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: -30–70℃ (-22–158℉) Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing  |
|
 Designed for warehouses
  |
|
|
 Improve WiFi experience for shelf areas with directional antennas
  |
|
|
 Directional antennas for ultra-range coverage in outdoor scenarios
  |
|
|
 Stay smooth with seamless roaming
  |
|
|
 Seamless integration into Omada SDN
  |
|
|
 2 year warranty The following product is covered by a 2 year warranty  |
|
