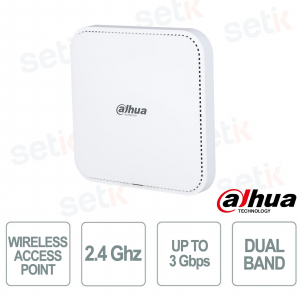

EAP6230-C | INDOOR WIRELESS ACCESS POINT


Dahua

The Dahua EAP6230-C Wi-Fi 6 Access Point delivers speeds of up to 3 Gbps, ideal for offices, schools, and public facilities requiring a stable and secure network. Thanks to MU-MIMO and OFDMA technologies, it handles multiple devices without slowing down and offers seamless roaming for seamless travel. The compact ceiling-mounted design, PoE power supply, and simple configuration enable quick installation and centralized control via a cloud platform. The 2.4/5 GHz dual band ensures wide coverage and a uniform signal, while advanced WPA3 security and access filters keep data and devices safe 24/7.

Main specifications:

- Wi-Fi 6 up to 3 Gbps with MU-MIMO and OFDMA

- Seamless roaming and extended coverage without dead zones

- Dual band 2.4/5 GHz for stable and flexible connections

- Quick installation with PoE and remote cloud management

- Advanced security with WPA3 and IP/MAC filters

Further details

Seamless Roaming:
It allows users to move freely between different areas while maintaining a stable and uninterrupted connection, essential for environments with multiple access points.
Wide Coverage :
Built-in high-gain antennas provide extended coverage and uniform signal, eliminating dead spots and ensuring high performance even in complex spaces.
Dual-Band Wi-Fi:
It supports both 2.4GHz and 5GHz bands simultaneously, providing connection flexibility and optimal performance for various devices and applications.
One Network:
Easily integrate data networks and video surveillance systems, simplifying management and optimizing network infrastructure.
Quick Deployment :
Quick installation thanks to the compact design, PoE support and simplified configuration via web interface or cloud platform.
Efficient Maintenance:
Centralized management with advanced tools such as network topology, access control, firmware updates and real-time monitoring via DoLynk Care .
Security Guarantee:
24/7 security with WPA3 encryption , IP and MAC filters, user isolation and sensitive data protection for a network that is always protected .

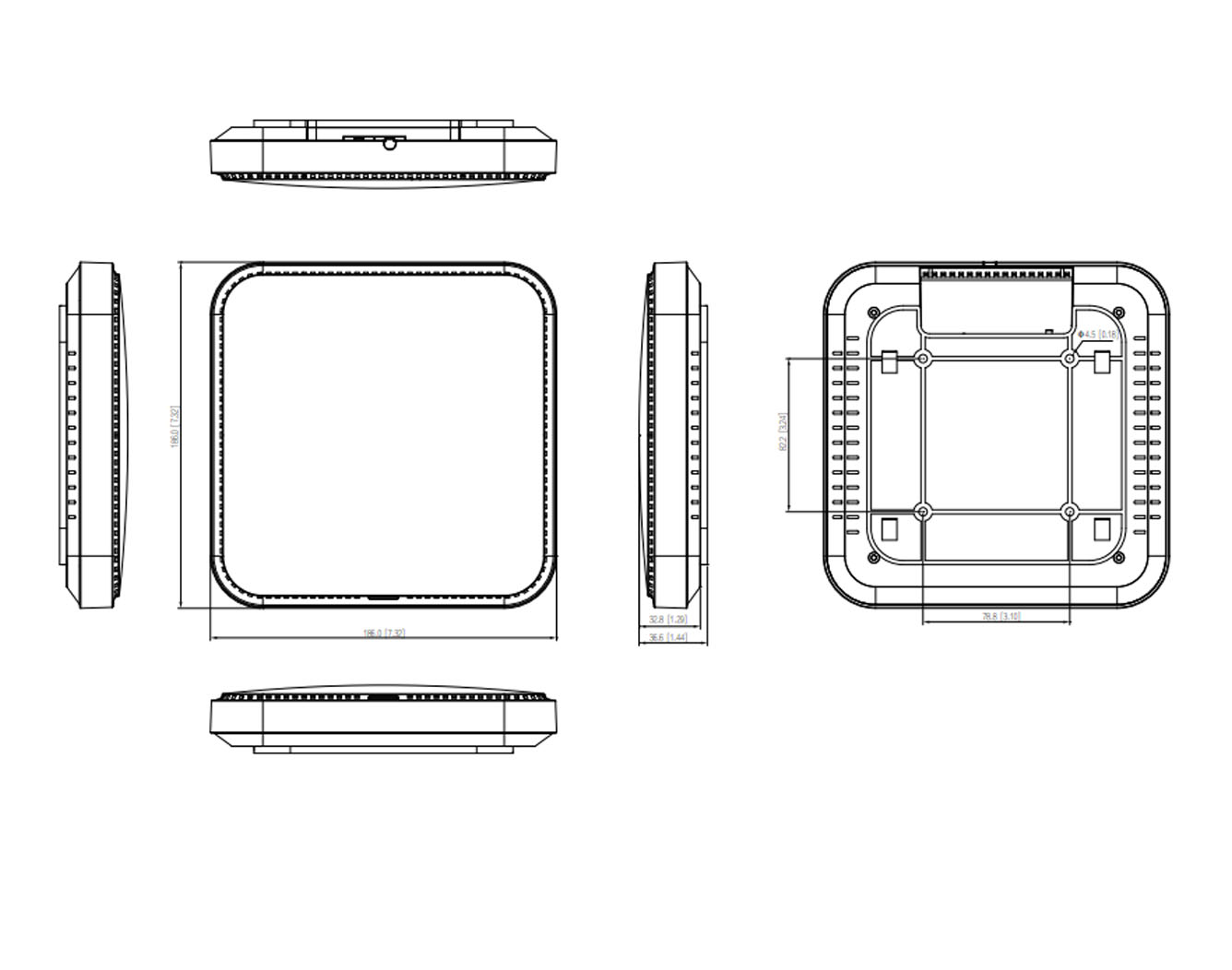

EAP6230-C dimensions

Technical data sheet

Model EAP6230-C
Basic
Device Type

AP

Hardware
WAN Port

1 × 10/100/1000 Mbps Base-T (PoE In)

Power Supply

12V DC,1A;
802.3af PoE;
802.3 at PoE;

Antenna Type

Omnidirectional

Built-in Antenna

2.4 GHz: 2 × 4 dBi;
5 GHz: 2 × 4.0 dBi

Memory

DDR: 512 MB

Indicator Light 1 × SYS
1 × WAN
External Port 1 × Console
Performance
Wireless Standard 2.4 GHz: IEEE 802.11b/g/n/ax
5 GHz: IEEE 802.11a/n/ac/ax
Wireless Transmission Rate 2.4 GHz: 574 Mbps;
5 GHz: 2402 Mbps
Operating Frequency 2.4 GHz: 2.484 GHz;
5.150 GHz–5.850 GHz
Channel Width 2.4 GHz: 20/40/80 MHz;
5 GHz: 20/40/80/160 MHz
2.4 GHz Antenna Gain 4 dBi
5 GHz Antenna Gain 4 dBi
Max. Output Power CE EIRP:
≤20 dBm@2400-2483.5 MHz;
≤23 dBm@5150-5250 MHz;
≤23 dBm@5250-5350 MHz;
≤27 dBm@5470-5725 MHz;
≤14 dBm@5725-5850 MHz
FCC output power:
≤27 dBm@2400-2483.5 MHz;
≤24 dBm@5150-5250 MHz;
≤24 dBm@5250-5350 MHz;
≤24 dBm@5470-5725 MHz;
≤30 dBm@5725-5850 MHz
2.4 GHz Max Power Output 24 dBm
5 GHz Max Power Output 22 dBm
Receiver Sensitivity

11ac VHT20_MCS0: -88 dBm
11ac VHT20_MCS7: -70 dBm
11ac VHT40_MCS0: -88 dBm
11ac VHT40_MCS7: -68 dBm
11ax HE20_MCS0: -88 dBm
11ax HE20_MCS11: -62 dBm
11ax HE40_MCS0: -86 dBm
11ax HE40_MCS11: -58 dBm

Max. Transmission Distance 20 m (65.62 ft)
Optimal Transmission Distance 15 m (49.21 ft)
SSID Number 2.4 GHz: 4;
5 GHz: 4
Connected Wireless Terminals 2.4 GHz: 64;
5 GHz: 64
PoE PoE In: 802.3af/at (15W/30W)

Function

Equipment Management

Web; platform; app

Network Protocol

TCP/IP;IPv4;UDP;NTP;DHCP;DNS;QoS;ICMP;ARP;IP Filter;TCP;SMB;NFS;MQTT;802.11k;802.11v;802.11e;WMM;IGMP V3

Operating Mode

FIT AP
FAT AP
Gateway mode

Encryption Mode

No Encryption
WPA/WPA2PSK; WPA2/WPA3PSK

Firmware Update

Web update; AC remote update

Security Mechanism

IP address filtering; MAC address filtering

MU-MIMO 2 x 2
Beamforming

Yes

TWT

No

DHCP

Yes (under gateway mode)

NAT

Yes (under gateway mode)

QoS

Yes

DDNS

No

Wireless Repeater

No

MESH

No

Software

Device Management: setup wizard; network connection method; back up/restore configuration;
restore factory defaults; schedule restart; system logs; change password; firmware upgrade; system time; fat/fit mode; cloud platform configuration
AP Management: Wi-Fi settings; VLAN ID configuration; frequency configuration; country/region configuration; 5G-Prior access configuration; scheduled Wi-Fi shutdown
Client Management: MAC ACL; user isolation; limit users that can access

Function

Power Consumption

Full load: 14 W;
Idling: 5 W

Operating Temperature

–10 °C to +45 °C (+14 °F to +113 °F)

Storage Temperature

-40 °C to +70 °C (-40 °F to +158 °F)

Operating Humidity

5%–95% (RH), non-condensing

Net Weight

0.55 kg (1.21 lb)

Gross Weight

0.89 kg (1.96 lb)

Product Dimensions 186 mm × 186 mm × 36 mm (7.32" × 7.32" × 1.42") (L × W × H)
Packaging Dimensions

243 mm × 235 mm × 76 mm (9.57" × 9.25" × 2.99") (L × W × H)

Statics Protection

Air discharge: 8 kV;
Contact discharge: 6 kV

Lightning Protection

Common mode: 2 kV;
Differential mode: 1 kV

Installation

In-ceiling mount; wall mount

Certifications

THERE IS

Packing List

1 × Device;
1 × Wall-mounting Kit
1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Network Cable;
1 × Bracket
