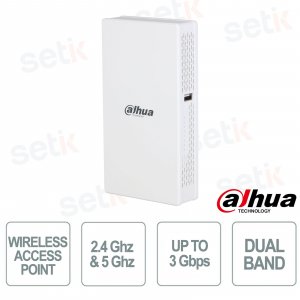

EAP6230-W | INDOOR WALL-MOUNTED WIRELESS ACCESS POINT


Dahua

The Dahua EAP6230-W wall-mounted Wi-Fi 6 access point offers ultra-fast connections of up to 3 Gbps, perfect for hotels, offices, and retail spaces requiring a stable and secure network. Thanks to MU-MIMO and OFDMA technologies, it handles multiple devices without performance loss and ensures seamless roaming for uninterrupted connections. The compact design with Gigabit ports, quick installation via PoE, and simplified cloud management make setup quick and intuitive. With dual 2.4/5 GHz bands, extended coverage, and advanced security with WPA3 encryption and IP/MAC filters, it ensures 24/7 protection and reliability.

Main specifications:

- Wi-Fi 6 up to 3 Gbps with MU-MIMO and OFDMA

- Seamless roaming and wide coverage without dead zones

- Dual band 2.4/5 GHz for stable and flexible connections

- Quick installation with PoE and simplified cloud management

- Advanced security with WPA3, IP and MAC filtering

Further details

Seamless Roaming:
It allows you to move between different areas while maintaining a stable and continuous connection, without interruptions or signal drops.
Wide Coverage :
Built-in high-gain antennas ensure wide, uniform coverage, eliminating dead zones and ensuring a strong signal everywhere.
Dual-Band Wi-Fi:
It supports 2.4GHz and 5GHz networks simultaneously, offering connection flexibility, less interference and higher speed for any type of device.
One Network:
It allows you to integrate the data network and video surveillance into a single system, simplifying management and improving overall efficiency.
Quick Deployment :
Quick and easy installation thanks to the compact design, PoE power supply and an intuitive setup wizard.
Efficient Maintenance:
Advanced management and monitoring via the DoLynk Care platform , with firmware updates, access control and remote diagnostics .
Security Guarantee:
24/7 protection with WPA3 encryption , IP and MAC filters and user isolation to prevent intrusions and protect sensitive data .

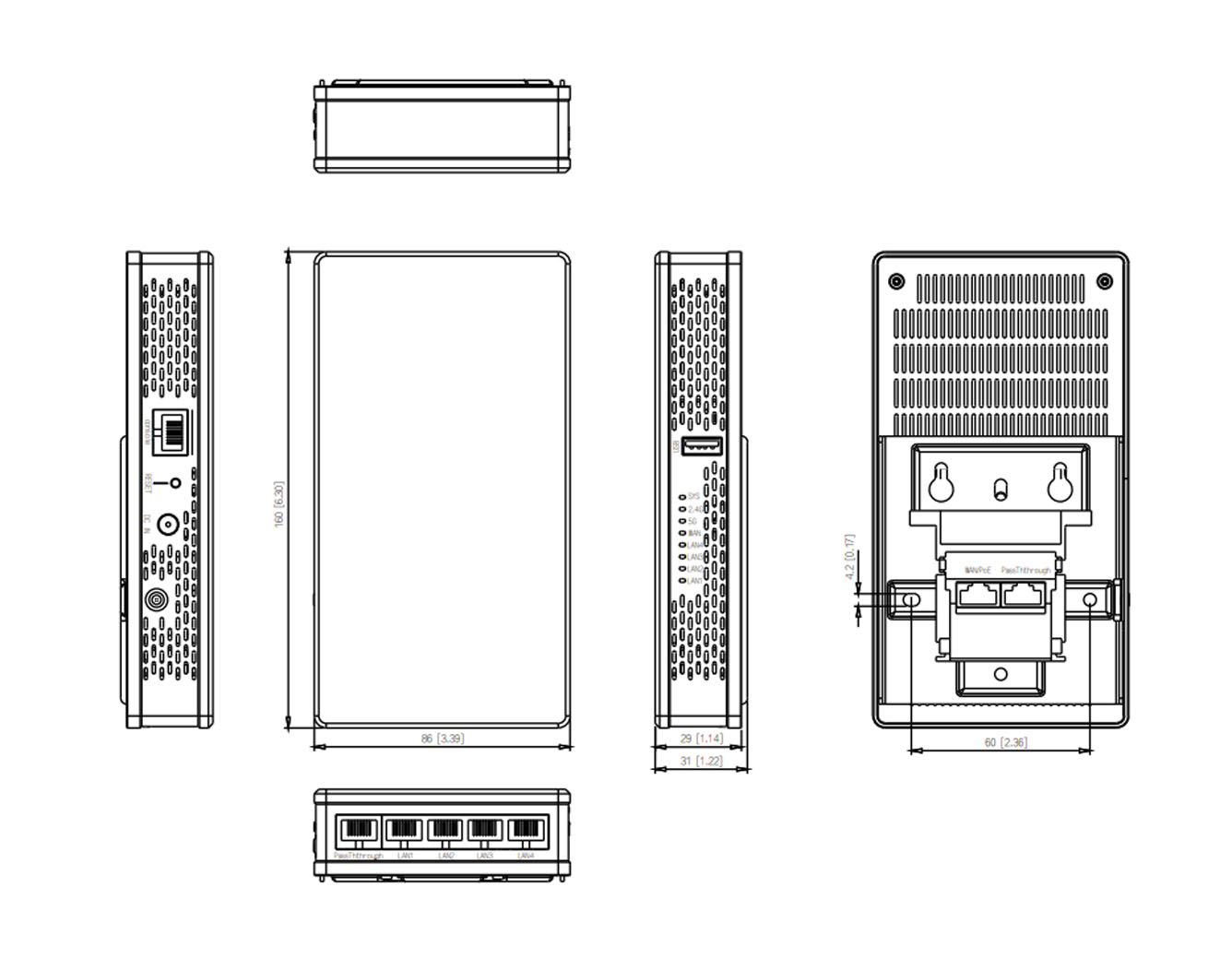

EAP6230-W dimensions

Technical data sheet

Model EAP6230-W
Basic
Device Type

AP

Hardware
WAN Port

1 × 10/100/1000 Mbps Base-T (PoE In)

LAN Port

4 x 10/100/1000 Mbps Base-T RJ-45 (LAN)
2 x 10/100/1000 Mbps Base-T RJ-45(Pass Through)

Power Supply

12V DC,1A;
802.3af PoE;
802.3 at PoE;

Antenna Type

Omnidirectional

Built-in Antenna

2.4 GHz: 2 × 2 dBi;
5 GHz: 2 × 2 dBi

Memory

DDR: 512 MB

Indicator Light 1 × SYS
1 × WAN
4 × LAN
1 × 2.4G Wi-Fi
1 × 5G Wi-Fi
External Port USB 2.0
Performance
Wireless Standard 2.4 GHz: IEEE 802.11b/g/n/ax
5 GHz: IEEE 802.11a/n/ac/ax
Wireless Transmission Rate 2.4 GHz: 574 Mbps;
5 GHz: 2402 Mbps
Operating Frequency 2.4 GHz: 2.484 GHz;
5.150 GHz–5.850 GHz
Channel Width 2.4 GHz: 20/40/80 MHz;
5 GHz: 20/40/80/160 MHz
2.4 GHz Antenna Gain 2 dBi
5 GHz Antenna Gain 2 dBi
Max. Output Power CE EIRP:
≤20 dBm@2400-2483.5 MHz;
≤23 dBm@5150-5250 MHz;
≤23 dBm@5250-5350 MHz;
≤27 dBm@5470-5725 MHz;
≤14 dBm@5725-5850 MHz
FCC output power:
≤27 dBm@2400-2483.5 MHz;
≤24 dBm@5150-5250 MHz;
≤24 dBm@5250-5350 MHz;
≤24 dBm@5470-5725 MHz;
≤30 dBm@5725-5850 MHz
2.4 GHz Max Power Output 20 dBm
5 GHz Max Power Output 20 dBm
Receiver Sensitivity

11ac VHT20_MCS0: -87 dBm
11ac VHT20_MCS7: -64 dBm
11ac VHT40_MCS0: -84 dBm
11ac VHT40_MCS7: -59 dBm
11ax HE20_MCS0: -87 dBm
11ax HE20_MCS11: -56 dBm
11ax HE40_MCS0: -83 dBm
11ax HE40_MCS11: -52 dBm

Max. Transmission Distance 15 m (49.21 ft)
Optimal Transmission Distance 10 m (32.81 ft)
SSID Number 2.4 GHz: 4;
5 GHz: 4
Connected Wireless Terminals 2.4 GHz: 64;
5 GHz: 64
PoE PoE In: 802.3af/at (15W/30W)

Function

Equipment Management

Web; platform; app

Network Protocol

TCP/IP;IPv4;UDP;NTP;DHCP;DNS;QoS;ICMP;ARP;IP Filter;TCP;SMB;NFS;MQTT;802.11k;802.11v;802.11e;WMM;IGMP V3

Operating Mode

FIT AP
FAT AP
Gateway mode

Encryption Mode

No Encryption
WPA/WPA2PSK; WPA2/WPA3PSK

Firmware Update

Web update; AC remote update

Security Mechanism

IP address filtering; MAC address filtering

MU-MIMO 2 x 2
Beamforming

Yes

TWT

No

DHCP

Yes (under gateway mode)

NAT

Yes (under gateway mode)

QoS

Yes

DDNS

No

Wireless Repeater

No

MESH

No

Software

Device Management: setup wizard; network connection method; back up/restore configuration;
restore factory defaults; schedule restart; system logs; change password; firmware upgrade; system time; fat/fit mode; cloud platform configuration
AP Management: Wi-Fi settings; VLAN ID configuration; frequency configuration; country/region configuration; 5G-Prior access configuration; scheduled Wi-Fi shutdown
Client Management: MAC ACL; user isolation; limit users that can access

Function

Power Consumption

Full load: 18 W;
Idling: 5.6 W

Operating Temperature

–20 °C to +55 °C (–4 °F to +131 °F)

Storage Temperature

-40 °C to +70 °C (-40 °F to +158 °F)

Operating Humidity

5%–95% (RH), non-condensing

Net Weight

0.26 kg (0.57 lb)

Gross Weight

0.39 kg (0.86 lb)

Product Dimensions 160 mm × 86 mm × 29 mm (6.30" × 3.39" × 1.14") (L × W × H)
Packaging Dimensions

177 mm × 102 mm × 54 mm (6.97" × 9.25" × 2.99") (L × W × H)

Statics Protection

Air discharge: 8 kV;
Contact discharge: 6 kV

Lightning Protection

Common mode: 2 kV;
Differential mode: 1 kV

Installation

Wall mount

Certifications

THERE IS

Packing List

1 × Device;
1 × Wall-mounting Kit
1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Bracket
