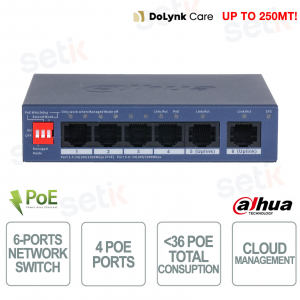

PoE Switch CS4006-4GT-36 6 Gigabit Ports 4 PoE 36W Cloud VLAN Watchdog 250m - Dahua

PoE Switch CS4006-4GT-36 6 Gigabit Ports 4 PoE 36W Cloud VLAN Watchdog 250m - Dahua

 
-56%

CS4006-4GT-36 - The switch is a compact and high-performance solution for IP networks that integrates DoLynk cloud management with real-time monitoring and topology visualization , ideal for small systems and video surveillance. Equipped with 6 total Gigabit ports with 4 PoE ports and 2 uplink ports , it offers a 36W PoE budget with IEEE 802.3af/at support , ensuring stable power supply to devices. It supports transmission up to 250 meters with Long Distance PoE and integrates PoE Watchdog for automatic port restart , ensuring operational continuity. The metal design with surge protection up to 6kV, VLAN and loop protection guarantees reliability and safety even in professional environments. Dahua

Technical Data Sheet

Artikel-Nr.: CS4006-4GT-36

Marke: Dahua

EAN: 6939554922244

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

CS4006-4GT-36 | 6-Port Cloud-Managed Network Switch with 4 PoE Ports - Dahua


Dahua

The Dahua CS4006-4GT-36 switch is a compact and professional solution for IP networks that integrates DoLynk cloud management with real-time monitoring and topology visualization , ideal for small systems and video surveillance. Thanks to the 6 Gigabit ports in total with 4 PoE ports and 2 uplinks , it offers a 36W PoE budget with IEEE 802.3af/at support , ensuring stable power supply to devices. It supports transmission up to 250 meters with Long Distance PoE and integrates PoE Watchdog for automatic port restart , ensuring business continuity. The metal design with surge protection up to 6kV, VLAN and loop protection ensures reliability and safety even in professional environments.

Main specifications:

- DoLynk cloud management with real-time monitoring and remote control

- 6 total Gigabit ports: 4 PoE + 2 uplinks with 36W budget

- IEEE 802.3af/at support for powering network devices

- PoE transmission up to 250 meters (Long Distance)

- PoE Watchdog for automatic port reboot

- VLAN and loop protection support for network stability and security

Further details

✅ Number of doors:
The switch features a total of 6 Gigabit ports , with 4 PoE ports dedicated to powering devices and 2 uplink ports , ensuring stable connectivity, expandability and optimal management of network traffic.
✅ Cloud Management:
T hus the DoLynk Care platform , it offers centralized cloud management , with real-time monitoring, automatic notifications and full remote control , improving operational efficiency and maintenance.
✅ Network Topology Management:
It supports LLDP protocol for detailed network topology visualization , enabling quick diagnostics, problem identification and intelligent device management.
✅ PoE Watchdog :
It integrates the advanced PoE Watchdog function , which allows the automatic restart of the PoE ports in case of malfunctions or lack of traffic , ensuring operational continuity and reducing manual interventions.
✅ Loop Protection :
Loop protection system that automatically detects anomalies and activates safety mechanisms to prevent broadcast storms and maintain LAN network stability.
✅ Performance :
 And high performance with switching capacity up to 12 Gbps and forwarding rate of 8.9 Mpps , VLAN support up to 32 groups and advanced traffic management, ensuring fast, stable and reliable network even in professional environments.

Technical data sheet

PRODUCT CS4006-4GT-36
Basic
Layer Layer 2
Switching Capacity 12 Gbps
Packet Forwarding Rate 8.9 Mpps
Description of Function Slots Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE)
Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External power supply: 53 VDC, 0.8 A
Power Consumption Idling: ≤ 3 W
Full load: 42.4 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV
Net Weight 0.2 kg (0.44 lb)
Gross Weight 0.72 kg (1.59 lb)
Product Dimensions 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Packaging Dimensions 195 mm × 114 mm × 83 mm (7.68" × 4.49" × 3.27") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
PoE
PoE Yes
PoE Power Port 1-4 ≤ 30W, total ≤ 36W
PoE Protocol IEEE 802.3af; IEEE 802.3at
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment 1, 2, 4, 5（V+）, 3, 6, 7, 8（V-）
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 232.62 years
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 2K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
VLAN Number 32
Feature
VLAN Function IEEE 802.1Q VLAN
Link Aggregation Static Aggregation
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
