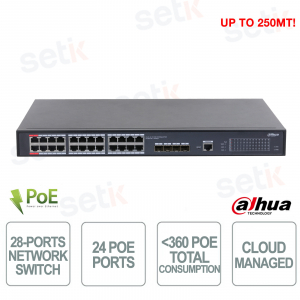

S5428-24GT4XF-360 Switch L2+ PoE 10G 360W with 24 Gigabit Ports and 4 SFP+ - Dahua

S5428-24GT4XF-360 Switch L2+ PoE 10G 360W with 24 Gigabit Ports and 4 SFP+ - Dahua

 
-56%

S5428-24GT4XF-360 - is a L2+ Managed Gigabit PoE switch designed for professional networks, corporate infrastructures and high-performance video surveillance systems. Equipped with 24 Gigabit PoE ports and 4 SFP+ 10Gbps uplink ports , it ensures fast and stable data transmission even in high-traffic scenarios. It supports a total PoE power of up to 360W with IEEE 802.3bt technology and Hi-PoE up to 90W on the dedicated ports for high-power consumption devices. The advanced STP/RSTP/ERPS , Link Aggregation , VLAN IEEE 802.1Q , management via DoLynk Care Cloud , Web and SNMP ensure maximum stability, security and complete control of the professional network. Dahua

Technical Data Sheet

Artikel-Nr.: S5428-24GT4XF-360

Marke: Dahua

EAN: 6923172577306

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

S3220-16GT-240 | 28-Port Managed Network Switch with 24 PoE Ports - Dahua


Dahua

The Dahua S5428-24GT4XF-360 is an L2+ Managed Gigabit PoE switch ideal for corporate networks, professional infrastructures and high-performance IP video surveillance systems. Thanks to its 24 Gigabit PoE ports and 4 10Gbps SFP+ uplink ports , it guarantees fast and stable data transmission even in high-traffic scenarios. It supports a total PoE power of up to 360W with IEEE 802.3bt technology and Hi-PoE up to 90W on dedicated ports to power PTZ cameras, access points and high-power consumption devices. The advanced STP/RSTP/ERPS , Link Aggregation , IEEE 802.1Q VLAN , management via Cloud, Web and SNMP , as well as protection against surges and broadcast storms, ensure reliability, security and business continuity in complex professional environments.

Main specifications:

- 24 RJ45 Gigabit PoE ports

- 4 SFP+ 1/10Gbps uplink ports

- Total PoE power up to 360W

- Supports IEEE 802.3bt and Hi-PoE up to 90W

- Layer 2+ Managed Switch

- Cloud, Web and SNMP Management

- IEEE 802.1Q VLAN support

- LACP static and dynamic link aggregation

- STP, RSTP and ERPS support

- Switching capacity up to 128 Gbps

- Advanced QoS and IGMP Snooping

- Loop, surge and broadcast storm protection

Further details

✅ Number of doors:
The Dahua switch features 24 RJ45 Gigabit PoE ports dedicated to connecting IP cameras, access points and professional network devices, as well as 4 SFP+ 10Gbps uplink ports ideal for fiber optic backbones and ultra-high-speed data transmission in complex enterprise environments.
✅ BT 90W :
The red ports support IEEE 802.3bt and Hi-PoE standards up to 90W , allowing power-hungry devices such as PTZ cameras, speed domes and professional access points to be powered via a single Ethernet cable, optimizing installation and cabling.
✅ Link Aggregation :
Link Aggregation technology with static and dynamic LACP support combines multiple physical connections into a single virtual channel, improving bandwidth, traffic balancing, and network redundancy to ensure stable and continuous connections.
✅ Spanning Tree Protocol :
Advanced support for STP, RSTP, and ERPS protocols prevents network loops and broadcast storms through intelligent redundant paths, increasing the operational stability and security of professional Layer 2 infrastructures.
✅ 10G Uplink :
The 4 SFP+ 10Gbps uplink ports ensure ultra-high-speed transmission for aggregation scenarios, network backbones and handling high concurrent data flows, making them ideal for advanced CCTV systems and enterprise networks.
✅ Performance :
 With a switching capacity of up to 128 Gbps , forwarding rate of 95.232 Mpps , 16 Mbit buffer , Jumbo Frame support up to 12288 Bytes and 32K MAC table , the switch offers high performance and maximum reliability for professional networks with high data traffic.

Technical data sheet

PRODUCT S5428-24GT4XF-360
Basic
Layer Layer 2
Switching Capacity 128 Gbps
Packet Forwarding Rate 95.232 Mpps
Description of Function Slots Port 1-24: 24 × RJ-45 10/100/1000 Mbps (PoE)
Port 25-28: 4 × SFP+ 1/10 Gbps
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +70 °C (-40 °F to +158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply Built-in power supply: 100–240 VAC, 50/60 Hz, 6 A
Power Consumption Idling: 18.8 W
Full load: 418 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 4 kV
Differential mode: 2 kV
Net Weight 3.5 kg (7.72 lb)
Gross Weight 4.4 kg (9.70 lb)
Product Dimensions 440 mm × 306 mm × 44 mm (17.32" × 12.05" × 1.73") (L × W × H)
Packaging Dimensions 528 mm × 412 mm × 112 mm (20.79" × 16.22" × 4.41") (L × W × H)
Installation Rack mount; desktop mount
PoE
PoE Yes
PoE Power Port 1-2 ≤ 90W, Port 3-16 ≤ 30W, total ≤ 360W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
Green PoE
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)
Long Distance PoE Transmission Yes
Hardware
Debugging 1 × Console port
Reset Button 1
Performance
Packet Buffer Size 16 Mbit
Jumbo Frame 12288 Bytes
MAC Table Size 32K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad
VLAN Number 494
VLAN Interface 10
Feature
Ethernet Loop Protection STP/RSTP/ERPS
VLAN Function Port-based VLAN
Link Aggregation LACP
Static Link Aggregation
Dynamic link aggregation
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
IEEE 802.3x Flow Control Yes
Multicast IGMP Snooping
Reliability LLDP
Routing Static routing
DHCP Function DHCP Client
Security 802.1X
Port Isolation
Radius
HTTPS
QoS/ACL SP/WRR queue scheduling
802.1p and DSCP priority mapping
Port speed limit
Equipment Management Cloud Management
Web
SNMP V1/V2C/V3
NTP
Logs
Ping
General
Packing List 1 × User Manual;
1 × Legal and Regulatory Information
1 × Warranty Card
1 × List of Hazardous Substances
1 × Power Cord
1 × Rack-mounting Kit
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
