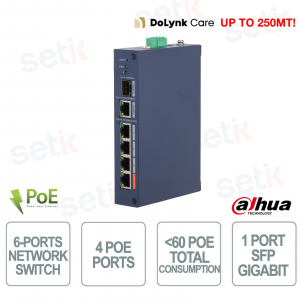

CHS4106-4ET-60 | 6-Port Industrial Managed Network Switch with 4 POE Ports - Dahua
The Dahua CHS4106-4ET-60 is a Hardened Cloud Managed switch ideal for industrial networks, IP video surveillance systems and professional installations in critical environments. Equipped with 4 Fast Ethernet PoE ports , 1 Gigabit RJ45 uplink port and 1 Gigabit SFP port , it ensures stable connections and reliable transmissions even in extreme operating conditions. It supports a total PoE power of up to 60W with Hi-PoE technology up to 60W on the dedicated port to power PTZ cameras and high-power consumption devices. The advanced Cloud Management , Network Topology Management , PoE Watchdog , Long Distance PoE up to 250 meters and Loop Protection functions, combined with the fanless IP30 industrial design with protection against surges, lightning and EMC interference, ensure maximum reliability and business continuity.
Main specifications:
- 4 PoE Fast Ethernet ports + 1 Gigabit RJ45 uplink port
- 1 Gigabit SFP port for fiber optic connections
- Total PoE power up to 60W
- Hi-PoE support up to 60W on the dedicated port
- Cloud Management via DoLynk Care
- Network Topology Management support with LLDP
- PoE Watchdog with automatic port reboot
- Long Distance PoE up to 250 meters
- Loop Protection against broadcast storm
- Hardened IP30 fanless industrial design
- Protection against surges, lightning and EMC
- Desktop and DIN Rail Mount Installation
Further details
With a switching capacity of up to 4.8 Gbps , a forwarding rate of 3.57 Mpps , Jumbo Frame support of up to 9216 Bytes , an 8K MAC table and operating temperatures from -30°C to +65°C , the switch guarantees high reliability and operational continuity even in critical industrial environments.
Technical data sheet
| PRODUCT | CHS4106-4ET-60 |
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 4.8 Gbps |
| Packet Forwarding Rate | 3.57 Mpps |
| Description of Function Slots | Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink) Port 6: 1 × SFP 1000Mbps (uplink) |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Protection | IP30;IK06 |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | External dual power supply (terminal block and DC): 48–57 VDC, 1.354–1.14 A |
| Power Consumption | Idling: 1.7 W Full load: 65 W |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lighting Protection | Common mode: 4 kV Differential mode: 2 kV |
| Net Weight | 0.32 kg (0.71 lb) |
| Gross Weight | 0.88 kg (1.94 lb) |
| Product Dimensions | 154.3 mm × 110.4 mm × 30 mm (6.07" × 4.35" × 1.18") (L × W × H) |
| Packaging Dimensions | 266 mm × 239 mm × 77 mm (10.47" × 9.41" × 3.03") (L × W × H) |
| Casing Material | Iron |
| Installation | DIN rail mount; desktop mount |
| Certifications | THERE IS |
| PoE | |
| PoE | Yes |
| PoE Power | Port 2-4≤30W, port 1≤60W, total≤60W |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE |
| PoE Power Consumption Management | PoE power consumption management; PoE power on/off; turns off PoE if overload is detected; Green PoE |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–) |
| Long Distance PoE Transmission | Yes |
| Hardware | |
| DIP Switch | Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default. Extend mode: The transmission distance of ports 1–4 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps. PoE Watchdog: Monitors the flow of data traffic for ports 1–4. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted. |
| Reset Button | 1 |
| Performance | |
| MTBF | 1,852,444.63 hours |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Bytes |
| MAC Table Size | 8K |
| Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z |
| VLAN Number | 32 |
| Feature | |
| VLAN Function | Port-based VLAN |
| Port Feature | IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control Broadcast Storm Control Port Self-loop Detection |
| Mirror | Local Port Mirroring N:1 Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation |
| Equipment Management | Web Management Cloud Management Logs Fault Alarm |
| General | |
| Packing List | 1 × User Manual 1 × Legal and Regulatory Information 1 × Power Cord 1 × Power Adapter 1 × Terminal Block |
