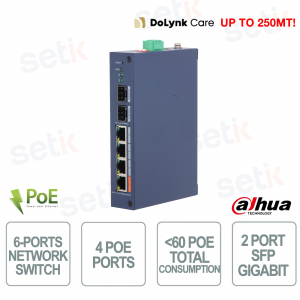

CHS4206-4ET-60 | 6-Port Industrial Managed Network Switch with 4 POE Ports & 2 SFP Ports - Dahua


Dahua

The Dahua CHS4206-4ET-60 is a Hardened Cloud Managed switch ideal for industrial networks, IP video surveillance systems and professional installations in critical environments. Equipped with 4 Fast Ethernet PoE ports and 2 Gigabit SFP uplink ports , it ensures reliable connections and stable transmissions even in extreme operating conditions. It supports a total PoE power of up to 60W with Hi-PoE technology up to 60W on the dedicated port to power PTZ cameras and high-power devices. The advanced Cloud Management , Network Topology Management , PoE Watchdog , Long Distance PoE up to 250 meters and Loop Protection functions, combined with the fanless IP30 industrial design with protection against surges, lightning and EMC interference, ensure maximum reliability and business continuity in industrial and outdoor environments.

Main specifications:

- 4 Fast Ethernet PoE ports

- 2 Gigabit SFP uplink ports

- Total PoE power up to 60W

- Hi-PoE support up to 60W

- Cloud Management via DoLynk Care

- Network Topology Management support with LLDP

- PoE Watchdog with automatic port reboot

- Long Distance PoE up to 250 meters

- Loop Protection against broadcast storm

- Hardened IP30 fanless industrial design

- Protection against surges, lightning and EMC

- Desktop and DIN Rail Mount Installation

Further details

✅ Number of doors:
The Dahua switch integrates 4 Fast Ethernet PoE ports dedicated to connecting IP cameras and network devices, as well as 2 Gigabit SFP uplink ports ideal for fiber optic connections and stable data transmission in industrial and professional environments.
✅ Cloud Management:
Thanks to the DoLynk Care Cloud platform , the device enables intelligent remote management with real-time network monitoring, automatic error notifications, device status monitoring and centralized maintenance via app or web interface.
✅ Network Topology Management:
Support for the LLDP protocol enables real-time network topology visualization , facilitating the immediate identification of faults, anomalies, and offline devices for more efficient management of IP infrastructures.
✅ Hi-PoE 60W :
The dedicated port supports Hi-PoE technology up to 60W , ideal for powering PTZ cameras, speed domes and high-power devices via a single Ethernet cable, reducing installation time and costs.
✅ Long Distance PoE :
The Long Distance PoE function enables data and power transmission up to 250 meters with adaptive speed of 10 Mbps, making it perfect for installations in parking lots, factories, corridors and large outdoor areas.
✅ PoE Watchdog :
The intelligent PoE Watchdog system continuously monitors data traffic on PoE ports and automatically reboots unreachable or blocked devices, ensuring business continuity and reducing manual technical intervention.
✅ Performance :
 With switching capacity up to 4.8 Gbps , forwarding rate of 3.57 Mpps , Jumbo Frame support up to 9216 Bytes , 8K MAC table and operation from -30°C to +65°C , the switch ensures high performance and maximum reliability even in critical industrial environments.

Technical data sheet

PRODUCT CHS4206-4ET-60
Basic
Layer Layer 2
Switching Capacity 4.8 Gbps
Packet Forwarding Rate 3.57 Mpps
Description of Function Slots Port 1-4: 4 × RJ-45 10/100 Mbps (PoE)
Port 5-6: 2 × SFP 1000Mbps (uplink)
Operating Temperature –30 °C to +65 °C (–22 °F to +149 °F)
Operating Humidity 10%–90% (RH), non-condensing
Protection IP30;IK06
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External dual power supply (terminal block and DC): 48–57 VDC, 1.354–1.14 A
Power Consumption Idling: 1.3 W
Full load: 65 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 4 kV
Differential mode: 2 kV
Net Weight 0.32 kg (0.71 lb)
Gross Weight 0.87 kg (1.92 lb)
Product Dimensions 154.3 mm × 110.4 mm × 30 mm (6.07" × 4.35" × 1.18") (L × W × H)
Packaging Dimensions 266 mm × 239 mm × 77 mm (10.47" × 9.41" × 3.03") (L × W × H)
Casing Material Iron
Installation DIN rail mount; desktop mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 2-4≤30W, port 1≤60W, total≤60W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE
PoE Power Consumption Management PoE power consumption management; PoE power on/off; turns off PoE if overload is detected; Green PoE
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default.
Extend mode: The transmission distance of ports 1–4 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.
PoE Watchdog: Monitors the flow of data traffic for ports 1–4. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted.
Reset Button 1
Performance
MTBF 2,020,305.28 hours
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z
VLAN Number 32
Feature
VLAN Function Port-based VLAN
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
Port Self-loop Detection
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
1 × Terminal Block
