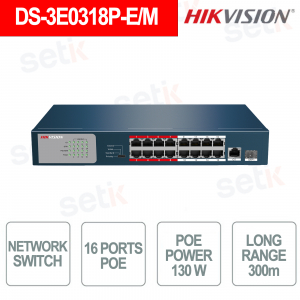

DS-3E0318P-E/M PoE Switch 16 Ports 130W Long Range 300m - Hikvision

DS-3E0318P-E/M PoE Switch 16 Ports 130W Long Range 300m - Hikvision

 
-35%

DS-3E0524-E - is a 16-port Layer 2 PoE switch designed for video surveillance networks, with 16 10/100 Mbps PoE ports , 1 Gigabit RJ45 port and 1 Gigabit combo port for uplink. It supports IEEE 802.3af/at standards, a PoE budget of up to 130 W and up to 30 W per port . The Long Range PoE function allows transmissions up to 300 meters on ports 9-16 , while PoE Watchdog and intelligent power management improve continuity and reliability. It also integrates surge protection up to 6 kV and a switching capacity of 7.2 Gbps . Hikvision

Technical Data Sheet

Artikel-Nr.: DS-3E0318P-E/M

Marke: Hikvision

EAN: 6931847185992

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

DS-3E0318P-E/M | CLOUD MANAGED NETWORK SWITCH 16 POE PORTS - POE POWER 130 W - LONG RAGE 300m


Dahua

The Hikvision DS-3E0318P-E/M is a 16-port Layer 2 PoE switch designed for IP video surveillance systems, with 16 10/100 Mbps PoE ports , 1 Gigabit RJ45 port and 1 Gigabit combo port for stable uplink connections. It supports IEEE 802.3af/at standards, with a total PoE budget of 130 W and power up to 30 W per port . The Long Range PoE function of up to 300 m on ports 9-16 extends the connection distance of the cameras, while PoE Watchdog , intelligent power management and surge protection up to 6 kV increase reliability and operational continuity.

Main specifications:

  • Ports: 16 PoE + 2 Gigabit uplinks
  • PoE: IEEE 802.3af/at
  • PoE Budget: 130W
  • Power output: up to 30W
  • Long Range: up to 300 m
  • Security: PoE Watchdog + 6 kV

Further details

✅ Number of doors:
The Hikvision DS-3E0318P-E/M features 16 10/100 Mbps PoE ports dedicated to powering and transmitting data to connected devices, alongside 1 Gigabit RJ45 port and 1 Gigabit combo port to ensure high-speed uplink connections.
✅ Network Topology Management:
The switch supports dedicated video surveillance features such as port isolation, PoE Watchdog, and VIP port , which promotes priority data transmission in the presence of congestion; intelligent PoE management also intervenes when power exceeds the expected limit.
✅ PoE:
Ports 1-16 support IEEE 802.3af/at standards, with a maximum power of 30W per port and a total PoE budget of 130W ; 4/8-core adaptive power is designed to reduce power losses along the cabling.
✅ Long Range:
Long Range PoE mode allows ports 9-16 to reach distances of up to 300 meters , making it easy to connect IP cameras installed far from the switch; actual performance may vary depending on the camera and cable conditions.
✅ Performance :
 It offers 7.2 Gbps switching capacity , 5.36 Mpps packet forwarding rate, 8K MAC table and 4 Mbit internal cache, as well as surge protection up to 6 kV to increase the reliability of the network infrastructure.

Technical data sheet

PRODUCT DS-3E0318P-E/M
General
Power Supply 100~240 VAC, 50/60 Hz, Max. 2.5 A
Surge Protection 6 kV
Storage Temperature –40˚C to 85˚C (–40˚F to 185˚F)
Shell Metal material
Net Weight 1.80 kg (4.00 lb)
Gross Weight 2.58 kg (5.69 lb)
Dimensions (W × H × D) 335.0 mm × 44.5 mm × 175.8 mm (13.2'' × 1.8'' × 6.9'')
Operating Temperature 0 °C to 45 °C (32 °F to 113 °F)
Operating Humidity 5%–95% (RH), non-condensing
Storage Humidity 5%–95% (RH), non-condensing
Max. Power Consumption 150 W
Power Consumption at Idle 20 W
Installation Mode Desk-Mounted, Wall-Mounted
Network Parameters
Ports 16×10/100Mbps PoE port,1×Gigabit RJ45 port,1×Gigabit combo
MAC Address Table 8 K
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.36 Mpps
Internal Cache 4 Mbits
Dialing Function
Long Range Ports 9 to 16: up to 300 m. Long range performance may vary depending on camera model or cable condition.
PoE Power Supply
PoE Standard IEEE 802.3af; IEEE 802.3at
PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port PoE: Ports 1 to 16
Max. Port Power 30 W
PoE Power Budget 130 W
Approval
EMC FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
