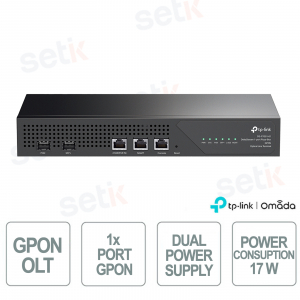

TP-Link DeltaStream DS-P7001-1 OLT GPON 1 Port 10G Split 1:128 60 km for Fiber Networks

TP-Link DeltaStream DS-P7001-1 OLT GPON 1 Port 10G Split 1:128 60 km for Fiber Networks

Neu

DS-P7001-1 is a professional 3-port GPON OLT in a compact 1U size, designed for high-density fiber networks. It supports splitting up to 1:128 per port , for up to 128 ONTs , with 2.5 Gbps downstream and 1.25 Gbps upstream speed and transmission distance up to 20 km . It integrates 1 SFP+ 10 Gbps uplink , dual redundant AC/DC power supplies, QoS functions, advanced security and centralized management via DPMS, SNMP, CLI and Web UI . Omada

Technical Data Sheet

Artikel-Nr.: DS-P7001-1

Marke: OMADA

EAN: 8885020621884

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Ein Schlüsselaspekt von OMADA ist die Fähigkeit, eine zentrale Verwaltung anzubieten. Dies kann über einen dedizierten Hardware-Controller, einen Software-Controller oder den Omada SDN-Cloud-Service erfolgen, der eine zentralisierte Verwaltung von Netzwerken ermöglicht. Die angebotenen Lösungen sind skalierbar und flexibel, so dass sie sich sowohl für kleine Unternehmensnetzwerke als auch für große Implementierungen an mehreren Standorten eignen.

OMADA umfasst Wireless-Lösungen mit leistungsstarken Wi-Fi-Zugangspunkten, die eine zuverlässige Hochgeschwindigkeitsabdeckung gewährleisten. Darüber hinaus bietet das Unternehmen verwaltete Switches und Gateway-Router mit fortschrittlichen Funktionen für Datenverkehrsmanagement, Sicherheit und Quality of Service (QoS).

Sicherheit ist eine weitere Stärke der OMADA-Lösungen, die fortschrittliche Funktionen wie Firewalls, VPNs und Zugriffskontrolle zum Schutz von Unternehmensnetzwerken umfassen. Darüber hinaus ermöglicht die Cloud-Plattform von OMADA die Fernkonfiguration und -überwachung von Netzwerken und bietet damit große Flexibilität beim IT-Management.

Für Unternehmen bietet OMADA eine Lösung, mit der die Betriebskosten durch ein zentrales Management gesenkt und die Netzwerkwartung vereinfacht werden kann. Hochwertige Hardware-Komponenten sorgen für eine stabile und zuverlässige Leistung, während intuitive Schnittstellen und Management-Tools die Netzwerkadministration auch für technisch nicht versiertes Personal erleichtern.

Zu den Kernprodukten von OMADA gehören Access Points für den Innen- und Außenbereich mit fortschrittlichen Technologien wie Wi-Fi 6, verwaltete Switches mit Layer 2- und Layer 3-Funktionen sowie Sicherheits- und Routing-Geräte für die Verwaltung des Netzwerkverkehrs und den Schutz vor Bedrohungen. OMADA-Lösungen werden häufig in Unternehmen zur Verwaltung interner Netzwerke, in Schulen und Universitäten zur Bereitstellung von Wi-Fi-Verbindungen für Studenten und Mitarbeiter und in Hotels zur Bereitstellung einer stabilen und schnellen Internetverbindung für Gäste eingesetzt.

[short_description] =>

Tp-Link Omada

OMADA ist eine Marke von TP-Link für Netzwerkmanagement-Lösungen für Unternehmen. Das OMADA-System umfasst sowohl Hardware als auch Software zur Zentralisierung der Verwaltung von drahtlosen Netzwerken, Switching und Gateways. Dieser Ansatz wurde entwickelt, um die Kontrolle und Verwaltung von Netzwerkinfrastrukturen zu verbessern, insbesondere in Unternehmensumgebungen.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DS-P7001-1 | 1-Port GPON OLT


Made Omada

The TP-Link DeltaStream DS-P7001-1 is a professional 1-port GPON OLT designed for high-density fiber networks, with 1:128 splitting per port and support for up to 128 ONTs . It offers speeds of up to 2.5 Gbps downstream and 1.25 Gbps upstream , with a transmission distance of up to 20 km . It integrates 1 SFP+ 10 Gbps uplink , dual redundant AC/DC power supplies and centralized management via DPMS, SNMP, CLI and Web UI . It also supports 802.1p/DSCP QoS , Voice VLAN, Auto VoIP and advanced network security and monitoring functions.

Main specifications:

  • Ports: 1× GPON
  • Splitting: 1:128
  • ONT: up to 128
  • Speed: 2.5/1.25 Gbps
  • Distance: up to 20 km
  • Uplink: 1× SFP+ 10G
  • Power supply: dual AC/DC
  • Management: DPMS, SNMP, CLI, Web UI

Further details

Number of doors:
The TP-Link DeltaStream DS-P7001-1 integrates 1 PON port with SFP slot , alongside uplink, Console, MGMT and Alarm ports, offering a complete set of features for professional GPON infrastructures.
Splitting:
Each GPON port supports a maximum splitting ratio of 1:128 , allowing the fiber connection to be distributed to numerous optical terminals and creating high-density networks.
ONT:
With 1 GPON port and 1:128 splitting per port , a single DS-P7001-1 can support up to 128 ONTs in total, increasing the PON network deployment capacity.
Speed:
GPON ports provide data rates of up to 2.5 Gbps downstream and 1.25 Gbps upstream , providing high-speed connectivity for data, voice and network applications.
Distance:
It supports transmission distance up to 60km.
Uplink:
It features 1 x 10Gbps SFP+ port and 1 x 10/100/1000Mbps Gigabit RJ45 port dedicated to uplink, providing high-capacity connections to the core network infrastructure.
Power supply:
It integrates a dual redundant power supply configurable with 2 AC, 2 DC or AC+DC , designed to increase operational reliability and service continuity in professional network infrastructures.
Management:
It offers centralized management via DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI , with remote configuration and upgrades; it also supports large-scale management, batch operations on OLTs, multi-site management , intelligent monitoring, and real-time network overview.

Technical data sheet

Model DS-P7001-1
HARDWARE FEATURES
Interface
  • 1× GPON Port
  • 1× 10 Gbps SFP+ Uplink Ports
  • 1× 10/100/1000 Mbps RJ45 Uplink Ports
  • 1× RJ45 Console Port
  • 1× RJ45 MGMT Port
Key Reset Button
Diet Dual Power Supplies: DC and 802.3at PoE
DC Adapter: 12.0V/2.5A,
802.3at PoE: 42.5~57V/0.6A
Energy consumption Max. 17W
Dimensions (L x W x H) 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
SOFTWARE FEATURES
Safety
  • ACL
  • 802.1x Authentication
  • ARP Inspection
  • IP Source Guard
DHCP
  • DHCP Server
  • DHCP Relay
OMCI OMCI Management Supported Standard
UN Authentication UN Auto Authentication
UN Security
  • Rouge ONU Detection and Isolation
  • Uplink and Downlink Data Encryption
Multi-Service Multi-Service Traffic Identify and Rate Limit
QoS
  • IEEE 802.1p/DSCP QoS
  • Voice VLAN
  • Auto VoIP
Routing Static Routing
Multicast
  • IGMP Snooping
  • MLD Snooping
Centralized Management
  • Large-Scale Devices Management
  • OLT Batch Configure, Upgrade, Reboot
  • Multi-Site Management
  • Intelligent Network Monitoring
  • Real-time Network Overview
COMBO PON PORT ATTRIBUTE
Max. Splitting Ratio GPON: 1:128
Transmission distance 60 km
Data rate Downstream: 2.5 Gbps
Upstream: 1.25 Gbps
Wave Length Tx: 1490 nm
Rx: 1310 nm
OTHER
Certification

CE, FCC

Package Contents
  • OLT Device
  • Console Cable
  • Installation Guide
  • Mouting Brackets, Screws and Rubber Feet
Environment
  • Operating Temperature: 0℃–50℃ (32℉–122℉)
  • Storage Temperature: -40°C–70°C (-40°F–158°F)
