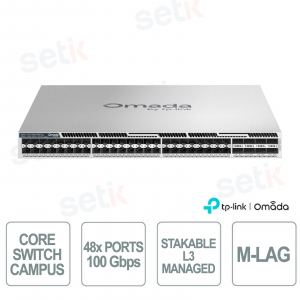

Omada S7500-48Y8C Switch Core L3 48 SFP28 25G and 8 QSFP28 100G

Omada S7500-48Y8C Switch Core L3 48 SFP28 25G and 8 QSFP28 100G

 
Neu

The S7500-48Y8C is a stackable, managed L3 switch for core and aggregation networks , designed for high-performance enterprise, campus, and ISP infrastructures. It integrates 48 1/10/25G SFP28 slots and 8 40/100G QSFP28 slots , with switching capacity up to 4 Tbps and forwarding of 2.8 Bpps . It supports physical stacking of up to 12 units , M-LAG , and advanced Layer 3 routing with OSPF, BGP, IS-IS, VRF, VRRP, ECMP, and PBR . It also offers hot-swappable redundant power , advanced security, and centralized cloud management via Omada Pro SDN . Omada

Technical data sheet not available

Artikel-Nr.: S7500-48Y8C

Marke: OMADA

EAN: 1210002615204

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Ein Schlüsselaspekt von OMADA ist die Fähigkeit, eine zentrale Verwaltung anzubieten. Dies kann über einen dedizierten Hardware-Controller, einen Software-Controller oder den Omada SDN-Cloud-Service erfolgen, der eine zentralisierte Verwaltung von Netzwerken ermöglicht. Die angebotenen Lösungen sind skalierbar und flexibel, so dass sie sich sowohl für kleine Unternehmensnetzwerke als auch für große Implementierungen an mehreren Standorten eignen.

OMADA umfasst Wireless-Lösungen mit leistungsstarken Wi-Fi-Zugangspunkten, die eine zuverlässige Hochgeschwindigkeitsabdeckung gewährleisten. Darüber hinaus bietet das Unternehmen verwaltete Switches und Gateway-Router mit fortschrittlichen Funktionen für Datenverkehrsmanagement, Sicherheit und Quality of Service (QoS).

Sicherheit ist eine weitere Stärke der OMADA-Lösungen, die fortschrittliche Funktionen wie Firewalls, VPNs und Zugriffskontrolle zum Schutz von Unternehmensnetzwerken umfassen. Darüber hinaus ermöglicht die Cloud-Plattform von OMADA die Fernkonfiguration und -überwachung von Netzwerken und bietet damit große Flexibilität beim IT-Management.

Für Unternehmen bietet OMADA eine Lösung, mit der die Betriebskosten durch ein zentrales Management gesenkt und die Netzwerkwartung vereinfacht werden kann. Hochwertige Hardware-Komponenten sorgen für eine stabile und zuverlässige Leistung, während intuitive Schnittstellen und Management-Tools die Netzwerkadministration auch für technisch nicht versiertes Personal erleichtern.

Zu den Kernprodukten von OMADA gehören Access Points für den Innen- und Außenbereich mit fortschrittlichen Technologien wie Wi-Fi 6, verwaltete Switches mit Layer 2- und Layer 3-Funktionen sowie Sicherheits- und Routing-Geräte für die Verwaltung des Netzwerkverkehrs und den Schutz vor Bedrohungen. OMADA-Lösungen werden häufig in Unternehmen zur Verwaltung interner Netzwerke, in Schulen und Universitäten zur Bereitstellung von Wi-Fi-Verbindungen für Studenten und Mitarbeiter und in Hotels zur Bereitstellung einer stabilen und schnellen Internetverbindung für Gäste eingesetzt.

[short_description] =>

Tp-Link Omada

OMADA ist eine Marke von TP-Link für Netzwerkmanagement-Lösungen für Unternehmen. Das OMADA-System umfasst sowohl Hardware als auch Software zur Zentralisierung der Verwaltung von drahtlosen Netzwerken, Switching und Gateways. Dieser Ansatz wurde entwickelt, um die Kontrolle und Verwaltung von Netzwerkinfrastrukturen zu verbessern, insbesondere in Unternehmensumgebungen.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

S7500-48Y8C | 48 PORT 25G STACKABLE SWITCH


Made Omada

The Omada S7500-48Y8C is a stackable, managed L3 switch designed for the aggregation and core layers of enterprise, campus, and ISP networks. It integrates 48 SFP28 1/10/25G slots and 8 QSFP28 40/100G slots , offering up to 4 Tbps of switching capacity . It supports physical stacking of up to 12 units , M-LAG , and advanced routing with OSPF, BGP, IS-IS, VRF, VRRP, ECMP, and PBR . It also features hot-swappable redundant power , advanced security, and centralized Omada Pro SDN cloud management .

Main specifications:

  • Ports: 48× SFP28 + 8× QSFP28
  • Speed: up to 100 Gbps
  • Switching: up to 4 Tbps
  • Stacking: up to 12 units
  • Layer 3: Advanced Routing
  • Redundancy: M-LAG + Hot-Swap PSU
  • Security: Secure Boot, 802.1X, RADSEC
  • Management: Omada Pro SDN Cloud

Further details

✅ Number of doors:
The Omada S7500-48Y8C features 48 x 1/10/25G SFP28 slots and 8 x 40/100G QSFP28 slots , plus dedicated console and management ports, providing high-density connectivity for core and aggregation infrastructures .
✅ Speed:
It supports connections up to 25 Gbps on SFP28 ports and up to 100 Gbps on QSFP28 ports , ensuring ultra-high-speed connections for backbones, servers and professional network devices.
✅ Switching:
It offers up to 4 Tbps switching capacity and a 2.8 Bpps packet forwarding rate , features designed to handle high volumes of traffic in enterprise, campus and ISP networks.
✅ Stacking:
It supports physical stacking of up to 12 switches in standalone mode and up to 4 in controller mode , using 100G QSFP28 slots and achieving a stacking bandwidth of up to 1.6 Tbps .
✅ Layer 3:
It integrates advanced L3 routing capabilities with protocols and technologies such as OSPFv2/v3, BGPv4, IS-IS, VRF, VRRPv2/v3, ECMP, PBR, PIM, and BFD , enabling the construction of complex and scalable networks.
✅ Redundancy:
It supports M-LAG, VRRP, ERPS and BFD and features two replaceable and hot-swappable power modules to increase availability and business continuity; it comes with one power supply, while the second redundant one can be purchased separately.
✅ Security:
It integrates advanced features such as Secure Boot, 802.1X, RADSEC, IP-MAC-Port Binding, Dynamic ARP Inspection, IP Source Guard, DoS Defend, AAA and ACL , providing comprehensive tools for authentication, access control and network protection.

Technical data sheet

Model S7500-48Y8C
HARDWARE FEATURES
Interface
  • 48× 1/10/25G SFP28 Slots
  • 8× 40/100G QSFP28 Slots
  • 2× USB 3.0 Ports
  • 1× RJ45 Console Port
  • 1× USB Type-C Console Port
  • 1× RJ45 Management Port
Number of fans Five Field-replaceable and Hot-swappable Fans
Diet Two Field-replaceable and Hot-swappable Power Supply Modules*(100–240 VAC, 50/60 Hz)
*Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
Dimensions (L x W x H) 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting type Rackmountable
Max. Power Consumption
  • 225.3 W max @ 220V/50Hz 25 °C
  • 231.2 W max @ 110V/60Hz 25 °C
Max. Heat Dissipation
  • 768.27 BTU/hr @ 220V/50Hz 25 °C
  • 788.6 BTU/hr @ 110V/60Hz 25°C
PERFORMANCES
Buffer (packets) 24 MB
Jumbo frame 9 KB
Stacking
  • Stacking Number: 12 in standalone mode, 4 in controller mode
  • Stacking Port: 100G QSFP28 Slot (all uplink ports can be used as stacking ports)**
  • Stacking Bandwidth: 6.4 Tbps (All 32 QSFP28 slots set as stacking ports)
Switching capacity 4 Tbps
Packet Forwarding Rate 2.8 Bpps
ARP Table Max 256K
SOFTWARE FEATURES
M-LAG
  • M-LAG domain configuration
  • DAD (Dual-Active Detection)
  • Peer-link-port LAG
PTP
  • IEEE 1588v2 (PTPv2), IEEE 802.1AS
  • Clock-type: oc, bc, e2etc, p2ptc
QoS (Quality of Service)
  • Class of Service
  • Priority Queues: 8 Queues
  • Port Priority
  • IEEE 802.1p Priority
  • DSCP/ToS Priority
  • Priority Schedule Mode: SP/WRR for Queue
  • Queue Weight Config: For WRR/SP+WRR Mode
  • Bandwidth Control
  • Rate Limit
  • Storm Control
  • Voice VLAN
  • WRED
L3 Features
  • L3 Interface: 4,094 (IPv4,IPv6)
  • Static Routes: 2,048 IPv4, 1,024 IPv6
  • Host Route Table: Max 22,528 entries
  • IPv4 Network Router Entries: Max 516,096 (shared with IPv6 Network Router entries)
  • IPv6 Network Router Entries: Max 258,048 (shared with IPv4 Network Router entries)
  • ECMP
  • Dynamic ARP: 45056
  • ND: 45,056
  • DHCPv4 Server: Max 512 IP pools
  • DHCPv4/v6 Relay
  • VRRPv2/v3
  • OSPFv2/v3
  • RIPv1/v2
  • RIPng
  • VRF
  • IS-ISv4/v6
  • BGPv4
  • PIM-SM/PIM-DM/PIM-SSM
  • IGMPv1/v2/v3, IGMP Groups: 2048
  • BFD: 16 template numbers, 32 session numbers
  • PBR
  • uRPF
L2 and L2+ functionality
  • LACP / Static LAG
  • STP / RSTP / MSTP / STP Security
  • ERPS
  • Port Isolation
  • Loopback Detection
  • Port Security
  • Sticky MAC
  • 802.3x Flow Control
  • Port Mirror
  • RSPAN
  • LLDP
  • LLDP-MED
  • Multicast
  • IGMP Snooping
  • MLD Snooping
  • Multicast VLAN Registration (MVR)
  • Max Multicast Table: 1K (IPv4, IPv6)
  • Fast Leave
  • IGMP Snooping Querier
  • MLD Snooping Querier
  • Multicast Filtering
  • Unknown Multicast Discard
Advanced Features
  • Automatic Device Discovery‡
  • Batch Configuration‡
  • Batch Firmware Upgrading‡
  • Intelligent Network Monitoring‡
  • Abnormal Event Warnings‡
  • Unified Configuration‡
  • Reboot Schedule‡
ISP Features:
  • 802.3ah Ethernet Link OAM
  • L2PT (Layer 2 Protocol Tunneling)
  • Device Link Detect Protocol (DLDP)
  • DDM
  • sFlow
VLAN
  • 802.1Q VLAN(802.1q): 4K VLANs
  • MAC VLAN: 200 entries
  • Protocol VLAN (IEEE 802.1v)
  • 16 Protocol VLAN Templates
  • 12 Protocol VLAN Groups
  • QinQ(VLAN VPN): 256 entries
  • Private VLAN
  • GVRP
Safety
  • IP-MAC-Port Binding
-1,024 Entries
- ARP Scanning
- Manual Binding
- DHCP Snooping
  • IPv6-MAC-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- Manual Binding
- ND Snooping
  • ARP Inspection (Dynamic ARP Inspection)
  • ND Detection
  • IP Source Guard
  • IPv6 Source Guard
  • RA Guard: 30 entries
  • DoS Defend
  • DHCP Filter
  • 802.1X
- Radius Authentication
- Radius Accounting
- Radius Server Load Balancing
- RADSEC
- Guest VLAN
- VLAN Assignment
- MAB
  • AAA (including TACACS+)
  • ACL
  • Secure boot
Multicast
  • IGMP Snooping
  • MLD Snooping
Centralized Management
  • Large-Scale Devices Management
  • OLT Batch Configure, Upgrade, Reboot
  • Multi-Site Management
  • Intelligent Network Monitoring
  • Real-time Network Overview
MANAGEMENT
Omada App Yes, through Omada Pro Controller
Centralized Management
  • Omada Pro Cloud-Based Controller
  • Omada Pro Hardware Controller
  • Omada Pro Software Controller
Cloud Access Yes, through Omada Pro Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features
  • Web-based GUI
  • Command Line Interface (CLI) through console port, telnet
  • SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP Auto Install
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Password Recovery
  • SNTP
  • System Log
OTHER
Package Contents
  • S7500-48Y8C Switch
  • Power Cord
  • RJ45 Console Cable
  • Locking Strap
  • Rackmount Kit
  • Rubber Feet
  • Quick Installation Guide
System requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
  • Operating Temperature:
-5 ℃ to 45 ℃ (23 ℉ to 113 ℉) @ 300 meters
-5 ℃ to 40 ℃ (23 ℉ to 104 ℉) @ 2,000 meters
-5 ℃ to 35 ℃ (23 ℉ to 95 ℉) @ 3,000 meters
  • Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
