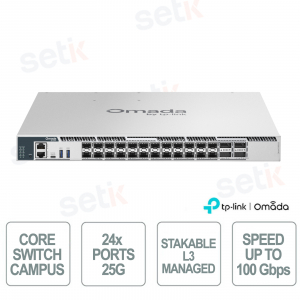

Omada S7500-24Y4C Switch L3 24 SFP28 25G and 4 QSFP28 100G for Enterprise Networks

Omada S7500-24Y4C Switch L3 24 SFP28 25G and 4 QSFP28 100G for Enterprise Networks

 
Neu

The S7500-24Y4C is a stackable, managed L3 switch designed for the aggregation and core layers of enterprise, campus, and ISP networks. It integrates 24 SFP28 1/10/25G slots and 4 QSFP28 40/100G slots , with switching capacity up to 2 Tbps and forwarding up to 810 Mpps . It supports physical stacking of up to 12 units and advanced Layer 3 routing with OSPF, BGP, IS-IS, VRRP, ECMP, and PBR . It also features hot-swappable redundant power , advanced security features, and centralized cloud management via Omada Pro SDN . Omada

Technical data sheet not available

Artikel-Nr.: S7500-24Y4C

Marke: OMADA

EAN: 1210002615204

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Ein Schlüsselaspekt von OMADA ist die Fähigkeit, eine zentrale Verwaltung anzubieten. Dies kann über einen dedizierten Hardware-Controller, einen Software-Controller oder den Omada SDN-Cloud-Service erfolgen, der eine zentralisierte Verwaltung von Netzwerken ermöglicht. Die angebotenen Lösungen sind skalierbar und flexibel, so dass sie sich sowohl für kleine Unternehmensnetzwerke als auch für große Implementierungen an mehreren Standorten eignen.

OMADA umfasst Wireless-Lösungen mit leistungsstarken Wi-Fi-Zugangspunkten, die eine zuverlässige Hochgeschwindigkeitsabdeckung gewährleisten. Darüber hinaus bietet das Unternehmen verwaltete Switches und Gateway-Router mit fortschrittlichen Funktionen für Datenverkehrsmanagement, Sicherheit und Quality of Service (QoS).

Sicherheit ist eine weitere Stärke der OMADA-Lösungen, die fortschrittliche Funktionen wie Firewalls, VPNs und Zugriffskontrolle zum Schutz von Unternehmensnetzwerken umfassen. Darüber hinaus ermöglicht die Cloud-Plattform von OMADA die Fernkonfiguration und -überwachung von Netzwerken und bietet damit große Flexibilität beim IT-Management.

Für Unternehmen bietet OMADA eine Lösung, mit der die Betriebskosten durch ein zentrales Management gesenkt und die Netzwerkwartung vereinfacht werden kann. Hochwertige Hardware-Komponenten sorgen für eine stabile und zuverlässige Leistung, während intuitive Schnittstellen und Management-Tools die Netzwerkadministration auch für technisch nicht versiertes Personal erleichtern.

Zu den Kernprodukten von OMADA gehören Access Points für den Innen- und Außenbereich mit fortschrittlichen Technologien wie Wi-Fi 6, verwaltete Switches mit Layer 2- und Layer 3-Funktionen sowie Sicherheits- und Routing-Geräte für die Verwaltung des Netzwerkverkehrs und den Schutz vor Bedrohungen. OMADA-Lösungen werden häufig in Unternehmen zur Verwaltung interner Netzwerke, in Schulen und Universitäten zur Bereitstellung von Wi-Fi-Verbindungen für Studenten und Mitarbeiter und in Hotels zur Bereitstellung einer stabilen und schnellen Internetverbindung für Gäste eingesetzt.

[short_description] =>

Tp-Link Omada

OMADA ist eine Marke von TP-Link für Netzwerkmanagement-Lösungen für Unternehmen. Das OMADA-System umfasst sowohl Hardware als auch Software zur Zentralisierung der Verwaltung von drahtlosen Netzwerken, Switching und Gateways. Dieser Ansatz wurde entwickelt, um die Kontrolle und Verwaltung von Netzwerkinfrastrukturen zu verbessern, insbesondere in Unternehmensumgebungen.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

S7500-24Y4C | 24 PORT 25G STACKABLE SWITCH


Made Omada

The Omada S7500-24Y4C is a stackable, managed L3 switch designed for the aggregation and core layers of enterprise, campus, and ISP networks. It integrates 24 1/10/25G SFP28 slots and 4 40/100G QSFP28 slots , with switching capacity up to 2 Tbps and forwarding of 810 Mpps . It supports physical stacking of up to 12 units , advanced OSPF, BGP, IS-IS, VRRP, ECMP, and PBR routing, and redundant power supply. Omada Pro SDN centralized management completes a high-performance platform with advanced security and reliability features.

Main specifications:

  • Ports: 24× SFP28 + 4× QSFP28
  • Speed: up to 100 Gbps
  • Switching: 2 Tbps
  • Forwarding: 810 Mpps
  • Stacking: up to 12 units
  • Layer 3: Advanced Routing
  • Redundancy: Dual Hot-Swap PSU*
  • Security: Secure Boot, RADSEC, 802.1X
  • Management: Omada Pro SDN

Further details

✅ Number of doors:
The Omada S7500-24Y4C integrates 24x 1/10/25G SFP28 slots and 4x 40/100G QSFP28 slots , as well as dedicated USB, console and management ports, providing high-density connectivity for aggregation and core networks .
✅ Speed:
It supports links up to 25 Gbps via SFP28 and up to 100 Gbps via QSFP28 , enabling high-speed connections for enterprise, campus and ISP backbones and infrastructure.
✅ Switching:
It offers a switching capacity of up to 2,000 Gbps (2 Tbps) per unit and a Packet Forwarding Rate of 810 Mpps , ensuring high performance in handling large volumes of traffic.
✅ Stacking:
It supports physical stacking of up to 12 units in standalone mode , using 100G QSFP28 slots , with a stack bandwidth of up to 800 Gbps via four stacking ports.
✅ Layer 3:
It integrates advanced L3 routing capabilities with OSPFv2/v3, BGP, IS-IS, VRRP v2/v3, ECMP, PBR, PIM, and BFD , designed to build dynamic, scalable, and highly available networks.
✅ Redundancy:
It features two replaceable and hot-swappable power modules and supports technologies such as VRRP, ERPS and BFD to increase network availability and continuity; it comes with one power supply, while the second redundant one can be purchased separately.
✅ Security:
It offers advanced protections including Secure Boot, RADSEC, 802.1X, IP-MAC-Port Binding, Dynamic ARP Inspection, DoS Defend, Port Security, AAA and SSHv2 , improving authentication, access control and infrastructure protection.

Technical data sheet

Model S7500-24Y4C
HARDWARE FEATURES
Interface
  • 24× 1/10/25G SFP28 Slots
  • 4× 40/100G QSFP28 Slots
  • 2× USB 3.0 Ports
  • 1× RJ45 Console Port
  • 1× USB Type-C Console Port
  • 1× RJ45 Management Port
Number of fans Five Field-replaceable and Hot-swappable Fans
Diet Two Field-replaceable and Hot-swappable Power Supply Modules*(100–240 VAC, 50/60 Hz)
*Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
Dimensions (L x W x H) 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting type Rackmountable
Max. Power Consumption 137.63W (220V/50Hz)
Max. Heat Dissipation 469.6BTU/hr (220V/50Hz)
PERFORMANCES
Buffer (packets) 8 MB
Jumbo frame 9 KB
Stacking
  • Stacking Number: 12 (standalone mode)
  • Stacking Port: 100G QSFP28 Slot (all uplink ports can be used as stacking ports)**
  • Stack Bandwidth: Up to 800 Gbps (4 stacking ports)
Switching capacity 2000 Gbps per Unit
Packet Forwarding Rate 810 Mpps
ARP Table 128 K
SOFTWARE FEATURES
QoS (Quality of Service)
  • Class of Service
  • Priority Queues: 8 Queues
  • Port Priority
  • IEEE 802.1p Priority
  • DSCP/ToS Priority
  • Priority Schedule Mode: SP/WRR for Queue
  • Queue Weight Config: For WRR/SP+WRR Mode
  • Bandwidth Control
  • Rate Limit
  • Storm Control
  • Voice VLAN
  • WRED
L3 Features
  • L3 Interface: 4,094 (IPv4,IPv6)
  • Static Routes: 2,048 IPv4, 1,024 IPv6
  • Host Route Table: Max 22,528 entries
  • IPv4 Network Router Entries: Max 516,096 (shared with IPv6 Network Router entries)
  • IPv6 Network Router Entries: Max 258,048 (shared with IPv4 Network Router entries)
  • ECMP
  • Dynamic ARP: 45056
  • ND: 45,056
  • DHCPv4 Server: Max 512 IP pools
  • DHCPv4/v6 Relay
  • VRRPv2/v3
  • OSPFv2/v3
  • RIPv1/v2
  • RIPng
  • VRF
  • IS-ISv4/v6
  • BGPv4
  • PIM-SM/PIM-DM/PIM-SSM
  • IGMPv1/v2/v3, IGMP Groups: 2048
  • BFD: 16 template numbers, 32 session numbers
  • PBR
  • uRPF
L2 and L2+ functionality
  • LACP / Static LAG
  • STP / RSTP / MSTP / STP Security
  • ERPS
  • Port Isolation
  • Loopback Detection
  • Port Security
  • Sticky MAC
  • 802.3x Flow Control
  • Port Mirror
  • RSPAN
  • LLDP
  • LLDP-MED
  • Multicast
  • IGMP Snooping
  • MLD Snooping
  • Multicast VLAN Registration (MVR)
  • Max Multicast Table: 1K (IPv4, IPv6)
  • Fast Leave
  • IGMP Snooping Querier
  • MLD Snooping Querier
  • Multicast Filtering
  • Unknown Multicast Discard
Advanced Features
  • Automatic Device Discovery‡
  • Batch Configuration‡
  • Batch Firmware Upgrading‡
  • Intelligent Network Monitoring‡
  • Abnormal Event Warnings‡
  • Unified Configuration‡
  • Reboot Schedule‡
ISP Features:
  • 802.3ah Ethernet Link OAM
  • L2PT (Layer 2 Protocol Tunneling)
  • Device Link Detect Protocol (DLDP)
  • DDM
  • sFlow
VLAN
  • 802.1Q VLAN(802.1q): 4K VLANs
  • MAC VLAN: 200 entries
  • Protocol VLAN (IEEE 802.1v)
  • 16 Protocol VLAN Templates
  • 12 Protocol VLAN Groups
  • QinQ(VLAN VPN): 256 entries
  • Private VLAN
  • GVRP
Safety
  • IP-MAC-Port Binding
-1,024 Entries
- ARP Scanning
- Manual Binding
- DHCP Snooping
  • IPv6-MAC-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- Manual Binding
- ND Snooping
  • ARP Inspection (Dynamic ARP Inspection)
  • ND Detection
  • IP Source Guard
  • IPv6 Source Guard
  • RA Guard: 30 entries
  • DoS Defend
  • DHCP Filter
  • 802.1X
- Radius Authentication
- Radius Accounting
- Radius Server Load Balancing
- RADSEC
- Guest VLAN
- VLAN Assignment
- MAB
  • AAA (including TACACS+)
  • ACL
  • Secure boot
MANAGEMENT
Omada App Yes, through Omada Pro Controller
Centralized Management
  • Omada Pro Cloud-Based Controller
  • Omada Pro Hardware Controller
  • Omada Pro Software Controller
Cloud Access Yes, through Omada Pro Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features
  • Web-based GUI
  • Command Line Interface (CLI) through console port, telnet
  • SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP Auto Install
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Password Recovery
  • SNTP
  • System Log
OTHER
Package Contents
  • S7500-24Y4C Switch
  • Power Cord
  • RJ45 Console Cable
  • Locking Strap
  • Rackmount Kit
  • Rubber Feet
  • Quick Installation Guide
System requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
  • Operating Temperature:
-5 ℃ to 45 ℃ (23 ℉ to 113 ℉) @ 300 meters
-5 ℃ to 40 ℃ (23 ℉ to 104 ℉) @ 2,000 meters
-5 ℃ to 35 ℃ (23 ℉ to 95 ℉) @ 3,000 meters
  • Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
