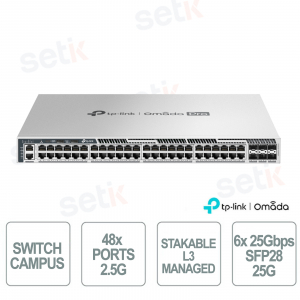

Omada S6500-48M6Y Switch L3 48 Ports 2.5G and 6 SFP28 25G

Omada S6500-48M6Y Switch L3 48 Ports 2.5G and 6 SFP28 25G

 
Neu

The S6500-48M6Y is a high-performance stackable L3 managed switch designed for enterprise, campus, and ISP networks, featuring 48 2.5G RJ45 ports and 6 2.5G SFP28 slots . It offers 540 Gbps switching capacity and up to 401.7 Mpps forwarding, with physical stacking of up to 12 units and stacking bandwidth of up to 300 Gbps. It integrates advanced Layer 3 routing with OSPF, BGP, IS-IS, VRRP, ECMP, and PBR , security with MACsec, Secure Boot, RADSEC, and 802.1X , and redundant power . Centralized management via Omada Pro SDN also enables cloud control and Zero-Touch Provisioning. Omada

Technical data sheet not available

Artikel-Nr.: S6500-48M6Y

Marke: OMADA

EAN: 4895252505450

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Ein Schlüsselaspekt von OMADA ist die Fähigkeit, eine zentrale Verwaltung anzubieten. Dies kann über einen dedizierten Hardware-Controller, einen Software-Controller oder den Omada SDN-Cloud-Service erfolgen, der eine zentralisierte Verwaltung von Netzwerken ermöglicht. Die angebotenen Lösungen sind skalierbar und flexibel, so dass sie sich sowohl für kleine Unternehmensnetzwerke als auch für große Implementierungen an mehreren Standorten eignen.

OMADA umfasst Wireless-Lösungen mit leistungsstarken Wi-Fi-Zugangspunkten, die eine zuverlässige Hochgeschwindigkeitsabdeckung gewährleisten. Darüber hinaus bietet das Unternehmen verwaltete Switches und Gateway-Router mit fortschrittlichen Funktionen für Datenverkehrsmanagement, Sicherheit und Quality of Service (QoS).

Sicherheit ist eine weitere Stärke der OMADA-Lösungen, die fortschrittliche Funktionen wie Firewalls, VPNs und Zugriffskontrolle zum Schutz von Unternehmensnetzwerken umfassen. Darüber hinaus ermöglicht die Cloud-Plattform von OMADA die Fernkonfiguration und -überwachung von Netzwerken und bietet damit große Flexibilität beim IT-Management.

Für Unternehmen bietet OMADA eine Lösung, mit der die Betriebskosten durch ein zentrales Management gesenkt und die Netzwerkwartung vereinfacht werden kann. Hochwertige Hardware-Komponenten sorgen für eine stabile und zuverlässige Leistung, während intuitive Schnittstellen und Management-Tools die Netzwerkadministration auch für technisch nicht versiertes Personal erleichtern.

Zu den Kernprodukten von OMADA gehören Access Points für den Innen- und Außenbereich mit fortschrittlichen Technologien wie Wi-Fi 6, verwaltete Switches mit Layer 2- und Layer 3-Funktionen sowie Sicherheits- und Routing-Geräte für die Verwaltung des Netzwerkverkehrs und den Schutz vor Bedrohungen. OMADA-Lösungen werden häufig in Unternehmen zur Verwaltung interner Netzwerke, in Schulen und Universitäten zur Bereitstellung von Wi-Fi-Verbindungen für Studenten und Mitarbeiter und in Hotels zur Bereitstellung einer stabilen und schnellen Internetverbindung für Gäste eingesetzt.

[short_description] =>

Tp-Link Omada

OMADA ist eine Marke von TP-Link für Netzwerkmanagement-Lösungen für Unternehmen. Das OMADA-System umfasst sowohl Hardware als auch Software zur Zentralisierung der Verwaltung von drahtlosen Netzwerken, Switching und Gateways. Dieser Ansatz wurde entwickelt, um die Kontrolle und Verwaltung von Netzwerkinfrastrukturen zu verbessern, insbesondere in Unternehmensumgebungen.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


S6500-48M6Y | 48 PORT 2.5G STACKABLE SWITCH


Made Omada

The Omada S6500-48M6Y is a stackable L3 managed switch designed for enterprise, campus, and ISP networks, featuring 48 2.5G RJ45 ports and 6 2.5G SFP28 slots . It offers 540 Gbps of switching capacity and 401.7 Mpps of forwarding , with physical stacking of up to 12 units and stacking bandwidth of up to 300 Gbps . It integrates advanced Layer 3 routing with OSPF, BGP, IS-IS, VRRP, ECMP, and PBR , enterprise security with MACsec, Secure Boot, RADSEC, and 802.1X , and redundant power. Centralized management via Omada Pro SDN enables cloud control and Zero-Touch Provisioning.

Main specifications:

  • Ports: 48× 2.5G RJ45 + 6× SFP28 25G
  • Switching: 540 Gbps
  • Forwarding: 401.7 Mpps
  • Stacking: up to 12 units
  • Layer 3: Advanced Routing
  • Redundancy: Dual Power Supply + VRRP
  • Security: MACsec, Secure Boot, RADSEC
  • Management: Omada Pro SDN

Further details

✅ Number of doors:
The Omada S6500-48M6Y integrates 48 100M/1G/2.5Gbps RJ45 ports and 6 1/10/25Gbps SFP28 slots , as well as dedicated console and management ports, providing high-density Multi-Gigabit connectivity for enterprise and campus networks.
✅ Speed:
It supports connections up to 2.5 Gbps on the 48 RJ45 ports and up to 25 Gbps on the 6 SFP28 slots , ensuring high-speed uplinks and greater transmission capacity for professional infrastructures.
✅ Switching:
It offers 540 Gbps of switching capacity per unit , designed to support high traffic volumes and bandwidth-intensive applications in campus, enterprise and ISP networks.
✅ Forwarding:
R adds a Packet Forwarding Rate of 401.7 Mpps , ensuring high packet processing and forwarding capacity in high-performance network infrastructures.
✅ Stacking:
It supports physical stacking of up to 12 units in standalone mode via 25G SFP28 slots , with a stack bandwidth of up to 300 Gbps using 6 ports, increasing network scalability and redundancy.
✅ Layer 3:
It integrates advanced L3 routing capabilities with protocols such as OSPFv2/v3, BGPv4, IS-IS, VRRP, ECMP, PIM, BFD, and PBR , enabling dynamic, scalable, and highly available network architectures.
✅ Redundancy:
It features two hot-swappable power modules , with one power supply included and the second optional, and supports VRRP, ERPS and BFD to improve business continuity and rapid recovery in the event of a failure.
✅ Security:
It offers enterprise protections such as MACsec AES-128/AES-256, Secure Boot, RADSEC, 802.1X, DHCP Snooping, ARP Inspection, IP Source Guard, Port Security and DoS Defend , strengthening authentication, access control and network traffic protection.

Technical data sheet

Model S6500-48M6Y
HARDWARE FEATURES
Interface
  • 48× 100Mbps/1Gbps/2.5Gbps RJ45 Ports
  • 6× 1/10/25G SFP28 Slots***
  • 2× USB 3.0 Ports
  • 1× RJ45 Console Port
  • 1× USB Type-C Console Port
  • 1× RJ45 Management Port
Number of fans Five Field-replaceable and Hot-swappable Fans
Diet Two Field-replaceable and Hot-swappable Power Supply Modules*(100–240 VAC, 50/60 Hz)
*Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
Dimensions (L x W x H) 17.3 × 18.1 × 1.7 in (440 × 460 × 44 mm)
Mounting type Rackmountable
Max. Power Consumption 114.2 W (220 V/50 Hz)
Max. Heat Dissipation 389.4 BTU/hr (220V/50Hz)
PERFORMANCES
Buffer (packets) 3 MB
Jumbo frame 9 KB
Stacking
  • Stacking Number: 12 (standalone mode)
  • Stacking Port: 25G SFP28 Slot (all uplink ports can be used as stacking ports)***
  • Stack Bandwidth: Up to 300 Gbps (6 stacking ports)
Switching capacity 540 Gbps per Unit
Packet Forwarding Rate 410.7 Mpps
ARP Table 32 K
SOFTWARE FEATURES
QoS (Quality of Service)
  • Class of Service
  • Priority Queues: 8 Queues
  • Port Priority
  • IEEE 802.1p Priority
  • DSCP Priority
  • Queue Min-Bandwidth
  • Schedule Mode (SP, WRR, SP+WRR)
  • Bandwidth Control
  • Rate Limit
  • Storm Control
  • Voice VLAN
  • User-Defined OUI
  • Smoother Performance
  • Action for Flows
  • QoS remark (802.1P Remark, DSCP Remark)
  • WRED profile: 64
L3 Features
  • L3 Interface: 256 (IPv4,IPv6)
  • Static Routes: 2,048 IPv4, 1,024 IPv6
  • Host Route Table: Max 22,528 entries
  • IPv4 Network Router Entries: Max 40,960 (shared with IPv6 Network Router entries)
  • IPv6 Network Router Entries: Max 40,960 (shared with IPv4 Network Router entries)
  • ECMP: 768 entries, max 32 ECMP Nexthops per Destination
  • Static ARP: 1,024 static entries
  • Dynamic ARP: 45,056 dynamic entries
  • ND: 45,056
  • DHCP Server: Max 64 IP pools, Max 8,000 IP entries
  • DHCPv4/v6 Relay
  • VRRP: Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance
  • OSPFv2
  • OSPF Instance: 16
  • Network Entries: 256 entries
  • Area Entries for Stub or NSSA: 16 per instance
  • Area Range Entries: 16 per instance
  • Virtual-link Entries: 16 per instance
  • OSPFv3
  • Area Entries for Stub or NSSA: 16 per instance
  • Area Range Entries: 16 per instance
  • RIPv1/v2
  • Network Entries: 256
  • Redistribute Entries: 20
  • RIPng
  • IS-IS
  • IS-IS Interfaces: 128
  • IS-IS Area Numbers: 3
  • Max Redistribute Configs: 10
  • IS-IS IPV6
  • IS-IS BFD
  • BGP: Max 20 redistribute configs
  • PIM-SM/PIM-DM/PIM-SSM
  • IP Multicast Route Entries: 1K
  • PIM Neighbors: 256
  • Max PIM Interfaces: 128
  • IGMP: Version v1/v2/v3, Max 2,048 multicast groups
  • BFD: 16 template numbers, 8 session numbers
  • PBR
  • uRPF
L2 and L2+ functionality
  • Link Aggregation
  • Spanning Tree Protocol
  • Port-based and VLAN-based Loopback Detection
  • 802.3x Flow Control
  • ERPS
  • Mirroring
  • RSPAN
  • MAC Address Table
  • Multicast
  • IGMP Snooping
  • MLD Snooping
  • Multicast VLAN Registration (MVR)
  • Max Multicast Table: 4K (IPv4, IPv6)
  • Fast Leave
  • Static Multicast Groups
  • Multicast Filtering
  • IGMP Snooping Authentication
Advanced Features
  • Automatic Device Discovery‡
  • Batch Configuration‡
  • Batch Firmware Upgrading‡
  • Intelligent Network Monitoring‡
  • Abnormal Event Warnings‡
  • Unified Configuration‡
  • Reboot Schedule‡
ISP Features:
  • 802.3ah Ethernet Link OAM
  • L2PT (Layer 2 Protocol Tunneling)
  • Device Link Detect Protocol (DLDP)
  • DDM
  • sFlow
VLAN
  • 802.1Q VLAN(802.1q): 4K VLANs
  • MAC VLAN: 200 entries
  • Protocol VLAN (IEEE 802.1v)
  • 16 Protocol VLAN Templates
  • 12 Protocol VLAN Groups
  • QinQ(VLAN VPN): 256 entries
  • Private VLAN
  • GVRP
Safety
  • Port Isolation
  • CPU-Defend
  • ARP Inspection (Dynamic ARP Inspection)
  • DoS Defend
  • IP-MAC-Port Binding
-1,024 Entries
- ARP Scanning
- Manual Binding
- DHCP Snooping
  • IPv6-MAC-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- Manual Binding
- ND Snooping
  • ARP Inspection (Dynamic ARP Inspection)
  • ND Detection
  • IP Source Guard
  • IPv6 Source Guard
  • RA Guard: 30 entries
  • DoS Defend
  • DHCP Filter
  • 802.1X
- Radius Authentication
- Radius Accounting
- Radius Server Load Balancing
- RADSEC
- Guest VLAN
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
  • AAA (including TACACS+)
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) management with SSHv2
  • IP/Port/MAC-based access control
  • Secure boot
  • RADSEC
MANAGEMENT
Omada App Yes, through Omada Pro Controller
Centralized Management
  • Omada Pro Cloud-Based Controller
  • Omada Pro Hardware Controller
  • Omada Pro Software Controller
Cloud Access Yes, through Omada Pro Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features
  • Web-based GUI
  • Command Line Interface (CLI) through console port, telnet
  • SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP Auto Install
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Password Recovery
  • SNTP
  • System Log
OTHER
Package Contents
  • S6500-48M6Y Switch
  • Power Cord
  • RJ45 Console Cable
  • Locking Strap
  • Rackmount Kit
  • Rubber Feet
  • Quick Installation Guide
System requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
  • Operating Temperature:
-5 ℃ to 40 ℃ (23 ℉ to 104 ℉) @ 2,000 meters
-5 ℃ to 35 ℃ (23 ℉ to 95 ℉) @ 3,000 meters
  • Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
