AWA6220-C - Dahua - Punto di accesso wireless - Standard wireless Wi-Fi 802.11ax - Supporta PoE - Fino a 1.775Gbps - 1 porta poE 802.3af - Porta ethernet RJ45 10/100Mbps - RF Optimizing Engine - Supporta OFDMA - Gain antenna fino a 5dBi - 4 antenne integrate - Prodotto di alta qualità.
DAHUA: UNTER DEM EINSTANDSPREIS×
 UNGLAUBLICHE RABATTE
auf eine Auswahl von DAHUA-Produkten
 Entdecken Sie die Promo jetzt >>
TOTALER AUSVERKAUF ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>
PUNTO DI ACCESSO WIRELESS - 802.11ax - 1.775Gbps. - 4 ANTENNE - FREQUENZA DOPPIA 2.4GHZ e 5GHZ

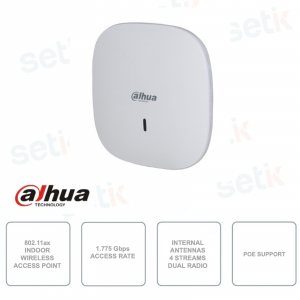

WA6220-C - Dahua - Wireless access point
Dettagli prodotto
|
 Supporta WiFi 802.11ax
  |
|
![]()  |
 1 porte LAN - RJ-45 (10/100Mbps) 1 porta PoE 802.3af
  |
|
 Questo prodotto è coperto da Garanzia di 24 mesi.  |
Scheda tecnica
| AWA6220-C | |
|
 Technical Speci?cation  |
|
|
 Hardware  |
|
|
 Weight (excluding mounting accessories)  |
 0.4 kg (0.88 lb)  |
|
 Dimensions (excluding mounting and accessories)  |
 185 mm × 185 mm × 43 mm (7.28" × 7.28" × 1.69") (L × W × H)  |
|
 Ethernet Ports  |
 1× 100/1000M Base-T RJ-45  |
|
 PoE  |
 Port1: 802.3af  |
|
 Local Power Supply  |
 54 VDC  |
|
 Antenna  |
 Built-in omni-directional antenna 3 dBi antenna gain @2.4 GHz 5 dBi antenna gain @5 GHz  |
|
 Working Frequencies  |
 802.11ax/ac/n/a: 5.725 GHz–5.850 GHz; 5.47 GHz–5.725 GHz; 5.15 GHz–5.35 GHz 802.11ax/b/g/n: 2.4 GHz–2.483 GHz  |
|
 Modulation Mode  |
 11b: DSS: CCK@5.5/11 Mbps, DQPSK@2 Mbps, DBPSK@1 Mbps 11a/g: OFDM: 64QAM@48/54 Mbps, 16QAM@24 Mbps, QPSK@12/18 Mbps, BPSK@6/9 Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM  |
|
 Maximum Transmit Power  |
 20 dBm  |
|
 Reset/Restoration To Factory Default  |
 Yes  |
|
 State LED  |
 Alternating flashing mode, orange/green/blue for different working states, breathing mode  |
|
 Enviorment  |
 Indoor  |
|
 Working Temperature  |
 –10 °C to 55 °C (14 °F to 131 °F)  |
|
 Storage Temperature  |
 –40 °C to 70 °C(–40 °F to +158 °F)  |
|
 Working Humidity  |
 5%–95% (non-condensing)  |
|
 Storage Humidity  |
 5%–95% (non-condensing)  |
|
 Protection Class  |
 IP41  |
|
 EMC  |
 CE EMC, CE RED  |
|
 MTBF  |
 >250000H  |
|
 Software speci?cations  |
|
|
 Compliance  |
 Compliant with 802.11a/b/g/n/ac/ax  |
|
 Working Frequencies And MIMO  |
 2.4G 2*2 MIMO 0.575 Gbps 5G 2*2 MIMO 1.2 Gbps  |
|
 Bandwidth  |
 20 MHz/40 MHz/80 MHz  |
|
 WLAN Basics  |
 Maximum number of clients per radio: 512 Virtual APs: 32 Open system/shared key authentication Broadcast probe request acknowledge control Concurrent login of WPA, WPA2,WPA3 and Pre-RSNA users RTS/CTS CTS-to-self 802.11k and 802.11v smart roaming 802.11r fast transition roaming Advanced Traffic Management Restrict low rate/sticky terminals access Channel reuse Receiver sensitivity adjustment Automatic channel/power/bandwidth adjustment Hide SSID Hotspot 2.0  |
|
 Security Policy  |
 WEP-64/128/152bit, dynamic WEP, TKIP, AES, EAP, CCMP , WPA3 Multiple triggering conditions for unicast and broadcast key update Support 802.11i 802.1X authentication, MAC authentication, PSK authentication, Portal authentication, PPSK Layer 2 user isolation SSID-based user isolation Packet filtering MAC address filtering Broadcast storm suppression Wireless EAD SSID and VLAN binding WIDS/WIPS  |
|
 AAA  |
 RADIUS client Multiple-domain authentication server Backup authentication server  |
|
 Layer 2 And Layer 3 Features  |
 IP address configuration: Static IP (available only in fat AP mode)/DHCP assigned IP (Option 60) IPV6: Native IPv6/IPv6 Portal/IPv6 SAVI ACL: IPv4/IPv6 Local forwarding based on SSID and VLAN Link Layer Discovery Protocol (LLDP) SSID-based VLAN assignment EoGRE Tunnel Multicast: IGMP Snooping/MLD Snooping  |
|
 QoS  |
 802.11e: Wi-Fi Multimedia (WMM) 802.1p priority and marking on Ethernet ports Priority mapping for wired and wireless packets SSID/VLAN and QoS policy mapping Layer 2 to Layer 4 packet filtering and traffic classification CAR Client bandwidth management Traffic-based load balancing Session-based load balancing Frequency-based load balancing (supports dual-band) Band navigation (5G priority) Multicast optimization (IPv4/IPv6) Call Admission Control (CAC) Airtime optimization Airtime fairness Layer 4-7 application identification SVP Phone  |
|
 Management And Maintenance  |
 AP Working Mode: Fit/Fat Network management:Trap, HTTP(S), SSH, Telnet, FTP/ TFTP, SNMP V1/V2/V3 only applicable in Fat mode Management SSID Syslog Remote Probing and analysis  |
