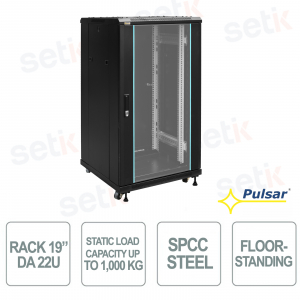

RS2266 - The 22U RACK 19" cabinet is a professional, ready-to-assemble floor-standing solution, ideal for integrating CCTV, LAN, RTV, AC and I&HAS systems in medium and large installations. It offers external dimensions of 600 × 1166 × 600 mm and a mounting depth of 360 mm , with adjustable front and rear RACK rails. The SPCC cold-rolled steel structure with RAL 9004 finish integrates a 5 mm tempered glass front door, removable side panels and a hinged rear door. It supports a static load of up to 1000 kg , has provision for ventilation , cable ducts, locks, 4 wheels and 4 leveling feet . Designed for indoor use, it guarantees IP20 protection and RoHS compliance. Pulsar

Technical data sheet

Artikel-Nr.: RS2266

Marke: Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

Das Unternehmen ist in Polen führend in diesem Sektor, ist aber in vielen Ländern Asiens und Europas präsent, und zwar so sehr, dass es sowohl in Bezug auf die Zahl der Verkäufe als auch die Zahl der neuen Märkte, auf denen es sich durchsetzt, wächst. Die Qualität der Produkte und der Service, der den Kunden geboten wird, sind die Stärken, die die Marke Pulsar so erfolgreich gemacht haben. Das Unternehmen achtet auf den Produktionsprozess und auf die Entwicklung neuer Forschungsmethoden, um einen Service zu garantieren, der stets den Bedürfnissen der Kunden entspricht. Pulsar erweitert ständig die Palette der angebotenen Produkte, die vom Zubehör für Alarmsysteme bis hin zu solchen für Videoüberwachungssysteme reicht. Zu den Vorschlägen von Pulsar gehören: Zubehör für Metallbehälter und für RACK-Stromversorgungen sowie Schränke und Zubehör für Schränke.

[short_description] =>

Accessori impianti allarme Pulsar

Seit 1994 zeichnet sich Pulsar durch die Herstellung von Zugangskontrollen sowie Zubehör und Komponenten für Alarm- und Videoüberwachungssysteme aus.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Alarm-Komponenten Pulsar [meta_keywords] => componenti pulsar,accessori pulsar ,armadi pulsar,allarmi pulsar ,controllo accessi pulsar [meta_description] => Pulsar ist ein Hersteller von Komponenten für Alarm- und aktive Zugangskontrollsysteme aus dem Jahr 1994. Entdecken Sie jetzt die große Auswahl an Pulsar-Zubehör, das online erhältlich ist! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

RS2266 | 22U 19" FLOOR-STANDING RACK CABINET

Dahua

The 22U Pulsar RS2266 19" RACK cabinet is a professional, ready-to-assemble floor-standing solution designed to integrate CCTV, LAN, RTV, AC and I&HAS systems . With external dimensions of 600 × 1166 × 600 mm and a mounting depth of 360 mm , it offers adjustable front and rear RACK rails. The sturdy SPCC RAL 9004 steel structure integrates a 5 mm tempered glass front door , removable side panels and a rear door. It supports a static load of up to 1000 kg and has pre-arranged ventilation, cable channels, 4 wheels and 4 leveling feet . For indoor installations it offers IP20 protection and RoHS compliance.

Main specifications:

  • Format: RACK 19" – 22U
  • Dimensions: 600 × 1166 × 600 mm
  • Depth: 360 mm
  • Static load: 1000 kg
  • Structure: SPCC steel
  • Door: 5mm tempered glass
  • Ventilation: RAWP ready
  • Mobility: 4 wheels + 4 feet
  • Protection: IP20
  • Compliance: RoHS

Further details

✅ Static load :
The Pulsar RS2266 RACK cabinet guarantees high support capacity, with a maximum static load of 1000 kg when installed on the levelling feet , making it suitable for housing professional equipment for CCTV, LAN, security and telecommunications .
✅ Structure:
Made of sturdy SPCC cold rolled steel , it integrates 2 mm RACK guides, 1.5 mm horizontal guides and 1.2 mm welded frame with RAL 9004 finish; it also features a 5 mm tempered glass front door , removable side panels and a hinged rear door.
✅ Ventilation:
Designed to promote proper air circulation , it features ventilation holes on the front door and on the top and bottom panels; the top panel also allows the installation of up to 2 RAWP fan units , improving the thermal management of the installed equipment.
✅ Mobility :
The cabinet is supplied with 4 non-locking castors , useful for making it easier to move during installation, and 4 levelling feet , designed to ensure stable positioning and allow the support of a static load of up to 1000 kg .

Technical data sheet

MODEL RS2266
Mounting dimensions 19" x 22U x 360 mm
Dimensions 600 x 855 x 600 [+/-2 mm]
distance from the substrate: 72 mm
Type Cabinets floor standing, self-assembly
Supported weight 1000kg - with leveling legs
Lock front door – lock (RAZ-S, same code)
rear door – lock (RAZ25, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, 2mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 1 year from date of manufacture
Attention - including 4 casters without brakes, 4 leveling legs
- possibility to move the door from left to right
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
