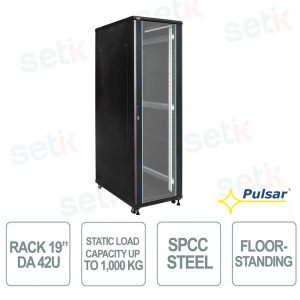

RS4261 - The 42U 19" RACK cabinet is a professional, ready-to-assemble floor-standing solution, ideal for integrating CCTV, LAN, RTV, AC and I&HAS systems in medium and large installations. With external dimensions of 600 × 2055 × 1000 mm and a mounting depth of 760 mm , it offers adjustable front and rear RACK rails. The SPCC RAL 9004 cold-rolled steel structure integrates a 5 mm tempered glass front door , removable side panels and a hinged rear door. It supports a static load of up to 1000 kg , has cable ducts, provision for up to 2 RAWP ventilation units , 4 wheels and 4 leveling feet. Designed for indoor use, it guarantees IP20 protection and RoHS compliance. Pulsar

Technical data sheet

Artikel-Nr.: RS4261

Marke: Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

Das Unternehmen ist in Polen führend in diesem Sektor, ist aber in vielen Ländern Asiens und Europas präsent, und zwar so sehr, dass es sowohl in Bezug auf die Zahl der Verkäufe als auch die Zahl der neuen Märkte, auf denen es sich durchsetzt, wächst. Die Qualität der Produkte und der Service, der den Kunden geboten wird, sind die Stärken, die die Marke Pulsar so erfolgreich gemacht haben. Das Unternehmen achtet auf den Produktionsprozess und auf die Entwicklung neuer Forschungsmethoden, um einen Service zu garantieren, der stets den Bedürfnissen der Kunden entspricht. Pulsar erweitert ständig die Palette der angebotenen Produkte, die vom Zubehör für Alarmsysteme bis hin zu solchen für Videoüberwachungssysteme reicht. Zu den Vorschlägen von Pulsar gehören: Zubehör für Metallbehälter und für RACK-Stromversorgungen sowie Schränke und Zubehör für Schränke.

[short_description] =>

Accessori impianti allarme Pulsar

Seit 1994 zeichnet sich Pulsar durch die Herstellung von Zugangskontrollen sowie Zubehör und Komponenten für Alarm- und Videoüberwachungssysteme aus.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Alarm-Komponenten Pulsar [meta_keywords] => componenti pulsar,accessori pulsar ,armadi pulsar,allarmi pulsar ,controllo accessi pulsar [meta_description] => Pulsar ist ein Hersteller von Komponenten für Alarm- und aktive Zugangskontrollsysteme aus dem Jahr 1994. Entdecken Sie jetzt die große Auswahl an Pulsar-Zubehör, das online erhältlich ist! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

RS4261 | 42U 19" FLOOR-STANDING RACK CABINET

Dahua

The 42U Pulsar RS4261 19" RACK cabinet is a professional, ready-to-assemble floor-standing solution, ideal for housing CCTV, LAN, RTV, AC and I&HAS systems in medium and large infrastructures. It offers external dimensions of 600 × 2055 × 1000 mm and a mounting depth of 760 mm , with adjustable front and rear RACK rails. The SPCC RAL 9004 cold-rolled steel structure integrates a 5 mm tempered glass front door , removable side panels and a rear door. It supports a static load of up to 1000 kg and has cable ducts, provision for up to 2 RAWP ventilation units , 4 wheels and 4 leveling feet. For indoor use it guarantees IP20 protection and RoHS compliance.

Main specifications:

  • Format: RACK 19" – 42U
  • Dimensions: 600 × 2055 × 1000 mm
  • Depth: 760 mm
  • Static load: 1000 kg
  • Structure: SPCC steel
  • Door: 5mm tempered glass
  • Ventilation: up to 2 RAWP
  • Mobility: 4 wheels + 4 feet
  • Protection: IP20
  • Compliance: RoHS

Further details

✅ Static load :
The Pulsar RS4261 RACK cabinet is designed to support a maximum static load of 1000 kg when installed on the levelling feet , offering high stability for professional CCTV, LAN, RTV equipment and security systems .
✅ Structure:
Made of sturdy SPCC cold-rolled steel , it features 2 mm RACK guides , 1.5 mm horizontal guides and a 1.2 mm welded frame with a RAL 9004 finish ; it also integrates a 5 mm tempered glass front door , removable side panels and a hinged rear door.
✅ Ventilation:
Thermal management is aided by ventilation holes on the front door and on the top and bottom panels; the top panel also allows the installation of up to 2 RAWP fan units , improving air circulation inside the RACK cabinet.
✅ Mobility :
The cabinet is supplied with 4 non-locking wheels , designed to facilitate movement during installation, and 4 levelling feet , which allow for stable positioning and correct support of the static load up to 1000 kg .

Technical data sheet

MODEL RS4261
Mounting dimensions 19" x 42U x 760 mm
Dimensions 600 x 2055 x 1000 [+/-2 mm]
distance from the substrate: 72 mm
Type Cabinets floor standing, self-assembly
Supported weight 1000kg - with leveling legs
Lock front door – lock (RAZ-S, same code)
rear door – lock (RAZ25, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, 2mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 1 year from date of manufacture
Attention - including 4 casters without brakes, 4 leveling legs
- possibility to move the door from left to right
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
