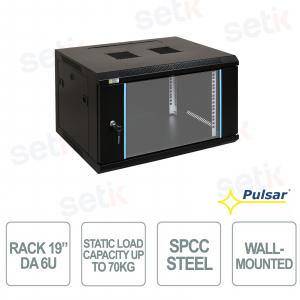

RW666 19" 6U 600x600 Wall-Mounted Rack Cabinet, 70 kg, Glass Door, IP20 - Pulsar

RW666 19" 6U 600x600 Wall-Mounted Rack Cabinet, 70 kg, Glass Door, IP20 - Pulsar

 
-58%

RW666 - The 19" 6U RACK cabinet is a fully assembled wall-mounted solution, designed to house CCTV, LAN, RTV, alarm and automation systems in indoor environments. The SPCC cold-rolled steel structure guarantees robustness and supports a static load of up to 70 kg , while the 5 mm tempered glass front door with lock protects the installed equipment. With external dimensions of 600 × 368 × 600 mm , it has adjustable RACK guides , upper and lower cable glands and ventilation provisions. The IP20 protection rating, reversible door opening and RoHS compliance complete a reliable solution for professional installations. Pulsar

Technical data sheet

Artikel-Nr.: RW666

Marke: Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

Das Unternehmen ist in Polen führend in diesem Sektor, ist aber in vielen Ländern Asiens und Europas präsent, und zwar so sehr, dass es sowohl in Bezug auf die Zahl der Verkäufe als auch die Zahl der neuen Märkte, auf denen es sich durchsetzt, wächst. Die Qualität der Produkte und der Service, der den Kunden geboten wird, sind die Stärken, die die Marke Pulsar so erfolgreich gemacht haben. Das Unternehmen achtet auf den Produktionsprozess und auf die Entwicklung neuer Forschungsmethoden, um einen Service zu garantieren, der stets den Bedürfnissen der Kunden entspricht. Pulsar erweitert ständig die Palette der angebotenen Produkte, die vom Zubehör für Alarmsysteme bis hin zu solchen für Videoüberwachungssysteme reicht. Zu den Vorschlägen von Pulsar gehören: Zubehör für Metallbehälter und für RACK-Stromversorgungen sowie Schränke und Zubehör für Schränke.

[short_description] =>

Accessori impianti allarme Pulsar

Seit 1994 zeichnet sich Pulsar durch die Herstellung von Zugangskontrollen sowie Zubehör und Komponenten für Alarm- und Videoüberwachungssysteme aus.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Alarm-Komponenten Pulsar [meta_keywords] => componenti pulsar,accessori pulsar ,armadi pulsar,allarmi pulsar ,controllo accessi pulsar [meta_description] => Pulsar ist ein Hersteller von Komponenten für Alarm- und aktive Zugangskontrollsysteme aus dem Jahr 1994. Entdecken Sie jetzt die große Auswahl an Pulsar-Zubehör, das online erhältlich ist! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


RW666 | 6U 19" WALL-MOUNTED RACK CABINET

Dahua

The Pulsar RW666 19" 6U RACK cabinet is designed for wall-mounted installation of CCTV, LAN, RTV, alarm systems and professional devices compatible with the 19" standard. Made of SPCC cold-rolled steel , it supports a static load of up to 70 kg and has external dimensions of 600 × 368 × 600 mm . The 5 mm tempered glass front door with lock ensures protection and controlled access to the equipment. The adjustable RACK guides , the upper and lower cable glands and the ventilation provisions promote a tidy and functional installation. The cabinet is fully assembled , has IP20 protection and is compliant with the RoHS directive.

Main specifications:

  • Format: 19", 6U
  • Dimensions: 600 × 368 × 600 mm
  • Static load: 70 kg
  • Structure: SPCC steel
  • Door: 5mm tempered glass
  • Ventilation: 2 x 105 x 105 mm
  • Protection: IP20
  • Compliance: RoHS

Further details

✅ Static load :
The Pulsar RW666 RACK cabinet supports a maximum static load of 70 kg , offering adequate capacity for the installation of CCTV, LAN, RTV, alarm systems and standard 19" professional devices .
✅ Structure:
The frame is made of SPCC cold-rolled steel , with 1.5mm rails and mounting plate and 1.2mm body and side panels; the 5mm tempered glass front door with lock ensures protection and easy access.
✅ Ventilation:
The top panel integrates 2 105 × 105 mm ventilation cutouts , designed to allow the installation of ventilation systems and promote correct thermal management of the equipment present in the 6U RACK .
✅ Mobility :
The RW666 model is designed primarily for wall mounting and the PDF does not indicate wheels or specific handling systems; however, it does offer adjustable front and rear RACK rails and a reversible door that opens to the right or left , increasing the flexibility of installation and use.

Technical data sheet

MODEL RW666
Mounting dimensions 19" x 6U x 447 mm
Dimensions 600 x 368 x 600 [+/-2 mm]
Supported weight 70kg
Lock front door – lock (RAZ25, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 2nd year
Attention - possibility to move the door from left to right
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
