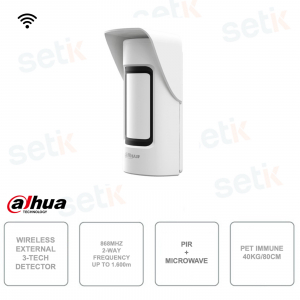

Dahua Triple Technology Wireless Sensor with Video Verification and Anti-masking

Dahua Triple Technology Wireless Sensor with Video Verification and Anti-masking

BEST PRICE -35%

The ARD2251E-W2-868 is a triple-technology wireless outdoor detector with PIR , microwave , and optical technology , designed to detect motion with maximum precision while eliminating false alarms caused by pets or environmental changes. It guarantees coverage of up to 15 meters at a 90° angle, is tamper-resistant, and supports anti-masking. It integrates the PoE Watchdog function, stable two-way communication up to 1600 meters, and the possibility of cloud updates via mobile app. With the optional camera module, it also allows real-time video verification. Dahua

Technical Data Sheet

Artikel-Nr.: ARD2251E-W2-868

Marke: Dahua

EAN: 6923172509109

Disponibilità: 12

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ARD2251E-W2-868 | TRIPLE TECH PIR + MICROWAVE DETECTOR - 15M RANGE - 868MHZ TWO-WAY WIRELESS - PET IMMUNE 40KG


Dahua

The Dahua ARD2251E-W2-868 sensor is a triple-technology outdoor wireless detector that combines passive infrared (PIR), microwave, and advanced optics to ensure precise motion detection with reduced false alarms, even in the presence of pets weighing up to 40 kg. It offers a wide coverage range of up to 15 meters, resists tampering thanks to the anti-masking function, supports remote cloud updates, and ensures stable communication up to 1600 meters thanks to frequency hopping. It is compatible with the optional camera module for real-time video verification.

Main specifications:

- PIR + microwave + optical detection up to 15 m

- Anti-masking and tamper detection

- Two-way communication up to 1600 m

- Immunity to animals up to 40 kg

- Cloud updates and optional video verification

Further details

Triple technology:
The Dahua ARD2251E-W2-868 detector uses an advanced system with PIR, microwave and intelligent optics technology, ensuring extremely precise detection even in complex environments and minimizing false alarms caused by animals or environmental changes.
3 PIR levels :
The sensitivity of the PIR sensor is adjustable on three levels, allowing effective customization of detection based on the usage scenario, both indoors and outdoors.
Anti-masking and tamper detection :
It is equipped with anti-masking protection and tamper alarm, detecting attempts to cover or manipulate and ensuring the safety of the device in any condition.

Two-way communication:
Thanks to frequency-hopping wireless technology and AES128 encryption, the sensor communicates stably up to 1600 meters in open spaces and supports remote updates via the cloud.
Pet Immune:
It offers pet immunity up to 40 kg and 80 cm in height, making it ideal for residential areas without generating false alarms due to the movement of dogs or cats.
Wireless:
It works completely wirelessly with a CR123A battery and lasts up to 5 years without a camera, ensuring maximum installation flexibility and reduced maintenance.
ARD2251E-W2-868 dimensions

Technical data sheet

ARD2251E-W2-868

Function

Indicator Light

1 × green alarm indicator

Button

1 × power switch;
1 × detection range adjustment switch

Remote Update

Cloud update

Low Battery Detection

Yes

Tamper

Tamper alarm

Moving detection

Yes

Technical

Detection Mode

PIR + Microwave

Sensitivity

PIR: 3 levels adjustable

Detection Range

Angle: 90°
Range:15 m (49.21 ft), the installation height is 1 m (3.28 ft)

Detection Speed

0.3 m/s–2 m/s

Microwave Frequency

24 G

Pet Immunity Level

White Light Resistance Level

10,000 lux

Anti-masking

Yes

Two-way Digital Temperature Compensation

Yes

Scenario

Outdoor, indoor

Operating Current

20 uA

Alarm Current

Without Camera: 26mA (Avg); 250mA (Max)
With Camera in Night: 380 mA (Avg); 1.5A (Max)

Wireless

Carrier Frequency

868.0 MHz–868.6 MHz

Transmitter Power (EIRP)

Limit 25 mW

Communication Mechanism

Two-way

Communication Distance

RF: Up to 1,600 m (5,249.34 ft) in an open space

Encryption Mode

AES128

Frequency Hopping

Yes

General

Power Supply

CR123A × 4

Battery Life

Without Camera: 5 years (triggers 10 alarms a day)
With Camera: 3.5 years (triggers alarms twice a week)

Operating Temperature

–25 °C to +60 °C (–13 °F to +140 °F)

Operating Humidity

10%–90% (RH)

Product Dimensions

211 mm × 106 mm × 94 mm (8.31" × 4.17" × 3.7")

Installation Height

0.8 to 1.3 m

Net Weight

651 g (1.44 lb)

Gross Weight

890 g (1.96 lb)

Installation

Wall mount, pole mount

Casing Material

PC + GF

Protection

IP66

Certifications

THERE IS

Anti-corrosion Level

Basic Protection

Storage Temperature

–25 °C to +60 °C (–13 °F to +140 °F)

Packaging Dimensions

251 mm × 116 mm × 119 mm (9.88" × 4.57" × 4.69”)
