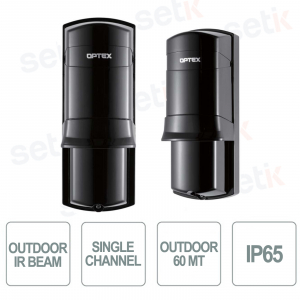

Doppelstrahl-Infrarotbarriere für den Außenbereich, 60 m Reichweite – Kabel – IP65 – Optex

Doppelstrahl-Infrarotbarriere für den Außenbereich, 60 m Reichweite – Kabel – IP65 – Optex

-32%

Doppelstrahl-Infrarotbarriere für den Außenbereich mit 60 m Reichweite. Strahlunterbrechungszeit einstellbar auf 50, 100, 250 und 500 ms – Schutzart IP65. - AX-200TN



Artikel-Nr.: AX-200TN

Marke: Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Entdecken Sie alle optex-Produkte im umfangreichen Katalog der Außensensoren. Sie finden optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. Die ganze Welt der Optex Einbruchmeldeanlagen

[short_description] =>

Optex

OPTEX ist Hersteller und weltweit führend in der Hochleistungs-Sensortechnologie. Seit mehr als 40 Jahren auf dem Markt, hat Optex Tausende von Kunden auf der ganzen Welt, die sie jeden Tag für ihre zuverlässigen Detektionssysteme wählen.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex einbruchsicherungssensoren, optex katalog, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

VERKABELTE DOPPELSTRAHL-INFRAROTSTRAHLEN-BARRIERE FÜR DEN AUSSENBEREICH – 60 M REICHWEITE – IP65

Barriera a doppio fascio a infrarossi

Produktdetails

  • Doppelte Infrarot-Strahlenschranke
  • Filial
  • Reichweite 60 m im Freien
  • Strahlunterbrechungszeit einstellbar auf 50, 100, 250 und 500 ms
  • Verbrauch: 45mA
  • Stromversorgung: 10,5 - 28 V Gleichstrom
  • Arbeitstemperatur: -35 °C ~ +60 °C
  • Schutzart IP65
  • Abmessungen: 170 x 65 x 70 mm


Technisches Datenblatt

Modell AX-200TN
Erkennungsmethode Erkennung von Unterbrechungen des Infrarotstrahls
Maximaler Erfassungsbereich 60 m (200 Fuß)
Maximale Ankunftsreichweite 600 m (2000 Fuß)
Unterbrechungszeitraum Wählbar zwischen 50, 100, 250 und 500 m Sek.
Wählbare Strahlfrequenz NEIN
Stromversorgung 10,5 - 28 V Gleichstrom
Stromverbrauch (Sender + Empfänger) 45mA (max.)
Alarmzeitraum 2 Sek. (±1) nominal
Alarmausgang NC 28 V DC, 0,2 A (max.)
DQ-Ausgabe NEIN
Manipulationsschalter Öffnet sich, wenn die Abdeckung entfernt wird, bei 28 V DC, 0,2 A max
Betriebstemperaturen -35 °C bis +60 °C (-31 °F bis +140 °F)
Verwenden Sie die optionale Heizeinheit (HU-3) bei Temperaturen von -25 °C (-13 °F) oder darunter.
Betriebsfeuchtigkeit 95 % (maximal)
Ausrichtungswinkel ± 90° horizontal, ± 5° vertikal
Montage Wand- und Mastmontage
Gewicht 650 g (22,9 Unzen)
IP-Schutzart IP65

Downloads

Broschüre nicht verfügbar
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
