116768.306.WH1 | WIRELESS PIR MOTION DETECTOR WITH ANTI-MASKING SYSTEM AND EXTENDED PHOTO VERIFICATION - HD RESOLUTION

Ajax

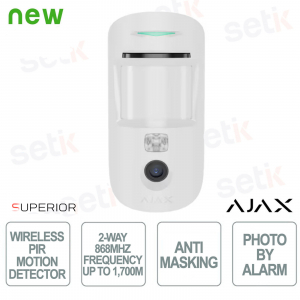

Ajax Superior MotionCam AM (PhOD) Jeweller, 116768.306.WH1, white is a professional wireless PIR motion detector with anti-masking system and advanced photo verification , designed to increase security with detailed images and reliable radio communication. It supports HD photos up to 960×720 px , sent in series of 1 to 5 images , with the first delivery in approximately 4.5 s , including IR and HDR illumination for clear shots even in difficult lighting conditions. Thanks to Jeweller and TurboWings technologies, it offers a range of up to 1,700 m , data encryption and protection against interference and jamming. Detection covers up to 12 m with a 92° angle, three sensitivity levels and temperature compensation, while the structure integrates anti-sabotage protection with tamper and device authentication.

Main specifications:

- Advanced anti-masking with obstacle detection in front of the lens and adjustable sensitivity levels

- 960×720 px HD photos with HDR and IR illumination for clear images even in the dark

- Quick photo sending: first image in about 4.5 seconds and series of 1 to 5 photos

- Jeweller + TurboWings communication up to 1,700 m, data encryption and anti-jamming

- Motion detection up to 12 m with 92° angle and temperature compensation

- Anti-sabotage protection with tamper, fixing screw and anti-spoofing authentication

Further details

✅ Jeweler Connection :
It ensures stable and secure radio transmission up to 1,700 m in open space, with data encryption , regular polling for device status and frequency hopping to reduce interference and jamming attempts, making the alarm always reliable even in complex environments.
✅ Wings Connection :
 Optimizes the sending of images for photo verification , improving transmission speed and continuity, so as to obtain photos more quickly and consistently even with variable radio signal, increasing the effectiveness of real-time visual verification.
✅ Detection:
It detects motion up to 12m with a 92° angle, integrates temperature compensation to maintain consistent performance and reduces the blind zone under the sensor by up to 80cm , offering more complete and precise coverage, with adjustable sensitivity levels to suit the site.
✅ Photo-verification (PhOD):
Supports HD photos up to 960×720 px with 1–5 images sent per event and first delivery in approximately 4.5 s , including IR illumination for low light and HDR for exposure smoothing, with the ability to shoot on demand , for alarm, masking, tamper, scene, arm/disarm and schedule.
✅ Sabotage Resistance:
It integrates anti-masking with obstacle detection in front of the lens (covering, painting or shielding), anti-opening and anti-tear tamper , as well as device authentication to prevent spoofing, increasing resistance to tampering and targeted attacks.
✅ Power supply:
It runs on 2 pre-installed CR123A batteries and offers up to 4 years of battery life (up to 3 years with Photo on Demand enabled), with low battery notifications to ensure uptime and preventative maintenance in professional environments.

Technical data sheet

116768.306.WH1
Communication
Jeweler communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Frequency bands 868.0–868.6 MHz
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Radio signal range up to 1,700 m
up to 5,600 ft
Between detector and control panel (or range extender) in an open space.
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Wings communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Block encryption featuring a dynamic key.
  • Advanced sabotage protection.
  • Reloading the data packages in case of transmission errors
  • Remote configuration via the Ajax apps.
Frequency bands 868.0–868.6 MHz
Radio signal range up to 1,700 m
up to 5,600 ft
Between detector and control panel (or range extender) in an open space.
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Detection
Sensitive element PIR sensor
Motion detection distance up to 12 meters
up to 39 ft
When installed at the height of 2.4 meters
When installed at the height of 7.9 ft
Reduced blind zone from 80 cm
from 2.6 ft
It detects a person standing at a distance of 80 cm from the device when the detector is properly installed at a height of 2.4 m. Does not depend on the sensitivity level. Testing was performed with a person of 175 cm height.
It detects a person standing at a distance of 2.6 ft from the device when the detector is properly installed at a height of 7.9 ft. Does not depend on the sensitivity level. Testing was performed with a person of 5.74 ft height.5.74
Crawling detection zone from 2 m (TBC)
from 6.56 ft (TBC)
Detects a person crawling at a distance of 2 m from the device when the detector is properly installed at a height of 2.4 m.
The test results may be updated
Detects a person crawling at a distance of 6.56 ft from the device when the detector is properly installed at a height of 7.9 ft
The test results may be updated.
Motion detection angles horizontal: 92°
Motion detection speed from 0.2 to 2.0 m/s
from 0.66 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the room
Sensitivity 4 levels
Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
False alarm prevention SmartDetect
Software algorithm
Temperature compensation Effective motion detection at temperatures
from −10°C to +40°C.
from 14°F to 104°F.
Photo verification
Photo by alarm The built-in camera is activated if the detector is armed and motion is detected.
Photo on demand The user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default.
Photo by scenario The detector's camera takes pictures automatically when other Ajax detectors are triggered. The feature is disabled by default
Photo by schedule The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher.
Photo by arming/disarming The detector automatically takes photos when the security state is changed.
Adjustable photo resolution 960 × 720 px*
640 × 480 px (default)
320 × 240 px
160 × 120 px
Adjusted by a PRO or user with admin rights in the Ajax app
* The firmware version confirmation is required. First photo delivery in 15.5 seconds with TurboWings protocol.
IR illumination For photography at night and in low-light conditions.
Series of pictures from 1 to 5 images with a resolution of 320 × 240 px or 160 × 120 px
from 1 to 3 images with a resolution of 640 × 480 px or 960 × 720 px*
Adjusted by a PRO or user with admin rights in an Ajax app
* The firmware version confirmation is required. First photo delivery in 15.5 seconds with TurboWings protocol
Photo delivery up to 3 s — 160 × 120 px resolution
up to 4.5 s — 320 × 240 px resolution
up to 11 s — 640 × 480 px resolution
up to 15.5 s — 960 × 720 px resolution
Photo delivery time depends on the image resolution selected in the device settings
Recommendations It is recommended to install the detector at the height of 2.4 meters.
It is recommended to install the detector at a height of 7.9 ft.
The device is designed for indoor use only.
Sabotage protection
Tamper alarm 1 tamper
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel
Protection against forgery devices authentication
Anti-masking system detects attempts to block the detector view
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings
Power supply
Battery 2 × CR123A
Pre-installed.
Type Type C
Calculated battery life up to 4 years
Detector's operating voltage range 4.2−6.2 V⎓
Detector's nominal operating voltage 6 V⎓
Quiescent detector's current consumption at nominal voltage 0.040 mA
Maximum detector's current consumption at nominal voltage 400 mA
Full capacity 3,300 mAh
Low battery voltage 4.85 V⎓
Low battery recovery voltage 4.9 V⎓
End-of-life battery voltage 4.2 V⎓
Device is switched off
End-of-life battery capacity 600 mAh
Enclosure
Color White
Dimension 134 × 70 × 59 mm
5.28" × 2.74" × 2.33"
Weight 176 g
6.21 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75% non-condensing
Casing protection class IP50
Complete set Superior MotionCam AM (PhOD) Jeweller
SmartBracket mounting panel with holding screw
Installation kit
Quick start guide
Warranty 24 months
